Baugruppe

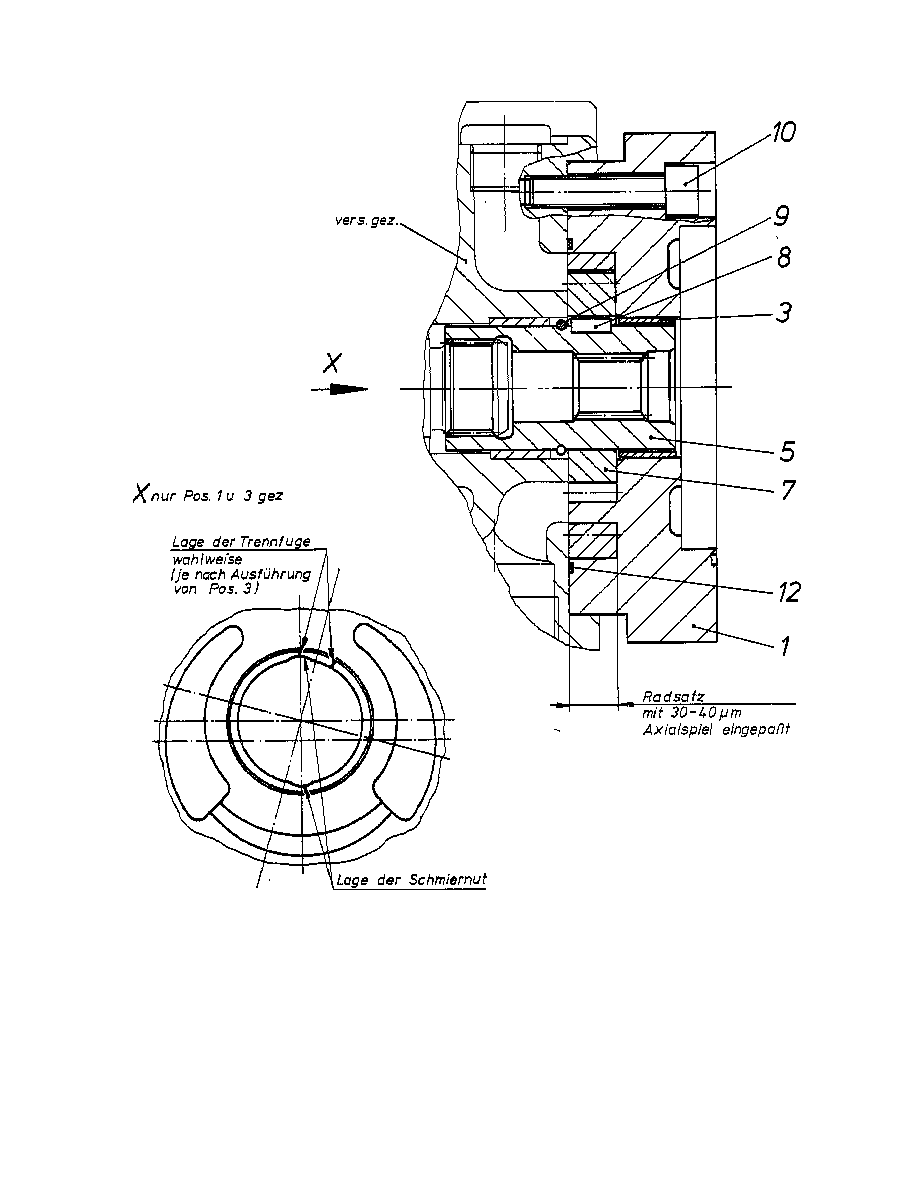

INTERNAL GEAR PUMPR909442794
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909443570 | INTERMEDIATE FLANGE | 1 | |
| 3 | R902260545 | BUSHING | 1 | |
| 5 | R909650395 | THROUGH DRIVE SHAFT | 1 | |
| 7 | R902006254 | WHEEL SET | 1 | |
| 8 | R902025645 | PARALLEL KEY | 1 | |
| 9 | R913057533 | SNAP RING | 1 | |
| R909154979 | SOCKET HEAD CAP SCREW | 4 | ||
| 12 | R913037188 | KANTSEALD | 1 |
