Baugruppe

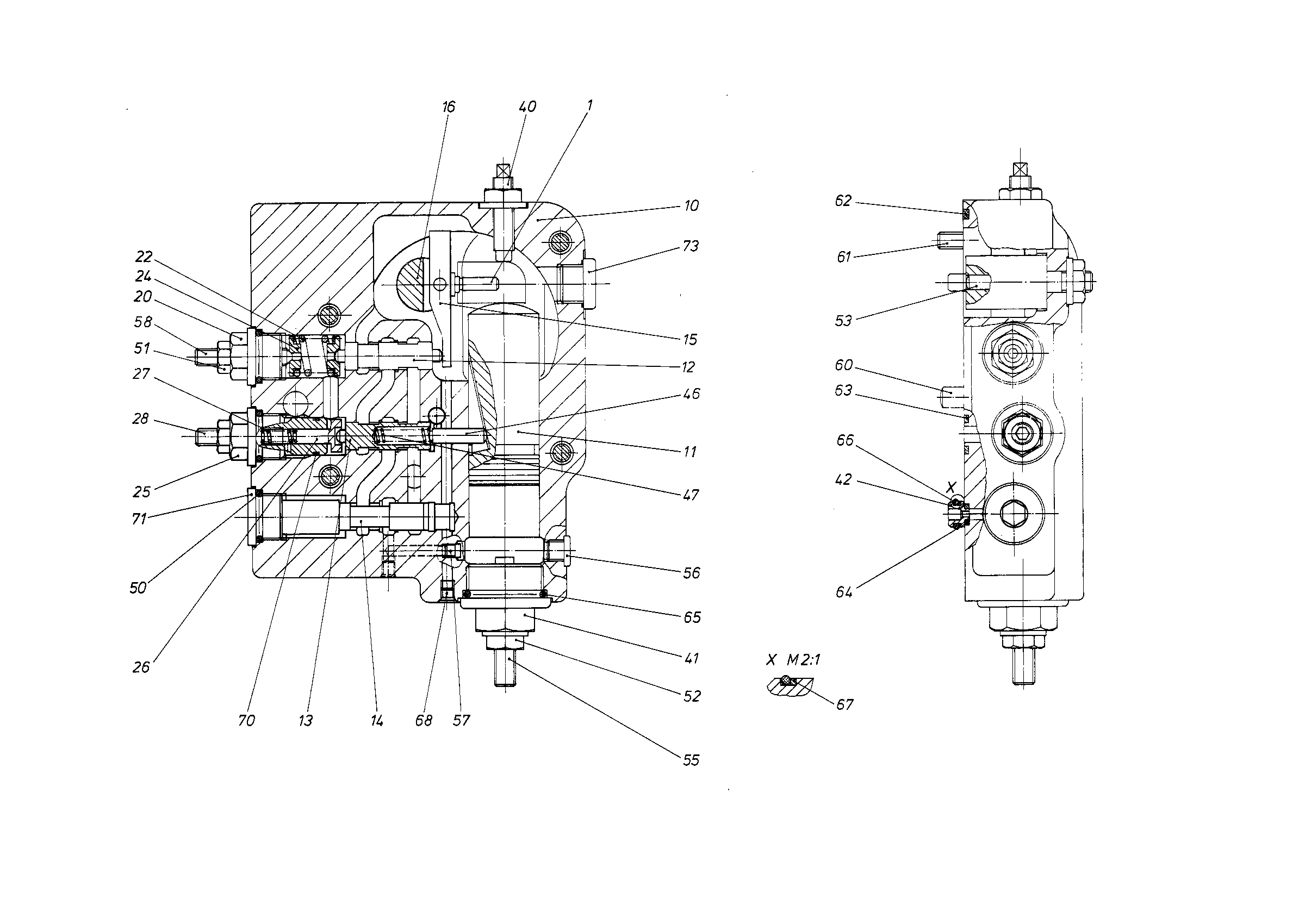

REGULATORR909442869
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909423104 | PISTON PAD | 1 | ||
| R909435618 | CONTROL HOUSING | 1 | ||
| 11 | R909419260 | PISTON | 1 | |
| R909425849 | CONTROL PISTON | 1 | ||
| R909440188 | CONTROL PISTON | 1 | ||
| 14 | R909425580 | LOCKING BOLT | 1 | |
| R909430912 | LEVER | 1 | ||
| R909432197 | ECCENTRIC | 1 | ||
| R909408860 | SCREW PLUG | 1 | ||
| R909431610 | COMPRESSION SPRING | 1 | ||
| R909408853 | SPRING DISK | 2 | ||
| R909431687 | SCREW PLUG | 1 | ||
| R909431688 | CONTROL PISTON | 1 | ||
| R909431934 | COMPRESSION SPRING | 1 | ||
| R909419259 | SETSCREW | 1 | ||
| R909419266 | SETSCREW | 1 | ||
| 41 | R909419268 | SCREW PLUG | 1 | |
| R909435015 | SEAL BUSHING | 1 | ||
| R909419257 | PIN | 1 | ||
| R909419274 | COMPRESSION SPRING | 1 | ||
| R909083758 | O-RINGD | 3 | ||
| 51 | R909152707 | SEALING NUTD | 2 | |
| 52 | R909152426 | SEALING NUTD | 3 | |
| 53 | R909157042 | STRAIGHT PIN | 1 | |
| R909086752 | SETSCREW | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| 57 | R909156494 | NOZZLE | 1 | |
| R909153555 | SETSCREW | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| 61 | R909083065 | SOCKET HEAD CAP SCREW | 4 | |
| R909086949 | O-RINGD | 1 | ||
| R909086729 | O-RINGD | 1 | ||
| R909157512 | O-RINGD | 1 | ||
| R909830076 | O-RINGD | 1 | ||
| R909085709 | O-RINGD | 1 | ||
| 67 | R909087062 | BACKUP RINGD | 1 | |
| 68 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| R909083734 | O-RINGD | 1 | ||
| R909083225 | SCREW PLUG | 1 | ||
| R909153815 | SCREW PLUGD | 1 |
