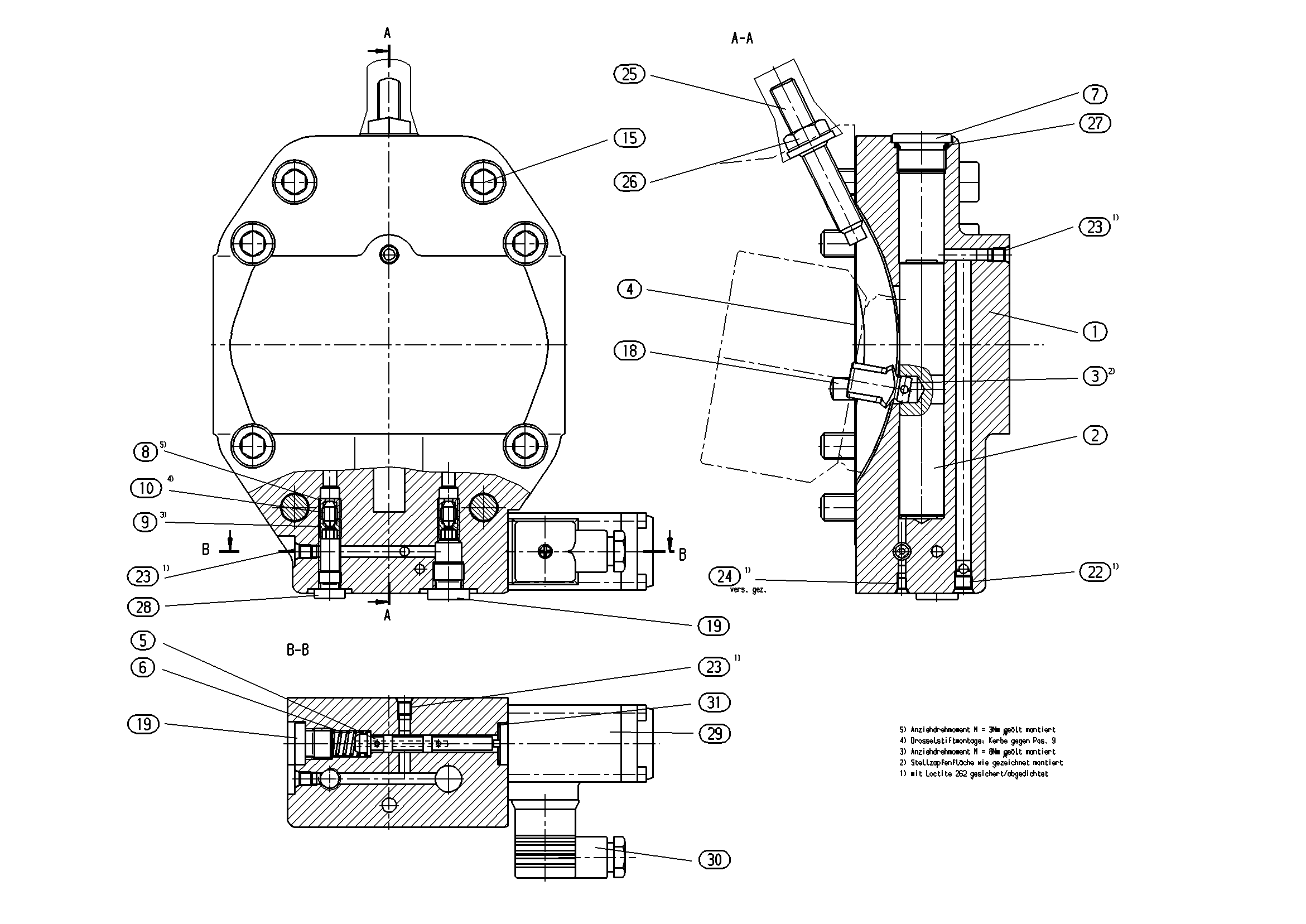

Baugruppe
CONTROLR909446063
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909444888 | COVER PLATE | 1 | |
| R909443650 | POSITIONING PISTON | 1 | ||
| R909650146 | POSITIONING STUD | 1 | ||
| R902011853 | SEALD | 1 | ||
| 5 | R909444893 | CONTROL PISTON | 1 | |
| R909432802 | COMPRESSION SPRING | 1 | ||
| R909443868 | SCREW PLUG | 1 | ||
| R909400263 | THROTTLE SCREW | 2 | ||
| R909400264 | THROTTLE SCREW | 2 | ||
| R902067256 | THROTTLE PIN | 2 | ||
| R909083097 | SOCKET HEAD CAP SCREW | 8 | ||
| 18 | R913009669 | STRAIGHT PIN | 2 | |
| R909151979 | SCREW PLUGD | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909831316 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909446862 | SETSCREW Stückliste der Baugruppe →L | 1 | ||
| R909152459 | SEALING NUTD | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909428265 | SWITCHING SOLENOID Stückliste der Baugruppe →L | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R909083734 | O-RINGD | 1 |
