Baugruppe

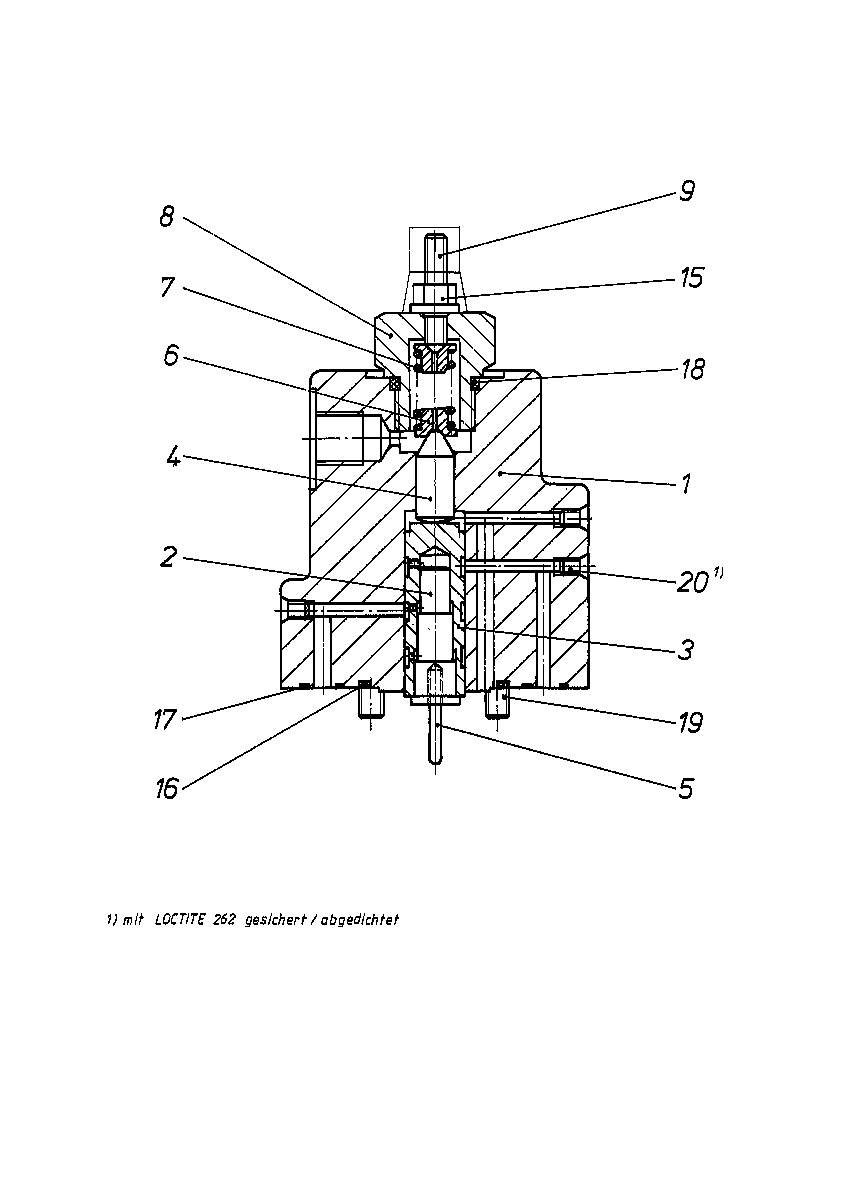

CONTROL UNITR909446220
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909445073 | CONTROL HOUSING | 1 | |
| 2 | R909445072 | CONTROL PISTON | 1 | |
| 3 | R909445071 | CONTROL SLEEVE | 1 | |
| 4 | R909436378 | POSITIONING PISTON | 1 | |
| 5 | R909431195 | PIN | 1 | |
| 6 | R909430649 | SPRING DISK | 2 | |
| R909430587 | COMPRESSION SPRING | 1 | ||
| 8 | R909436380 | SCREW PLUG | 1 | |
| 9 | R909420991 | SETSCREW | 1 | |
| 15 | R909152425 | SEALING NUTD | 1 | |
| R909086730 | O-RINGD | 1 | ||
| 17 | R909086498 | O-RINGD | 2 | |
| R909083757 | O-RINGD | 1 | ||
| R909085701 | SOCKET HEAD CAP SCREW | 4 | ||
| 20 | R909831317 | DOUBLE BREAK-OFF PLUG | 2 |
