Baugruppe

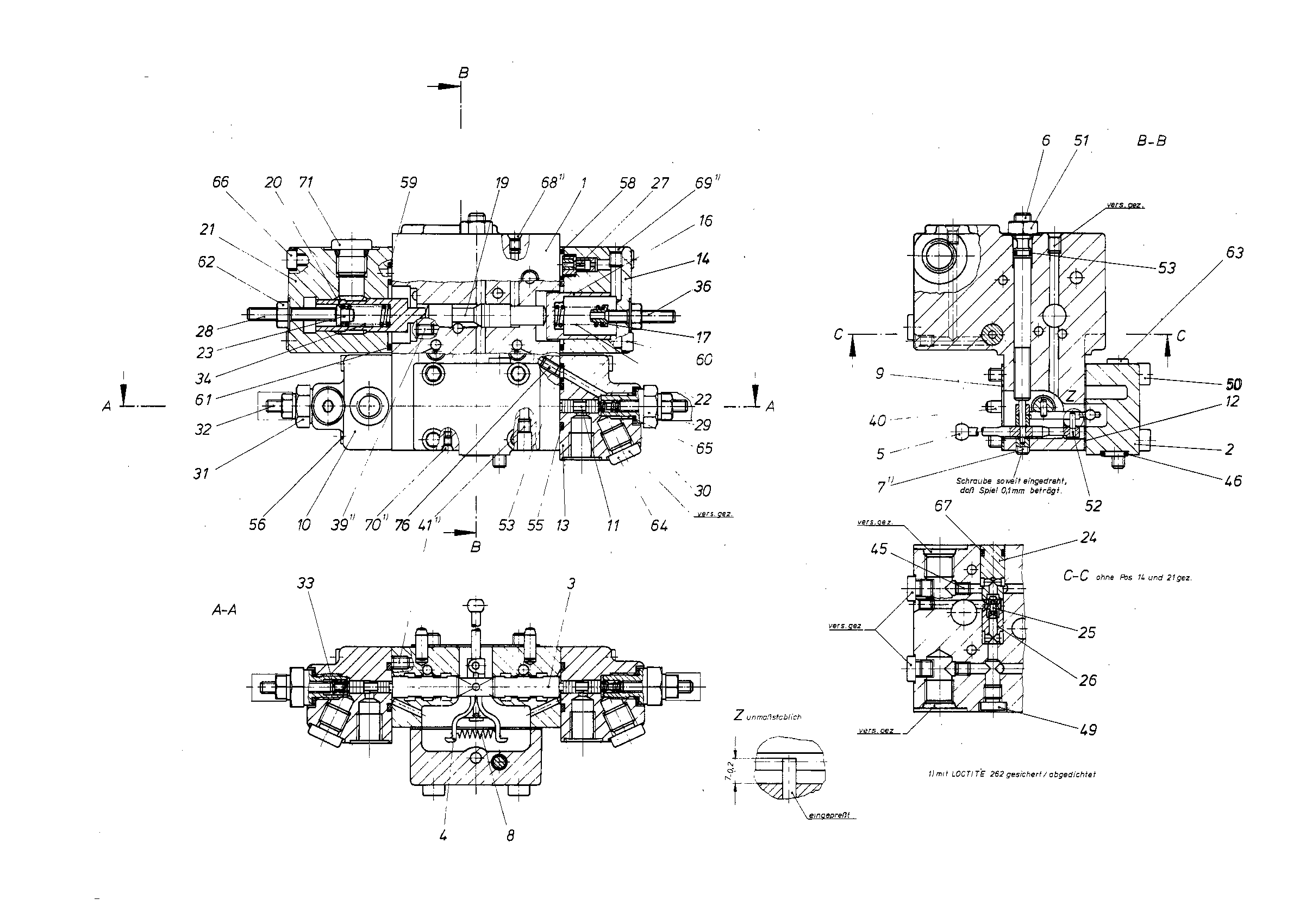

CONTROL MODULER909446910
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909445454 | HOUSING | 1 | ||
| 2 | R909921162 | CONNECTION COVER | 1 | |
| R909443952 | CONTROL PISTON | 1 | ||
| R909417155 | LEVER | 2 | ||
| R902156530 | FEEDBACK LEVER | 1 | ||
| R909443618 | ECCENTRIC PIN | 1 | ||
| R902016196 | SETSCREW | 1 | ||
| 8 | R909445464 | EXTENSION SPRING | 1 | |
| R902603829 | SEALD | 1 | ||
| 10 | R909445797 | HOUSING | 1 | |
| 11 | R909445460 | PISTON | 2 | |
| 12 | R902603830 | SEALD | 1 | |
| R909445798 | HOUSING | 1 | ||
| R909444612 | HOUSING | 1 | ||
| R909444582 | SPRING BUSH | 1 | ||
| 17 | R909445334 | SPRING DISK | 1 | |
| R909445397 | PISTON | 1 | ||
| 20 | R909445332 | DIFFERENTIAL PISTON | 1 | |
| R909445413 | HOUSING | 1 | ||
| R909415999 | COMPRESSION SPRING | 1 | ||
| 23 | R909445334 | SPRING DISK | 1 | |
| R909443616 | VALVE HOUSING | 1 | ||
| R909443060 | VALVE PIN | 1 | ||
| R909443617 | VALVE HOUSING | 1 | ||
| 27 | R909442810 | THROTTLE VALVE Stückliste der Baugruppe →L | 1 | |
| R909445333 | SETSCREW | 1 | ||
| R909425055 | COMPRESSION SPRING | 2 | ||
| 31 | R909445465 | SCREW PLUG | 2 | |
| R909445468 | SETSCREW | 2 | ||
| R909412841 | WASHER | 2 | ||
| 34 | R909415999 | COMPRESSION SPRING | 1 | |
| R909414604 | SETSCREW | 1 | ||
| 39 | R909150818 | SETSCREW | 1 | |
| 40 | R913009677 | STRAIGHT PIN | 2 | |
| 41 | R909083490 | SETSCREW | 4 | |
| R909156494 | NOZZLE | 2 | ||
| R902600655 | O-RINGD | 1 | ||
| R909154024 | SCREW PLUGD | 4 | ||
| 50 | R909830040 | SOCKET HEAD CAP SCREW | 4 | |
| 51 | R909083612 | HEXAGON NUT | 1 | |
| 53 | R909086380 | O-RINGD | 5 | |
| 55 | R909083737 | O-RINGD | 2 | |
| R909083005 | SOCKET HEAD CAP SCREW | 8 | ||
| 58 | R909083749 | O-RINGD | 1 | |
| R909086380 | O-RINGD | 1 | ||
| R909083015 | SOCKET HEAD CAP SCREW | 4 | ||
| 61 | R909083764 | O-RINGD | 2 | |
| R909152425 | SEALING NUTD | 4 | ||
| 63 | R909083027 | SOCKET HEAD CAP SCREW | 1 | |
| 64 | R909151692 | SCREW PLUGD | 2 | |
| R909086332 | O-RINGD | 2 | ||
| R909085699 | SOCKET HEAD CAP SCREW | 4 | ||
| R909086498 | O-RINGD | 1 | ||
| 68 | R909831317 | DOUBLE BREAK-OFF PLUG | 7 | |
| 69 | R909831318 | DOUBLE BREAK-OFF PLUG | 5 | |
| 70 | R900078091 | DOUBLE BREAK-OFF PLUG | 1 | |
| 71 | R909153371 | SCREW PLUGD | 1 | |
| 76 | R909150818 | SETSCREW | 2 |
