Baugruppe

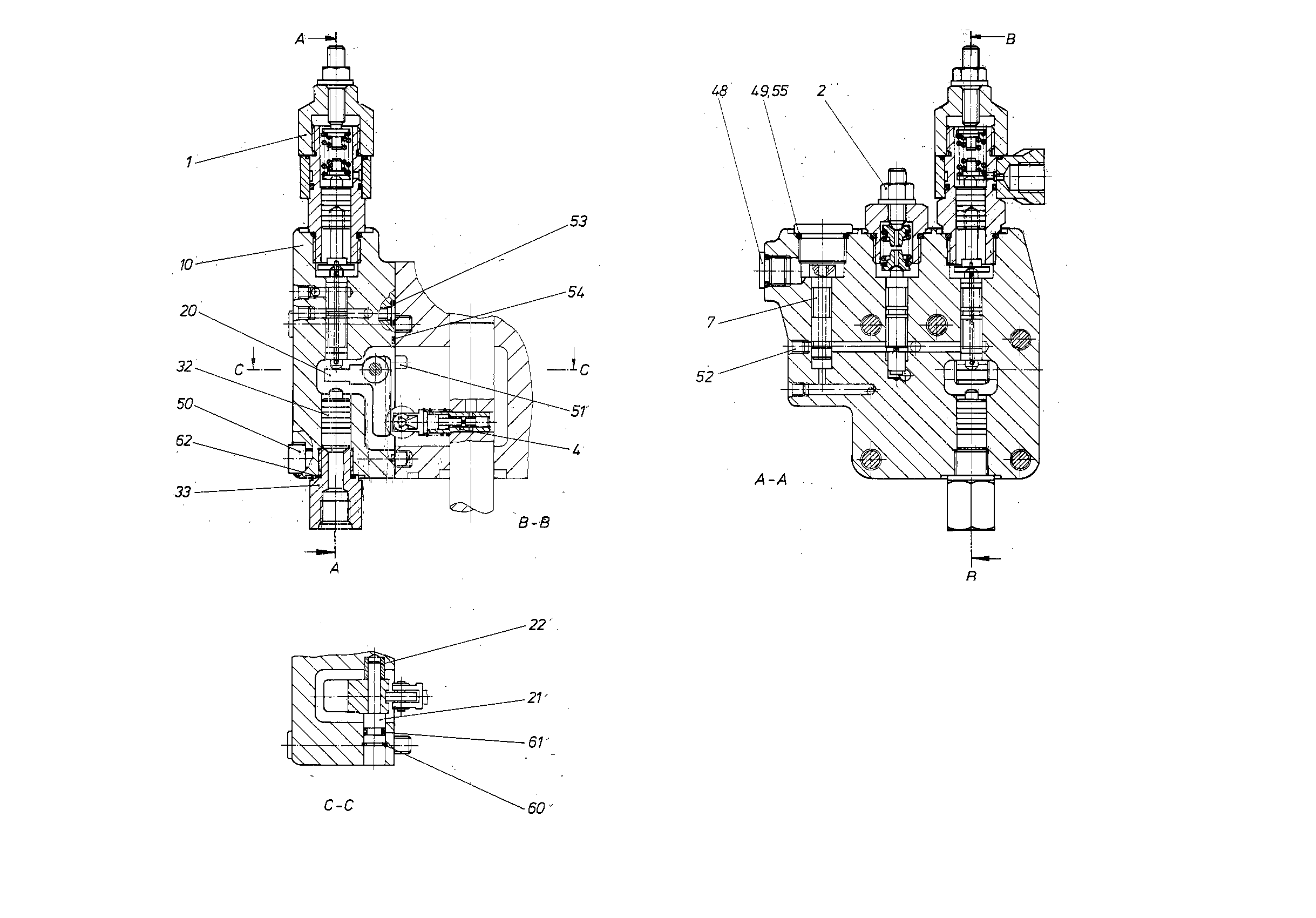

REGULATORR909447285
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902229789 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| 2 | R909447278 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | |
| R909447093 | MEASURING PISTON Stückliste der Baugruppe →L | 1 | ||
| 7 | R909431326 | LOCKING BOLT | 1 | |
| R909443467 | CONTROL HOUSING | 1 | ||
| R909445893 | ANGLE LEVER | 1 | ||
| 21 | R909431281 | BEARING BOLT | 1 | |
| R909431286 | BUSHING | 1 | ||
| R909440423 | CONTROL PISTON | 1 | ||
| 33 | R909443468 | THREADED REDUCING STUD | 1 | |
| R909153371 | SCREW PLUGD | 1 | ||
| 49 | R909083225 | SCREW PLUG | 1 | |
| 50 | R909083044 | SOCKET HEAD CAP SCREW | 5 | |
| 51 | R913009676 | STRAIGHT PIN | 2 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R909157512 | O-RINGD | 3 | ||
| R902600656 | O-RINGD | 1 | ||
| 55 | R909083758 | O-RINGD | 1 | |
| R909087248 | RETAINING RING | 1 | ||
| 61 | R913045130 | O-RING | 1 | |
| 62 | R900012468 | SEAL RINGD | 1 | |
| 98 | R902002478 | SEAL KIT | 1 |
