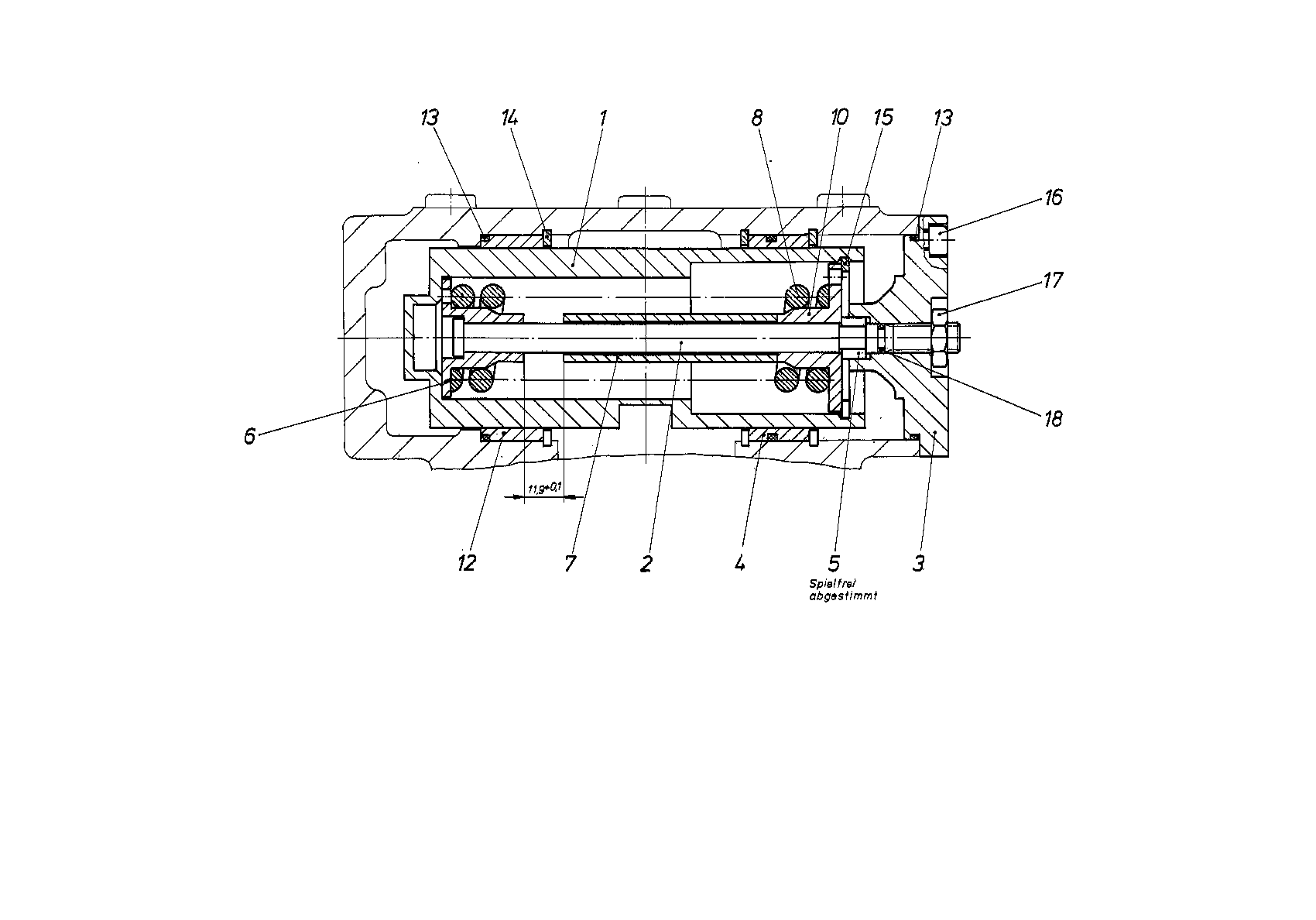

Baugruppe
CONTROLR909447308
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909445271 | POSITIONING PISTON | 1 | ||
| R909445290 | ROD | 1 | ||
| R909445236 | COVER | 1 | ||
| 4 | R909445439 | BUSHING | 2 | |
| R909436219 | RING | 1 | ||
| R909436220 | RING | 1 | ||
| R909436221 | RING | 1 | ||
| R909436222 | RING | 1 | ||
| R909436223 | RING | 1 | ||
| R909436224 | RING | 1 | ||
| 6 | R909445415 | SPRING DISK | 1 | |
| R909445416 | SPACER BUSHING | 1 | ||
| R909445698 | SPACER BUSHING | 1 | ||
| R909445699 | SPACER BUSHING | 1 | ||
| 8 | R909445666 | COMPRESSION SPRING | 1 | |
| R909445414 | SPRING DISK | 1 | ||
| R909445440 | BUSHING | 1 | ||
| R909150068 | O-RINGD | 3 | ||
| 14 | R909831129 | V-RING | 3 | |
| R909084444 | RETAINING RING | 1 | ||
| R909083018 | SOCKET HEAD CAP SCREW | 4 | ||
| R902017521 | HEXAGON NUT | 1 | ||
| R909086380 | O-RINGD | 1 |
