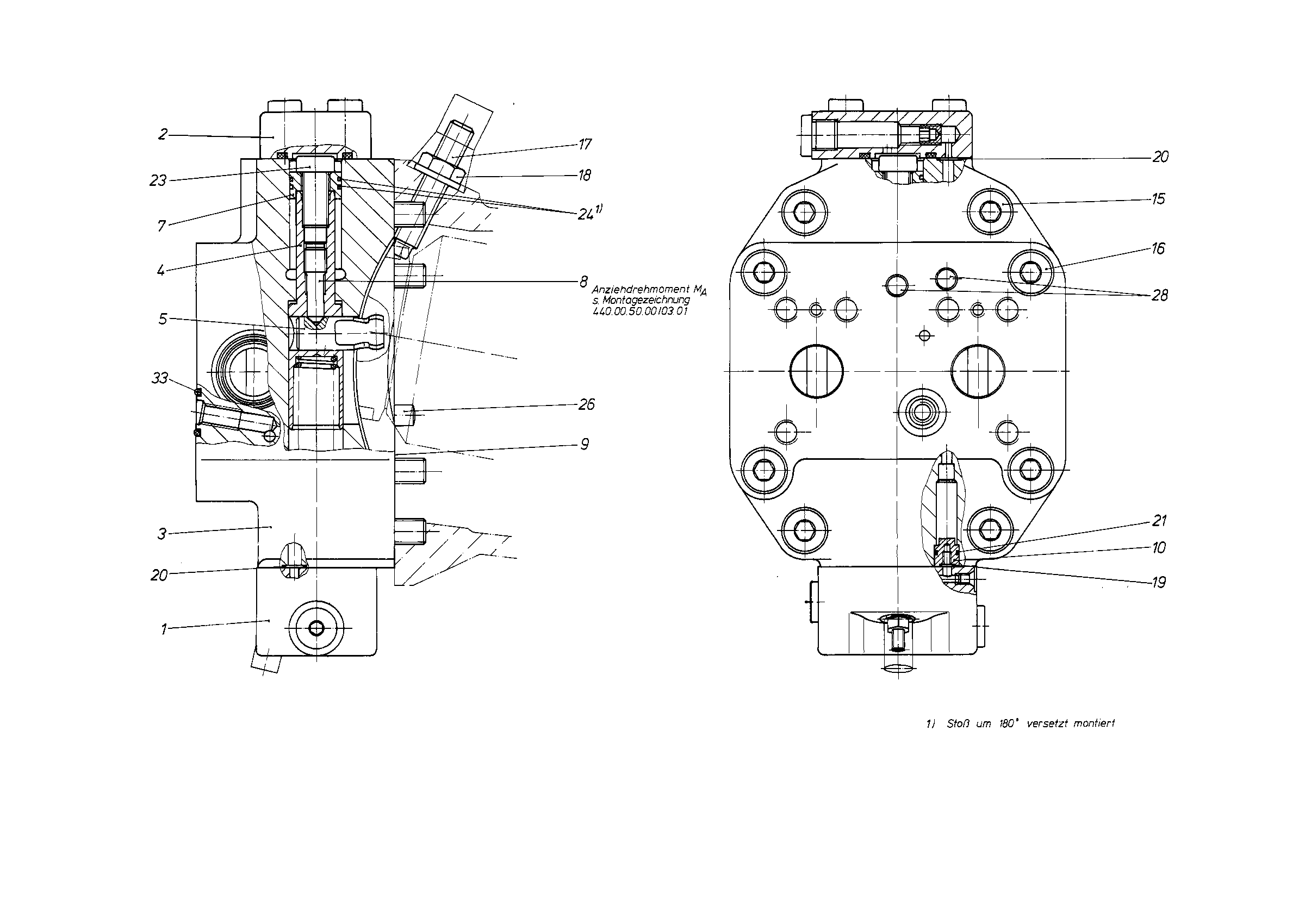

Baugruppe
CONTROLR909447742
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909419899 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909447746 | COVER | 1 | ||
| 3 | R909445519 | COVER PLATE | 1 | |
| 4 | R909445054 | POSITIONING PISTON | 1 | |
| 5 | R909422940 | POSITIONING STUD | 1 | |
| R902102899 | PISTON | 1 | ||
| 8 | R909445056 | SETSCREW | 1 | |
| 9 | R909436527 | SEALD | 1 | |
| 10 | R909418140 | PLUG | 2 | |
| R909083068 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083073 | SOCKET HEAD CAP SCREW | 4 | ||
| 17 | R909447003 | SETSCREW Stückliste der Baugruppe →L | 1 | |
| R909152426 | SEALING NUTD | 1 | ||
| R909083723 | O-RINGD | 2 | ||
| 20 | R909086498 | O-RINGD | 3 | |
| R909086380 | O-RINGD | 2 | ||
| R909083197 | SOCKET HEAD CAP SCREW | 1 | ||
| 26 | R913009667 | STRAIGHT PIN | 2 | |
| 27 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| 34 | R909153815 | SCREW PLUGD | 2 |
