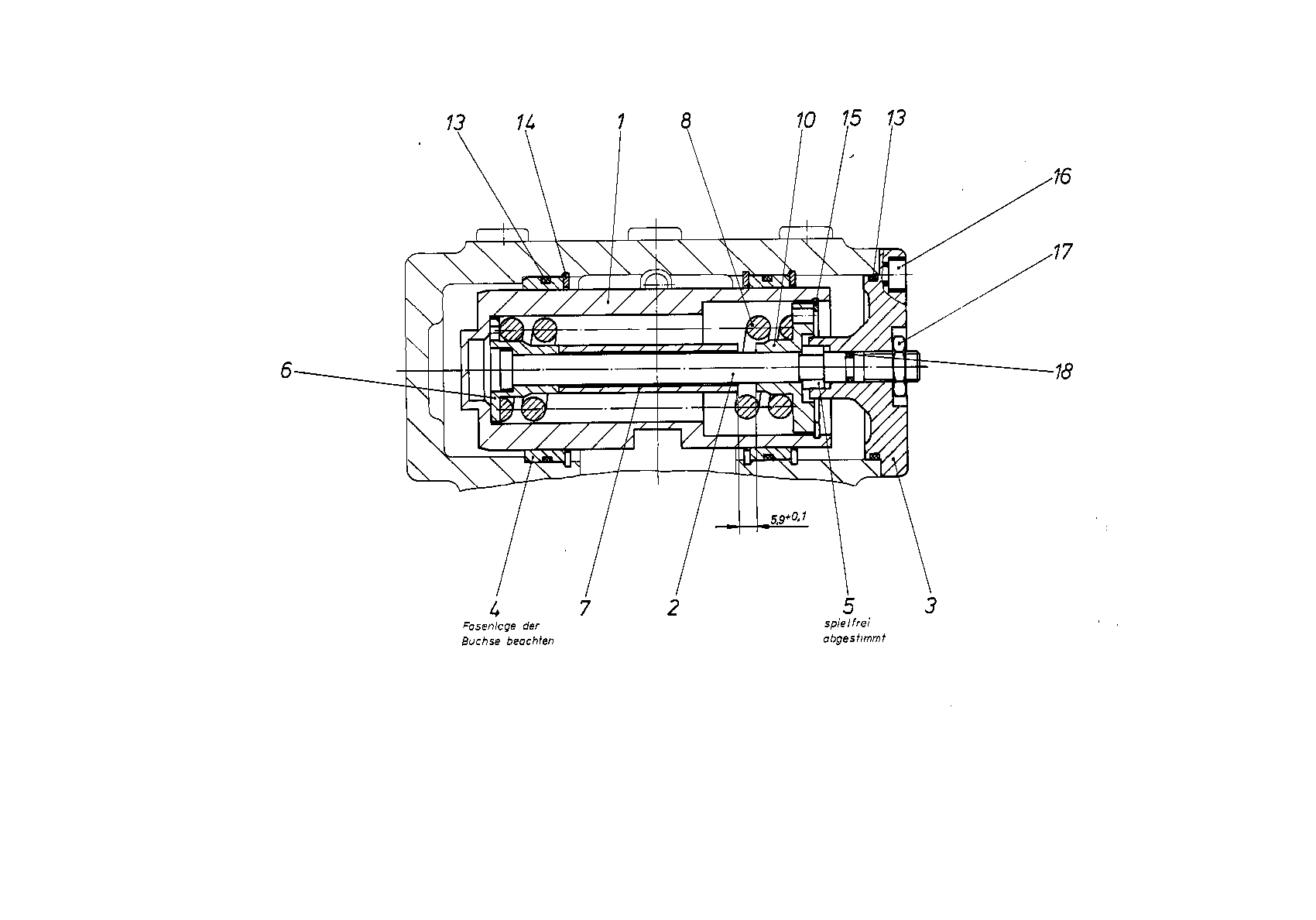

Baugruppe
CONTROLR909447798
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909651240 | POSITIONING PISTON | 1 | ||
| R909440855 | ROD | 1 | ||
| R909436198 | COVER | 1 | ||
| R909436218 | BUSHINGD | 2 | ||
| 5 | R909436219 | RING | 1 | |
| 5 | R909436220 | RING | 1 | |
| 5 | R909436221 | RING | 1 | |
| 5 | R909436222 | RING | 1 | |
| 5 | R909436223 | RING | 1 | |
| 5 | R909436224 | RING | 1 | |
| 5 | R909650222 | RING | 1 | |
| 5 | R909650223 | RING | 1 | |
| 5 | R909650224 | RING | 1 | |
| 6 | R902035529 | SPRING DISK | 1 | |
| R909449028 | SPACER BUSHING | 1 | ||
| 8 | R902035532 | COMPRESSION SPRING | 1 | |
| R902035531 | SPRING DISK | 1 | ||
| R909083780 | O-RINGD | 3 | ||
| 14 | R909157231 | V-RING | 3 | |
| R909085359 | RETAINING RING | 1 | ||
| R909083018 | SOCKET HEAD CAP SCREW | 4 | ||
| 17 | R902017521 | HEXAGON NUT | 1 | |
| R909086380 | O-RINGD | 1 |
