Baugruppe

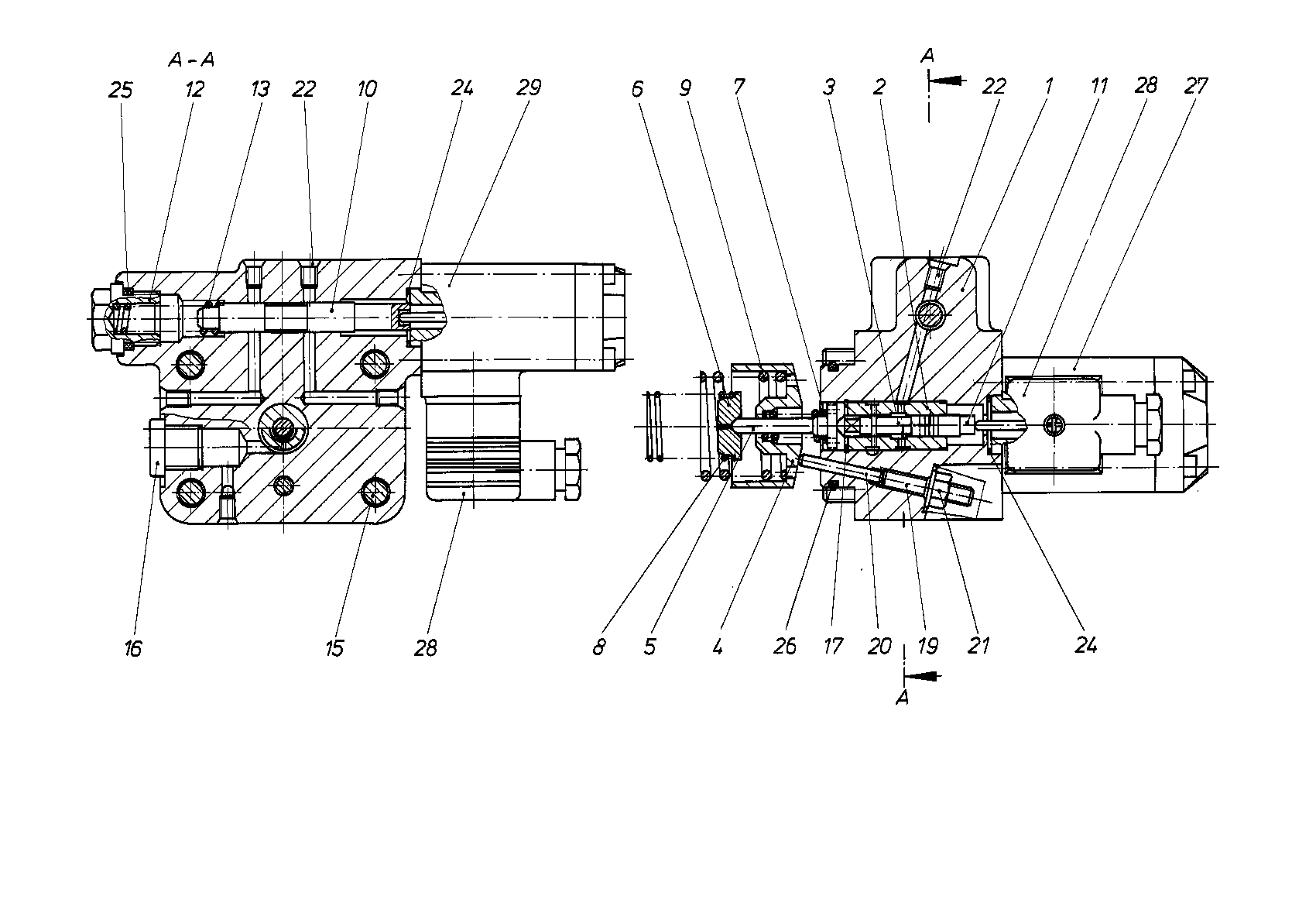

CONTROL PARTR909447867
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909444362 | CONTROL HOUSING | 1 | ||
| 2 | R909432662 | CONTROL SLEEVE | 1 | |
| 3 | R909440703 | CONTROL PISTON | 1 | |
| R909420171 | ADJUSTING BUSHING | 1 | ||
| R909418761 | SPRING BOLT | 1 | ||
| R909413198 | SPRING DISK | 1 | ||
| R909430757 | COMPRESSION SPRING | 1 | ||
| 8 | R909415938 | COMPRESSION SPRING | 1 | |
| R909445262 | COMPRESSION SPRING | 1 | ||
| R909444393 | SLIDE | 1 | ||
| R909440702 | STOP SCREW | 1 | ||
| R909417111 | SCREW PLUG | 1 | ||
| R909432398 | COMPRESSION SPRING | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 4 | ||
| 16 | R909151979 | SCREW PLUGD | 1 | |
| 17 | R909083381 | RETAINING RING | 1 | |
| 19 | R909152427 | SETSCREW | 1 | |
| 20 | R909087166 | STRAIGHT PIN | 1 | |
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909083734 | O-RINGD | 2 | ||
| 25 | R909086435 | O-RINGD | 1 | |
| R909083769 | O-RINGD | 1 | ||
| 27 | R909428264 | SWITCHING SOLENOID Stückliste der Baugruppe →L | 1 | |
| R913022795 | PLUG-IN CONNECTOR | 2 | ||
| R909428266 | SWITCHING SOLENOID Stückliste der Baugruppe →L | 1 |
