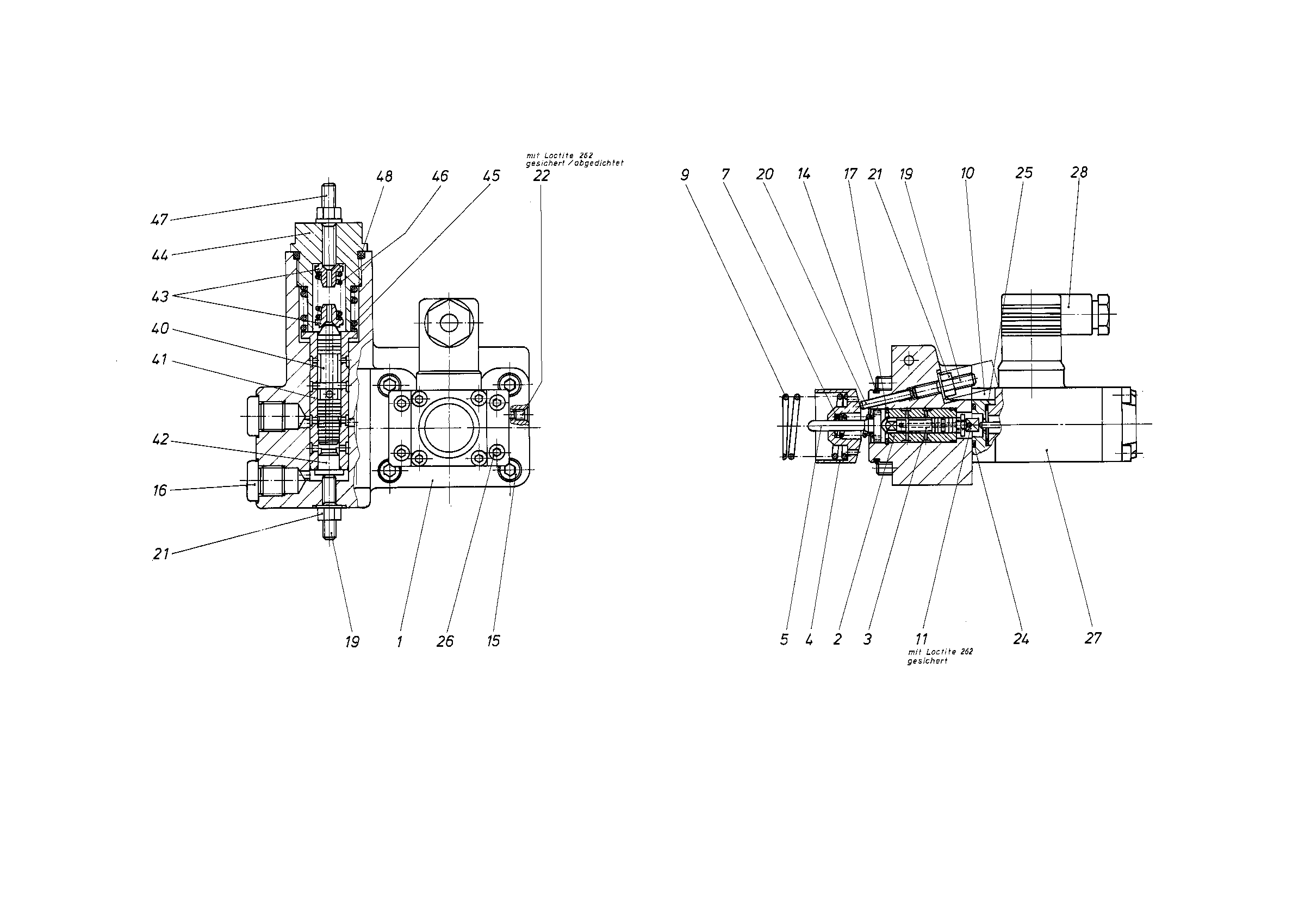

Baugruppe
CONTROL PARTR909448052
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909419890 | CONTROL HOUSING | 1 | ||
| 2 | R909412246 | CONTROL SLEEVE | 1 | |
| 3 | R909412266 | CONTROL PISTON | 1 | |
| 4 | R909420171 | ADJUSTING BUSHING | 1 | |
| 5 | R909418761 | SPRING BOLT | 1 | |
| 7 | R909413346 | COMPRESSION SPRING | 1 | |
| 9 | R909445262 | COMPRESSION SPRING | 1 | |
| R909418506 | INTERMEDIATE PLATE | 1 | ||
| 11 | R909413339 | STOP SCREW | 1 | |
| 14 | R909083769 | O-RINGD | 1 | |
| R909083042 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| 17 | R909083381 | RETAINING RING | 1 | |
| R909152427 | SETSCREW | 2 | ||
| R909087756 | STRAIGHT PIN | 1 | ||
| 21 | R909152425 | SEALING NUTD | 2 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909083734 | O-RINGD | 1 | ||
| R909086478 | O-RINGD | 1 | ||
| R909083003 | SOCKET HEAD CAP SCREW | 4 | ||
| R909428265 | SWITCHING SOLENOID Stückliste der Baugruppe →L | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R902248587 | CONTROL PISTON | 1 | ||
| 41 | R902248524 | CONTROL SLEEVE | 1 | |
| R909419893 | BOLT | 1 | ||
| 43 | R909075975 | SPRING DISK | 2 | |
| R909444358 | SCREW PLUG | 1 | ||
| R909414209 | COMPRESSION SPRING | 1 | ||
| R909420239 | COMPRESSION SPRING | 1 | ||
| R909830899 | SETSCREW | 1 | ||
| R909083764 | O-RINGD | 1 | ||
| 49 | R909157764 | SEALING NUT | 1 |
