Baugruppe

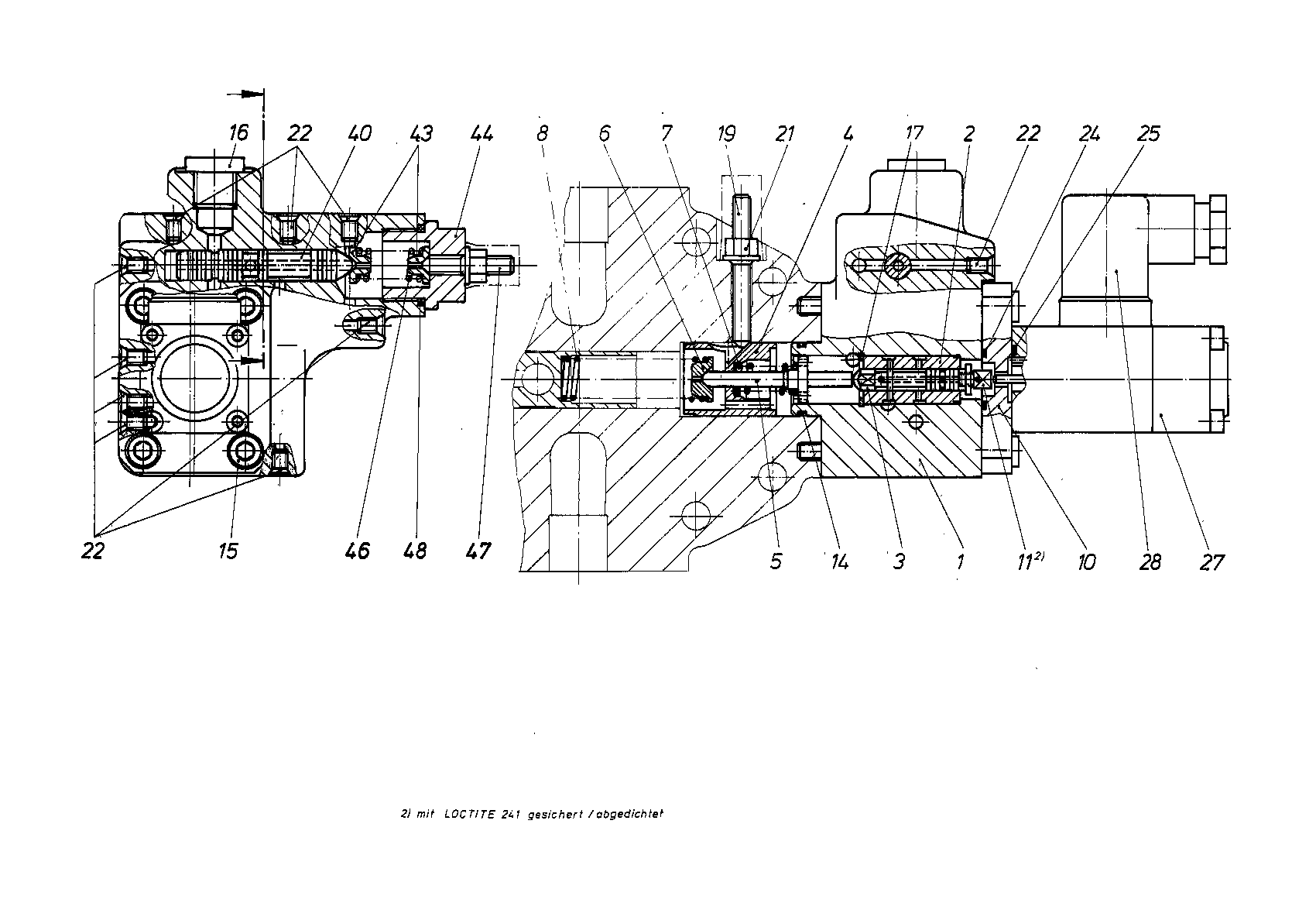

CONTROL PARTR909448062
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909430021 | CONTROL HOUSING | 1 | ||
| R909412246 | CONTROL SLEEVE | 1 | ||
| R909412266 | CONTROL PISTON | 1 | ||
| R909445267 | ADJUSTING BUSHING | 1 | ||
| R909425551 | SPRING BOLT | 1 | ||
| R909413346 | COMPRESSION SPRING | 1 | ||
| R909449513 | INTERMEDIATE PLATE | 1 | ||
| R909413339 | STOP SCREW | 1 | ||
| R909086432 | O-RINGD | 1 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909439043 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909086478 | O-RINGD | 1 | ||
| R909083737 | O-RINGD | 1 | ||
| R909428266 | SWITCHING SOLENOID Stückliste der Baugruppe →L | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R909426677 | CONTROL PISTON | 1 | ||
| R909075975 | SPRING DISK | 2 | ||
| R909420350 | SCREW PLUG | 1 | ||
| R909420239 | COMPRESSION SPRING | 1 | ||
| R909154140 | SETSCREW | 1 | ||
| R909086517 | O-RINGD | 1 |
