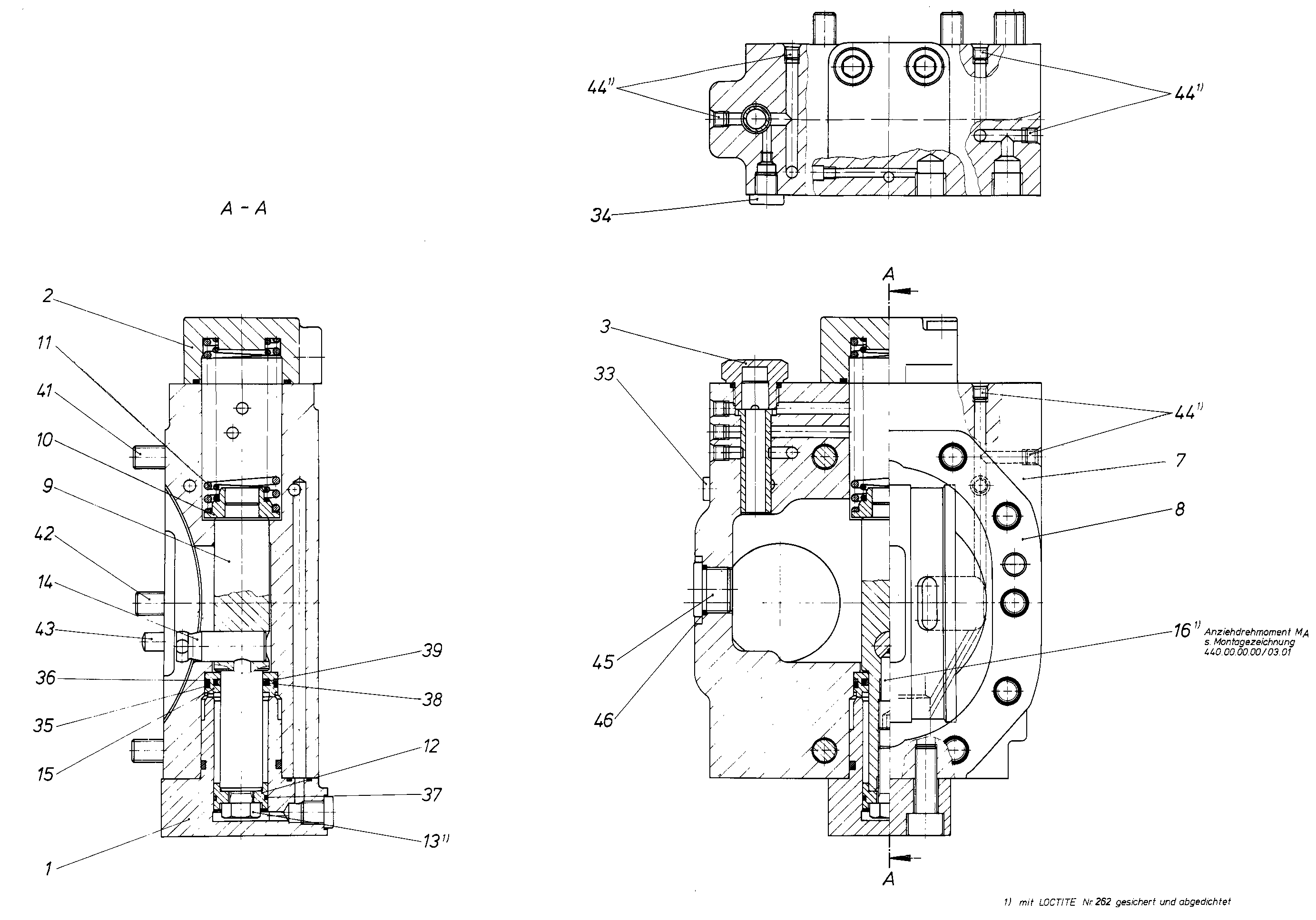

Baugruppe
CONTROLR909448191
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902000048 | GUIDE COVER Stückliste der Baugruppe →L | 1 | ||
| R909423870 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909437139 | SEALING CAP Stückliste der Baugruppe →L | 1 | ||
| R909426347 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902024642 | SEALD | 1 | ||
| R909426674 | POSITIONING PISTON | 1 | ||
| R909426603 | SPRING DISK | 1 | ||
| R909426151 | COMPRESSION SPRING | 1 | ||
| R909426604 | PISTON | 1 | ||
| R909439013 | HEXAGON SCREW | 1 | ||
| R909430407 | POSITIONING STUD | 1 | ||
| R909426607 | SEAL RING | 1 | ||
| R909409590 | SETSCREW | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909152146 | O-RINGD | 1 | ||
| R909157762 | BACKUP RINGD | 1 | ||
| R909156962 | R-RINGD | 1 | ||
| R909157763 | ROD SEALD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R909083070 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083198 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909083226 | SCREW PLUG | 1 | ||
| R909086517 | O-RINGD | 1 |
