Baugruppe

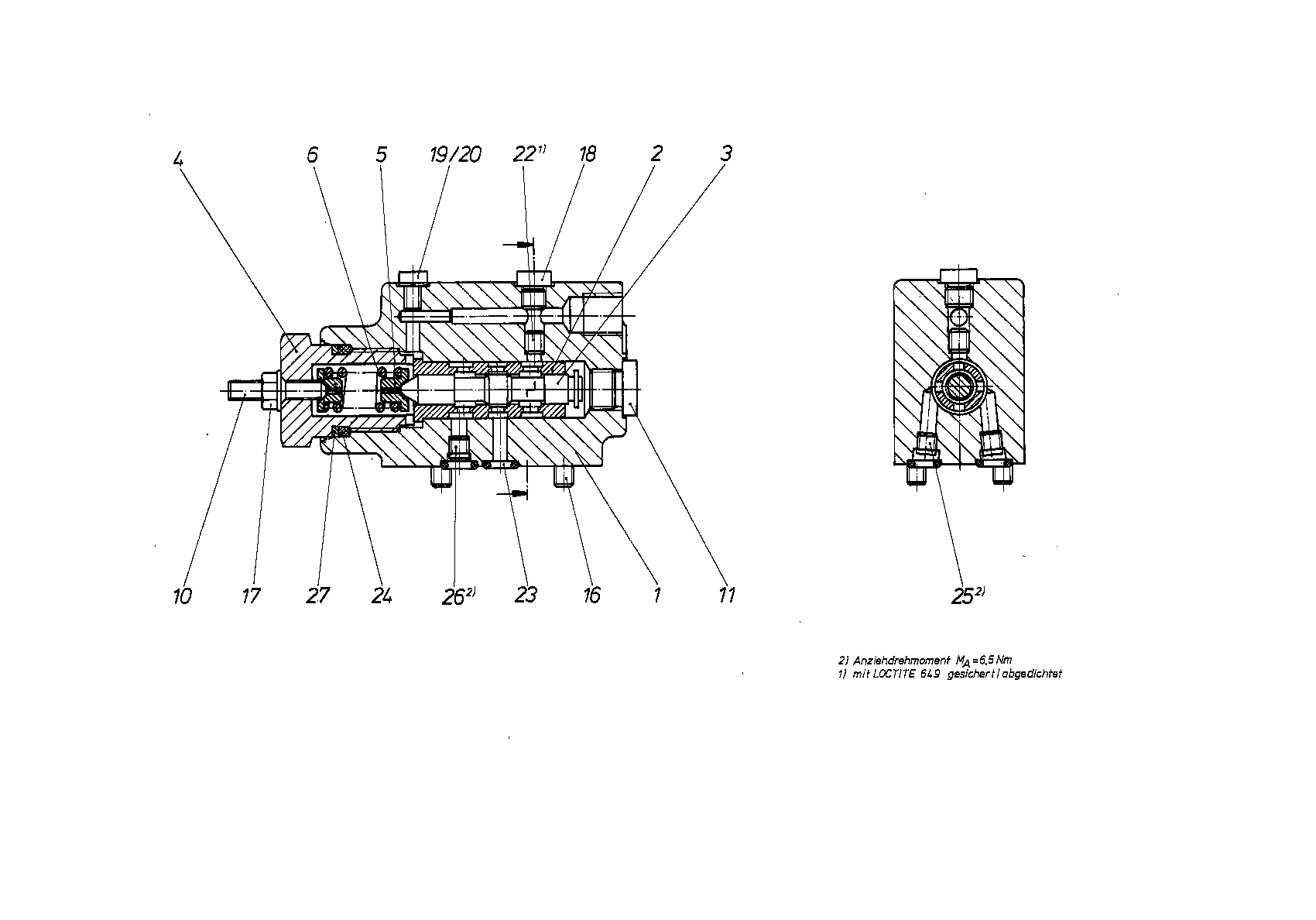

SEQUENCE VALVER909448260
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909432475 | HOUSING | 1 | ||
| R909431037 | CONTROL SLEEVE | 1 | ||
| R909424353 | CONTROL PISTON | 1 | ||
| 4 | R909432919 | SCREW PLUG | 1 | |
| 5 | R909449205 | SPRING DISK | 2 | |
| R909449288 | COMPRESSION SPRING | 1 | ||
| R909420991 | SETSCREW | 1 | ||
| R909422328 | SCREW PLUG | 1 | ||
| 16 | R909831243 | SOCKET HEAD CAP SCREW | 4 | |
| R909152425 | SEALING NUTD | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| 19 | R909086465 | SOCKET HEAD CAP SCREW | 1 | |
| 20 | R909084302 | SEAL RINGD | 1 | |
| 22 | R909831347 | PLUG | 1 | |
| 23 | R909831044 | O-RINGD | 4 | |
| 24 | R909831239 | O-RINGD | 1 | |
| 25 | R909156495 | NOZZLE | 2 | |
| 26 | R909156492 | NOZZLE | 1 | |
| R909087626 | BACKUP RINGD | 1 |
