Baugruppe

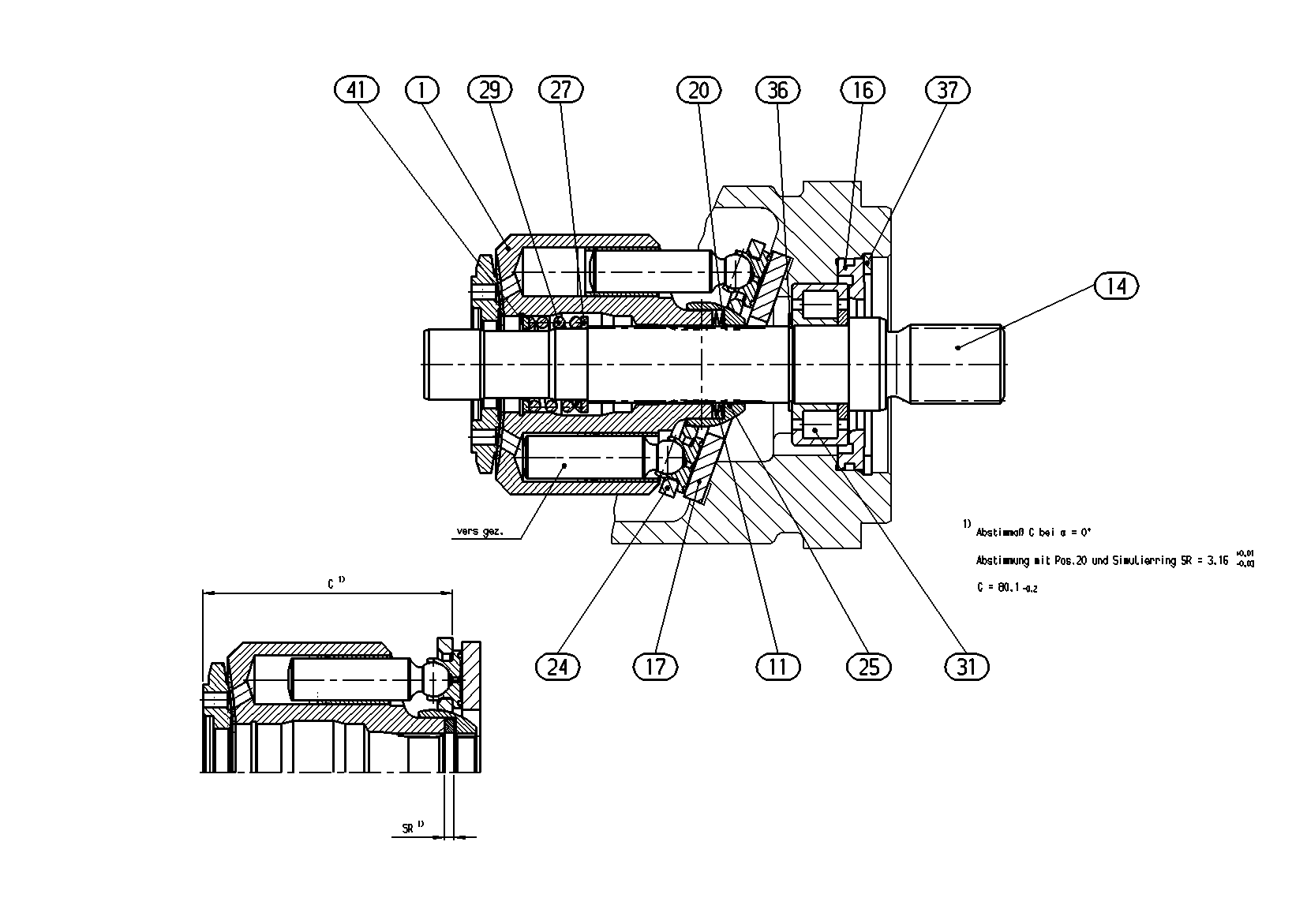

ROTARY GROUPR909448447
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902047620 | CYLINDER Stückliste der Baugruppe →L | 1 | ||
| 2 | R909431514 | PISTON PAD | 9 | |
| 11 | R902121243 | CUP-SPRING STACK | 1 | |
| R909651950 | DRIVE SHAFT | 1 | ||
| R909650350 | LOCKING RING | 1 | ||
| R909430645 | SLIDING DISC | 1 | ||
| R909432999 | SHIM RING | 1 | ||
| R909435000 | SHIM RING | 1 | ||
| R909435001 | SHIM RING | 1 | ||
| R909435002 | SHIM RING | 1 | ||
| R902205399 | RETAINING PLATE | 1 | ||
| R909431343 | RETAINING BALL | 1 | ||
| R909922004 | WASHER | 2 | ||
| R909921997 | COMPRESSION SPRING | 1 | ||
| R909157795 | CYL. ROLLER BEARING | 1 | ||
| R909083355 | RETAINING RING | 1 | ||
| R909083410 | RETAINING RING | 1 | ||
| R909083393 | RETAINING RING | 1 |
