Baugruppe

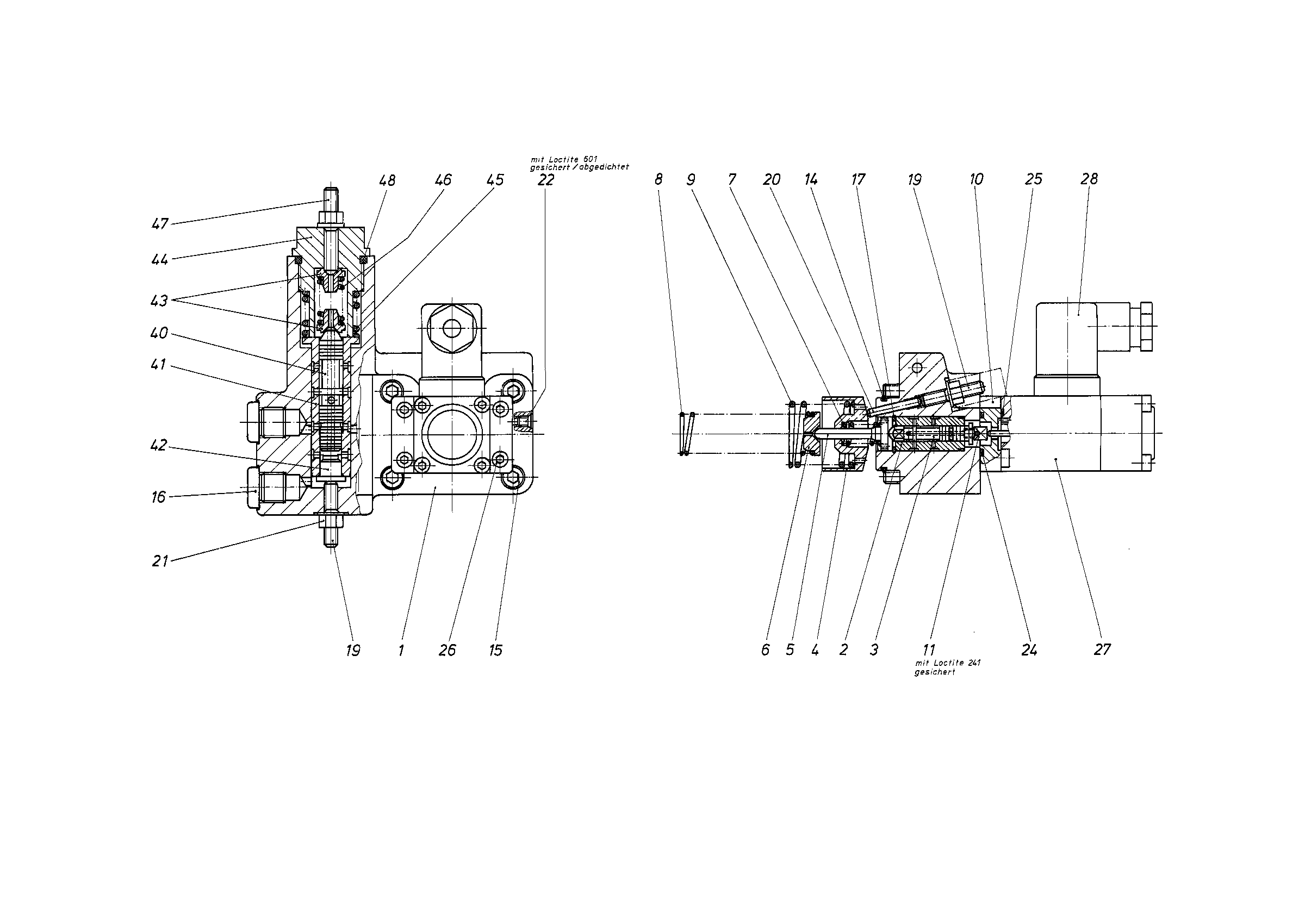

CONTROL PARTR909448613
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909420480 | CONTROL HOUSING | 1 | ||
| 2 | R909412246 | CONTROL SLEEVE | 1 | |
| 3 | R909412266 | CONTROL PISTON | 1 | |
| 4 | R909420873 | ADJUSTING BUSHING | 1 | |
| 5 | R909418761 | SPRING BOLT | 1 | |
| 6 | R909421860 | SPRING DISK | 1 | |
| R909413346 | COMPRESSION SPRING | 1 | ||
| R902099066 | COMPRESSION SPRING | 1 | ||
| R909445264 | COMPRESSION SPRING | 1 | ||
| R909420158 | INTERMEDIATE PLATE | 1 | ||
| 11 | R909413339 | STOP SCREW | 1 | |
| 14 | R909086336 | O-RINGD | 1 | |
| R909083042 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909431026 | SETSCREW | 1 | ||
| 21 | R909152425 | SEALING NUTD | 2 | |
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 4 | |
| R909086478 | O-RINGD | 1 | ||
| R909083737 | O-RINGD | 1 | ||
| R909083012 | SOCKET HEAD CAP SCREW | 4 | ||
| R909428281 | PROPORTIONAL SOLENOID Stückliste der Baugruppe →L | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| 40 | R902248587 | CONTROL PISTON | 1 | |
| 41 | R902248524 | CONTROL SLEEVE | 1 | |
| R909419893 | BOLT | 1 | ||
| R909075975 | SPRING DISK | 2 | ||
| R909444358 | SCREW PLUG | 1 | ||
| R909414209 | COMPRESSION SPRING | 1 | ||
| R909420239 | COMPRESSION SPRING | 1 | ||
| R909830899 | SETSCREW | 1 | ||
| R909083764 | O-RINGD | 1 | ||
| 49 | R909157764 | SEALING NUT | 1 |
