Baugruppe

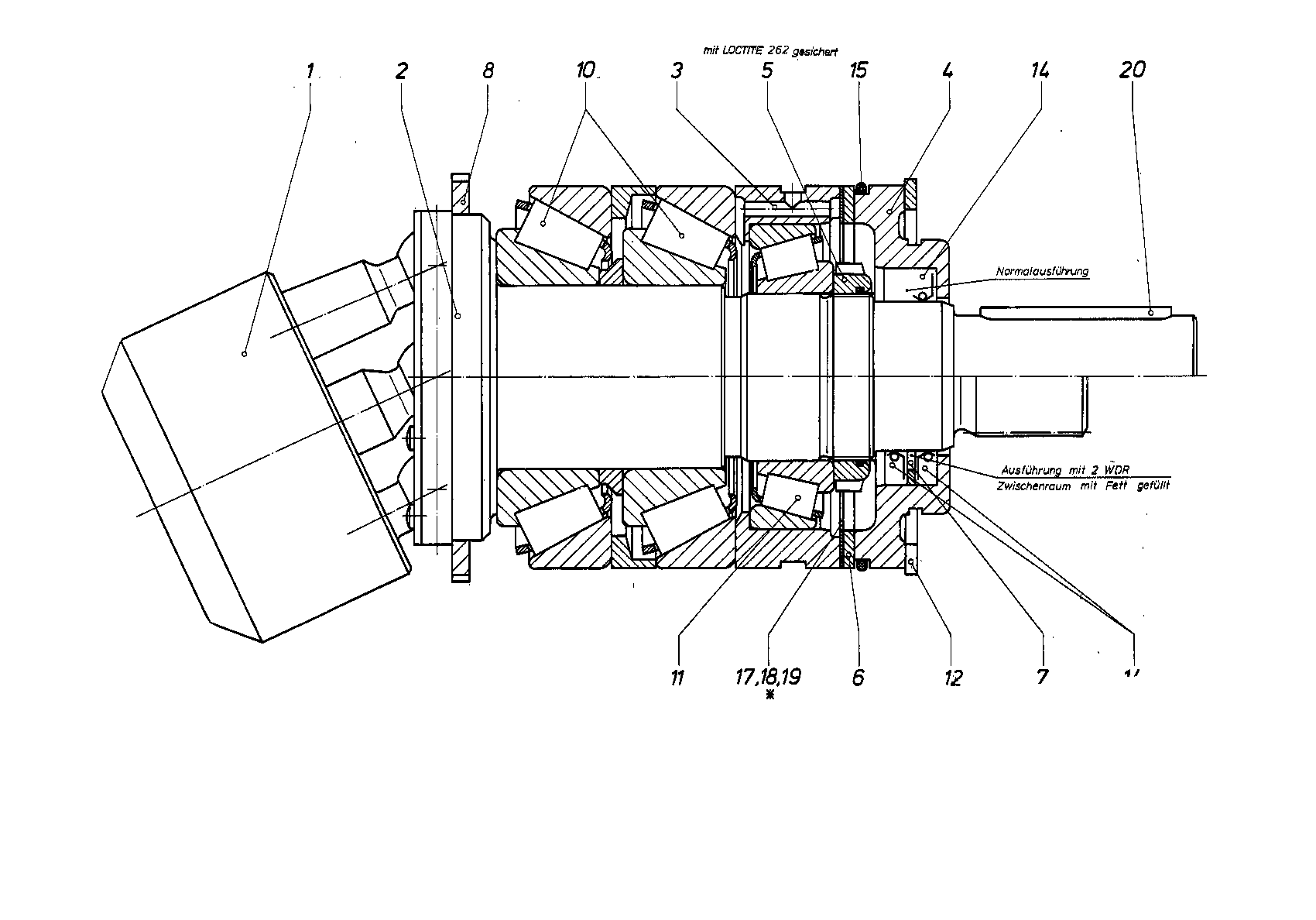

ROTARY GROUPR909448662
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909429232 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R909449489 | DRIVE SHAFT | 1 | ||
| 3 | R909411437 | BEARING RING | 1 | |
| R909651999 | LOCKING RING | 1 | ||
| 5 | R913037932 | SLOTTED ROUND NUT | 1 | |
| 6 | R909156267 | SUPPORTING DISC | 1 | |
| R909436875 | ANNULAR GEAR | 1 | ||
| 10 | R909156512 | TAPERED-ROLLER BEARING UNIT | 1 | |
| 11 | R909151114 | TAPERED-ROLLER BEARING | 1 | |
| R909152143 | RETAINING RING | 1 | ||
| R909831178 | SHAFT SEALING RINGD | 1 | ||
| 15 | R909086950 | O-RINGD | 1 | |
| R909154360 | SHIM RING | 2 | ||
| R909156441 | SHIM RING | 2 | ||
| R909156296 | SHIM RING | 2 |
