Baugruppe

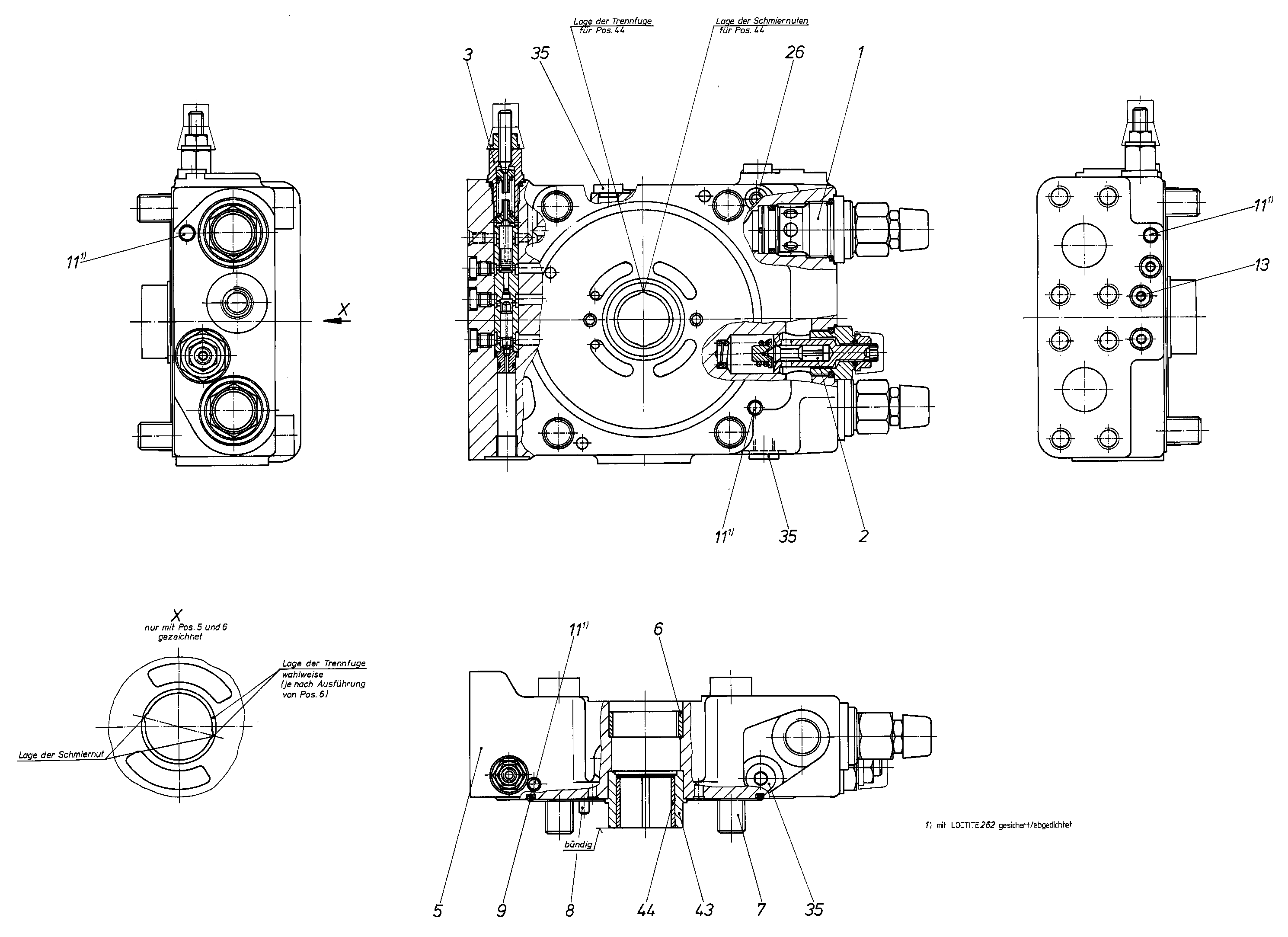

CONNECTION PLATER909448849
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902603814 | DELIVERY-VALVE ASSEMBLY Stückliste der Baugruppe →L | 2 | ||
| R902215658 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 1 | ||
| R909437084 | PRESSURE CUT-OFF VALVE Stückliste der Baugruppe →L | 1 | ||
| R909445225 | CONNECTION PLATE | 1 | ||
| R902260550 | BUSHING | 1 | ||
| R909830990 | SOCKET HEAD CAP SCREW | 4 | ||
| R900748992 | STRAIGHT PIN | 2 | ||
| R909831307 | SEAL RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909154024 | SCREW PLUGD | 3 | ||
| R909831053 | SEAL RINGD | 1 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909444842 | BUSHING | 1 | ||
| R902260551 | BUSHING | 1 |
