Baugruppe

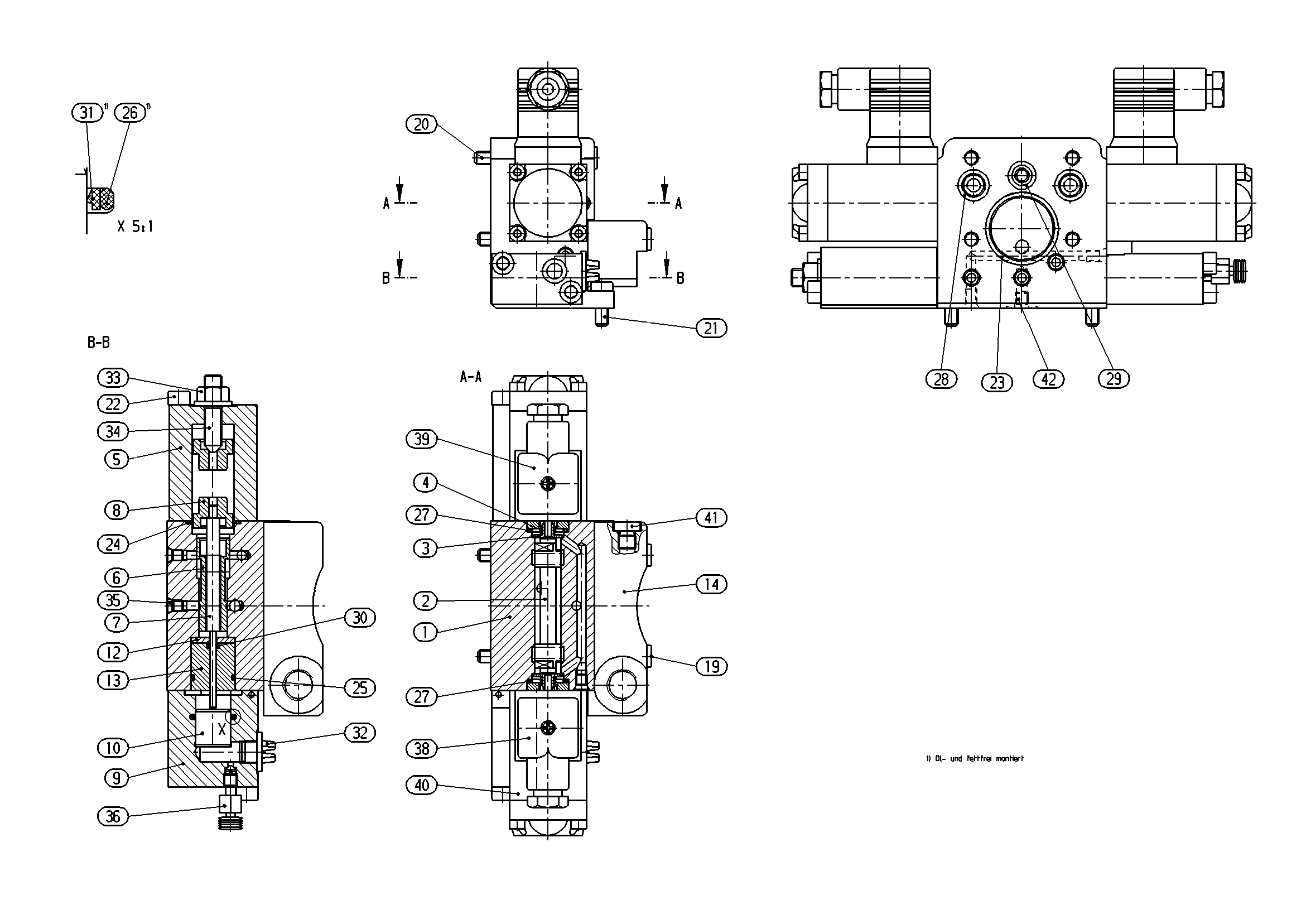

INCHING DEVICER909600249
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902016054 | VALVE HOUSING | 1 | ||
| R902009009 | CONTROL PISTON | 1 | ||
| R909400503 | SPRING DISK | 2 | ||
| R909071362 | COMPRESSION SPRING | 2 | ||
| R909445238 | SPRING HOUSING Stückliste der Baugruppe →L | 1 | ||
| R909431073 | CONTROL PISTON | 1 | ||
| R909439838 | GUIDE ROD | 1 | ||
| R909650315 | SPRING DISK | 2 | ||
| R902052893 | HOUSING COVER | 1 | ||
| R909401708 | PISTON | 1 | ||
| R909404505 | WASHER | 1 | ||
| R909445230 | SEAL BUSHING | 1 | ||
| R902041081 | CONNECTION COVER | 1 | ||
| R902600322 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083028 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083187 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083030 | SOCKET HEAD CAP SCREW | 2 | ||
| R902600641 | O-RINGD | 1 | ||
| R909086250 | O-RINGD | 1 | ||
| R909084939 | O-RINGD | 1 | ||
| R909153894 | O-RINGD | 1 | ||
| R909086478 | O-RINGD | 2 | ||
| R909086332 | O-RINGD | 4 | ||
| R909085709 | O-RINGD | 1 | ||
| R909086301 | O-RINGD | 1 | ||
| R909153892 | ROD SEALD | 1 | ||
| R902602203 | SEAL SCREW | 1 | ||
| R909152707 | SEALING NUT | 1 | ||
| R909153555 | SETSCREW | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909153893 | BLEEDER VALVE | 1 | ||
| R913022796 | PLUG-IN CONNECTOR | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R909428265 | SWITCHING SOLENOID Stückliste der Baugruppe →L | 2 | ||
| R909156863 | SCREW PLUGD | 1 | ||
| R902600705 | PLUG | 1 |
