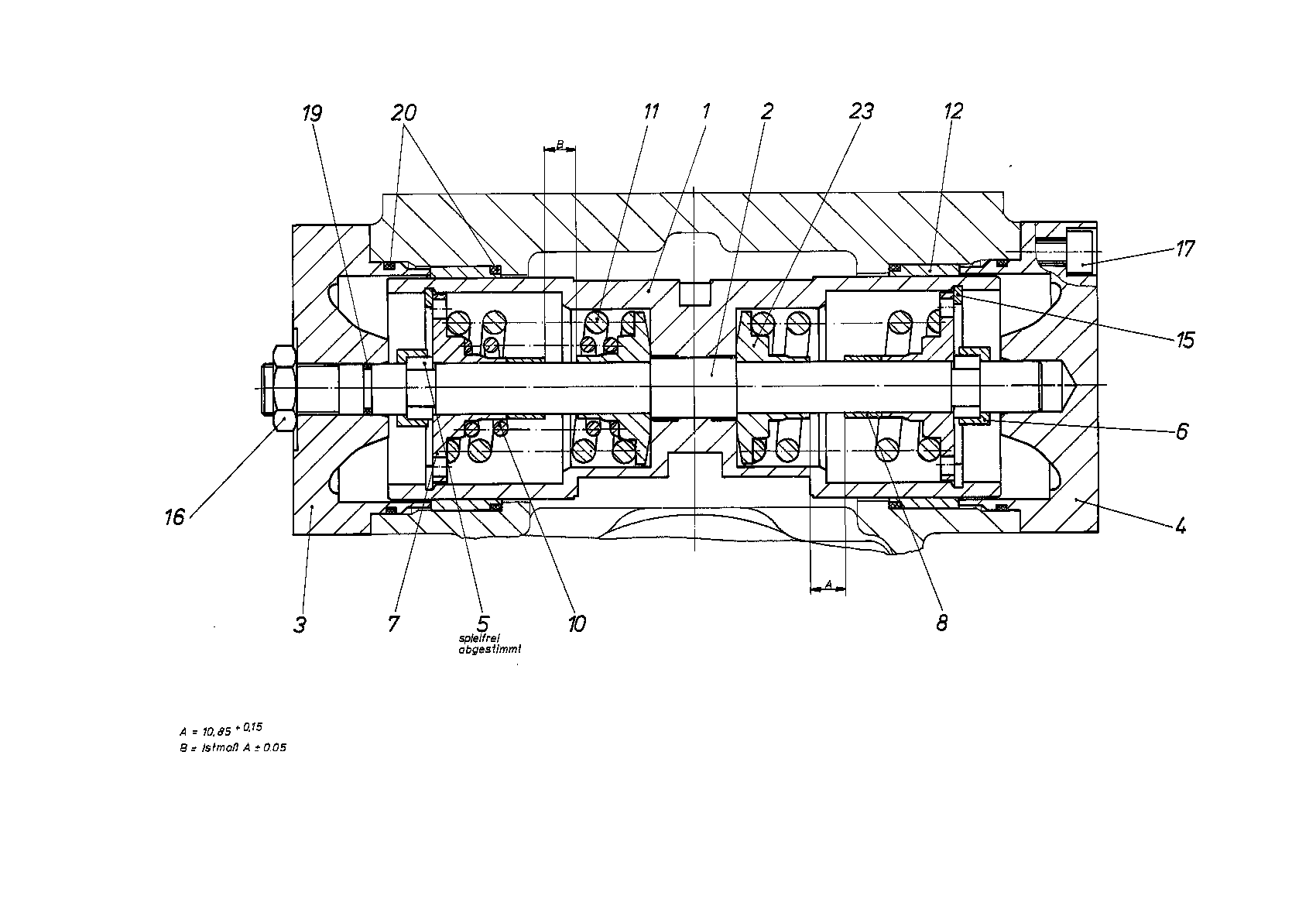

Baugruppe
CONTROLR909600412
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909652165 | POSITIONING PISTON | 1 | ||
| R909650582 | ROD | 1 | ||
| 3 | R909436803 | COVER | 1 | |
| 4 | R909436804 | COVER | 1 | |
| 5 | R909435018 | RING | 2 | |
| 5 | R909435019 | RING | 1 | |
| 5 | R909435020 | RING | 1 | |
| 5 | R909435021 | RING | 1 | |
| 5 | R909435022 | RING | 1 | |
| 5 | R909435023 | RING | 1 | |
| 6 | R909426311 | LOCATING RING | 2 | |
| R909650584 | SPRING DISK | 2 | ||
| 8 | R909436806 | SPACER BUSHING | 2 | |
| 8 | R909436807 | SPACER BUSHING | 1 | |
| 8 | R909436808 | SPACER BUSHING | 1 | |
| 8 | R909445789 | SPACER BUSHING | 1 | |
| 8 | R909445790 | SPACER BUSHING | 1 | |
| 8 | R909445791 | SPACER BUSHING | 1 | |
| 10 | R909436811 | COMPRESSION SPRING | 1 | |
| 11 | R909436810 | COMPRESSION SPRING | 2 | |
| R909436419 | BUSHING | 2 | ||
| 15 | R909830312 | RETAINING RING | 2 | |
| R909157477 | HEXAGON NUT | 1 | ||
| 17 | R909083038 | SOCKET HEAD CAP SCREW | 8 | |
| R909086333 | O-RINGD | 1 | ||
| R909083790 | O-RINGD | 4 | ||
| R909650583 | SPRING DISK | 2 |
