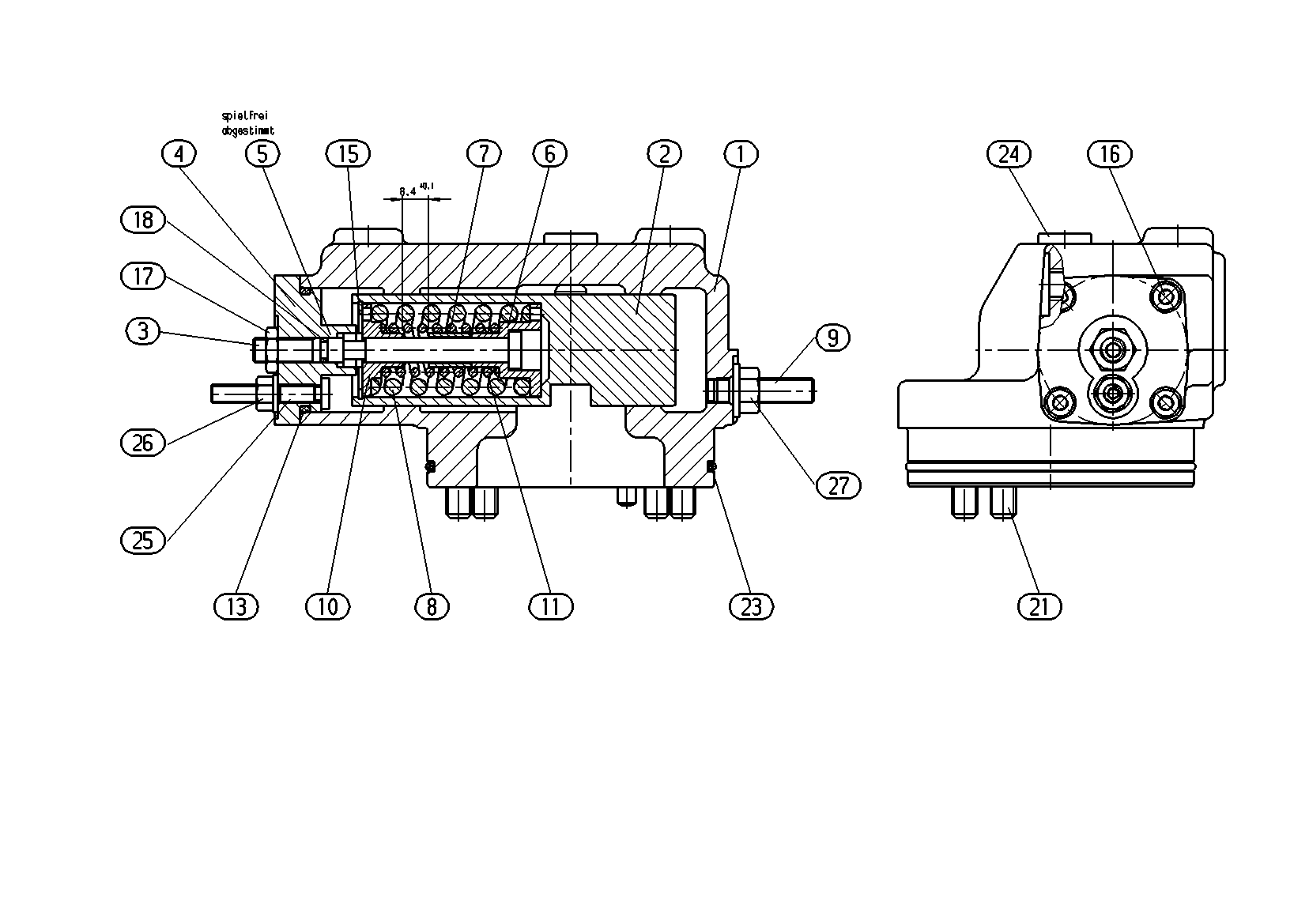

Baugruppe
CONTROLR909600430
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909921962 | HOUSING | 1 | |
| R902003848 | POSITIONING PISTON | 1 | ||
| R909443022 | ROD | 1 | ||
| R909445862 | COVER | 1 | ||
| R902000896 | RING | 1 | ||
| R902000897 | RING | 1 | ||
| R902000898 | RING | 1 | ||
| R909430940 | RING | 1 | ||
| R909430941 | RING | 1 | ||
| R909430942 | RING | 1 | ||
| R902000899 | RING | 1 | ||
| R902000900 | RING | 1 | ||
| R902000901 | RING | 1 | ||
| R909443068 | SPRING DISK | 1 | ||
| 7 | R909443083 | SPACER BUSHING | 1 | |
| 7 | R909445968 | SPACER BUSHING | 1 | |
| 7 | R909445969 | SPACER BUSHING | 1 | |
| 7 | R902039651 | SPACER BUSHING | 1 | |
| R909443159 | COMPRESSION SPRING | 1 | ||
| R909430823 | SETSCREW | 1 | ||
| R909443067 | SPRING DISK | 1 | ||
| 11 | R909443161 | COMPRESSION SPRING | 1 | |
| R909083769 | O-RINGD | 1 | ||
| R909830721 | V-RING | 1 | ||
| R909083008 | SOCKET HEAD CAP SCREW | 4 | ||
| R909830591 | HEXAGON NUT | 1 | ||
| R909084469 | O-RINGD | 1 | ||
| R909083041 | SOCKET HEAD CAP SCREW | 4 | ||
| R909085568 | O-RINGD | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909443264 | STOP SCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909152707 | SEALING NUTD | 1 |
