Baugruppe

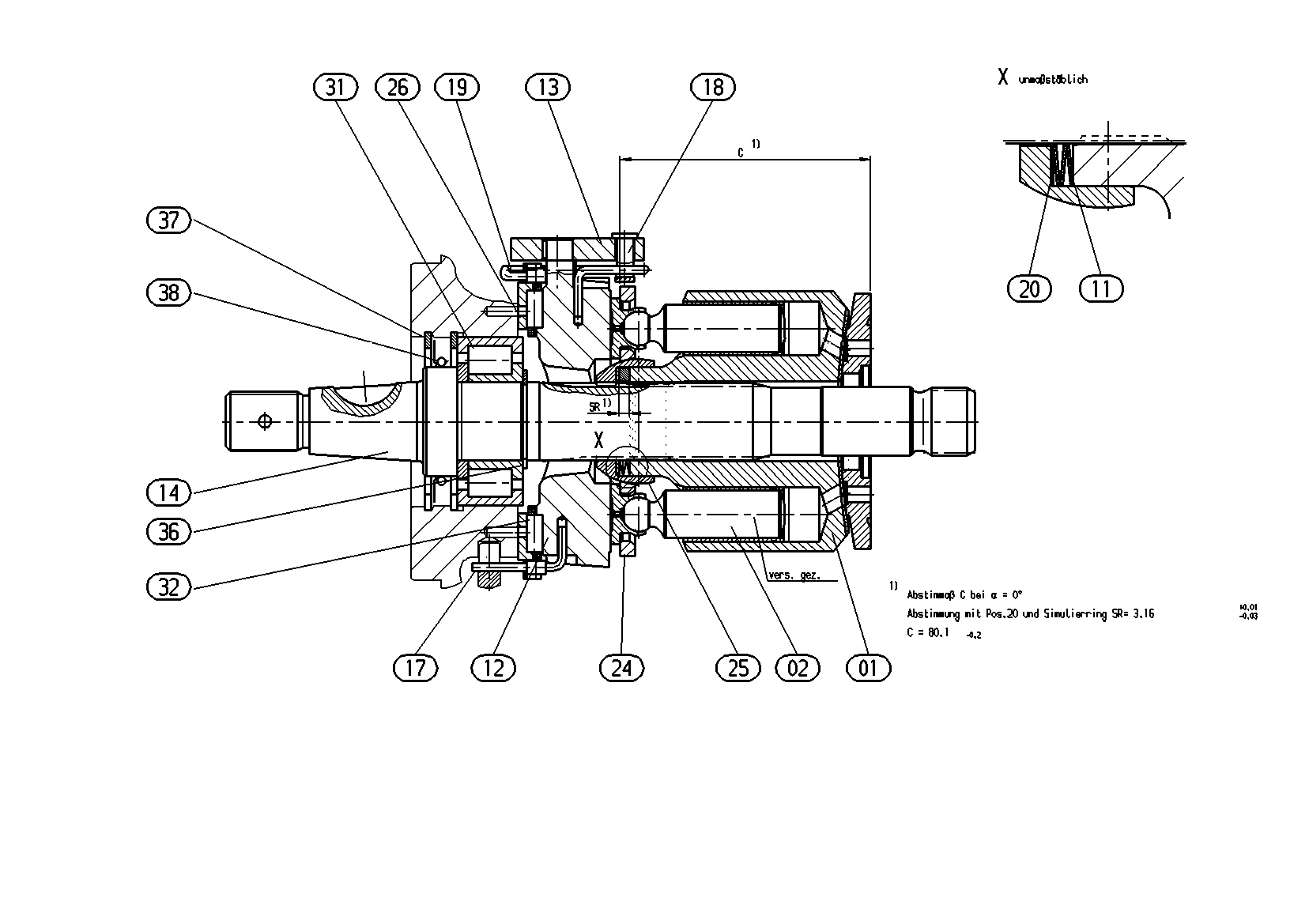

ROTARY GROUPR909600618
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909449306 | CYLINDER Stückliste der Baugruppe →L | 1 | ||
| 2 | R909436712 | PISTON PAD | 9 | |
| 11 | R902121243 | CUP-SPRING STACK | 1 | |
| R909439054 | CRADLE | 1 | ||
| R909444488 | SLIDER | 1 | ||
| 14 | R909449543 | DRIVE SHAFT | 1 | |
| R909413920 | WIRE | 1 | ||
| R909443447 | PIVOT PIN | 1 | ||
| R909444489 | WIRE | 1 | ||
| R909432999 | SHIM RING | 1 | ||
| R909435000 | SHIM RING | 1 | ||
| R909435001 | SHIM RING | 1 | ||
| R909435002 | SHIM RING | 1 | ||
| R909440896 | RETAINING PLATE | 1 | ||
| R909431343 | RETAINING BALL | 1 | ||
| R902066597 | BEARING SHELL PAIR | 1 | ||
| 31 | R909156605 | CYL. ROLLER BEARING | 1 | |
| R909156625 | CAGE PAIR | 1 | ||
| R909083355 | RETAINING RING | 1 | ||
| R902600141 | RETAINING RING | 2 | ||
| R902601818 | ROTARY SHAFT LIP SEALD | 1 |
