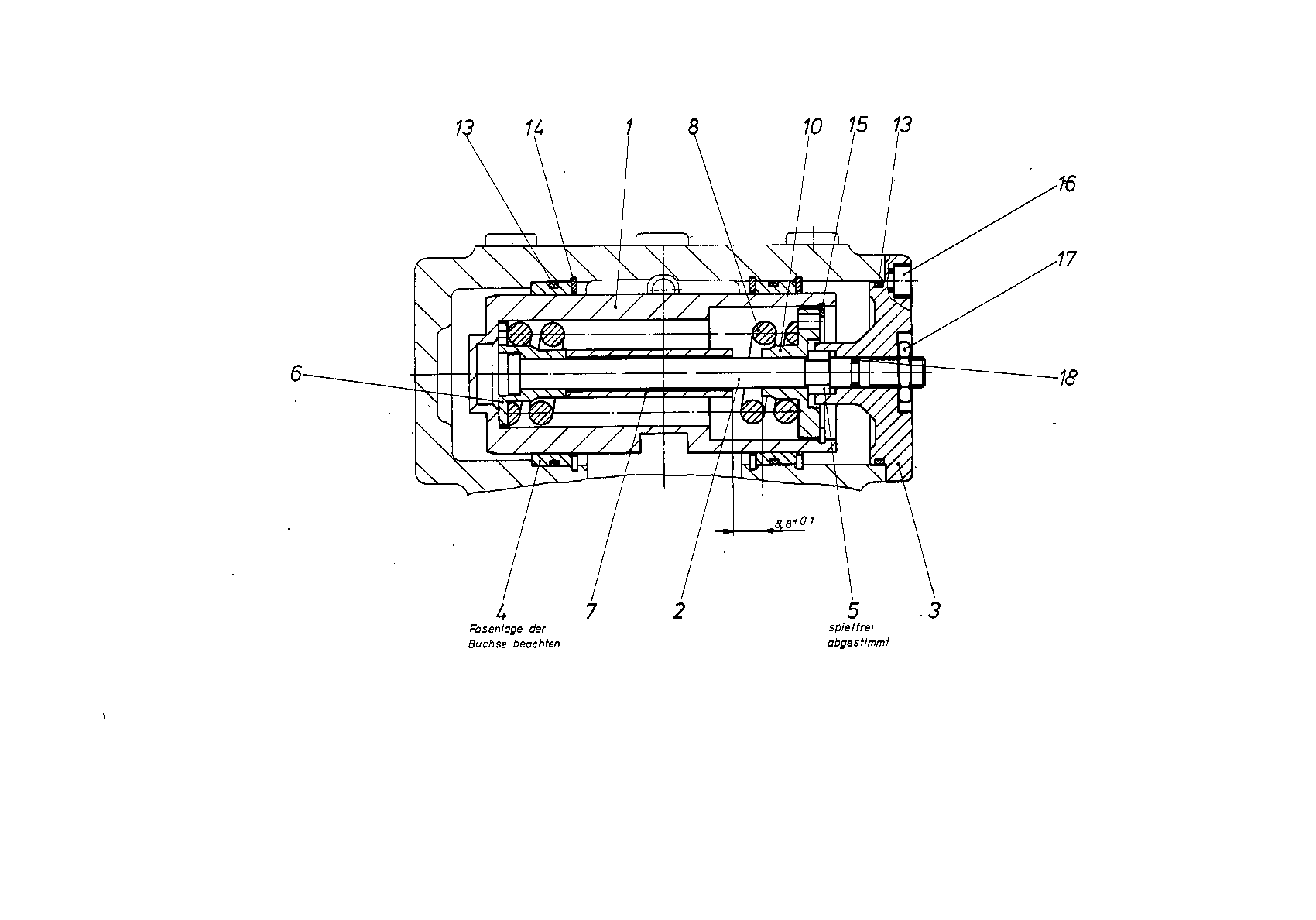

Baugruppe
CONTROLR909600925
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909651240 | POSITIONING PISTON | 1 | |
| R909440855 | ROD | 1 | ||
| R909436198 | COVER | 1 | ||
| R909436218 | BUSHINGD | 2 | ||
| 5 | R909436219 | RING | 1 | |
| 5 | R909436220 | RING | 1 | |
| 5 | R909436221 | RING | 1 | |
| 5 | R909436222 | RING | 1 | |
| 5 | R909436223 | RING | 1 | |
| 5 | R909436224 | RING | 1 | |
| 6 | R909440857 | SPRING DISK | 1 | |
| R909921080 | SPACER BUSHING | 1 | ||
| R902049839 | SPACER BUSHING | 1 | ||
| R909921082 | SPACER BUSHING | 1 | ||
| R902049700 | SPACER BUSHING | 1 | ||
| R902049701 | SPACER BUSHING | 1 | ||
| R902049840 | SPACER BUSHING | 1 | ||
| 8 | R902035532 | COMPRESSION SPRING | 1 | |
| 10 | R909440863 | SPRING DISK | 1 | |
| 13 | R909083780 | O-RINGD | 3 | |
| R909157231 | V-RING | 3 | ||
| 15 | R909085359 | RETAINING RING | 1 | |
| 16 | R909083018 | SOCKET HEAD CAP SCREW | 4 | |
| R902017521 | HEXAGON NUT | 1 | ||
| R909086380 | O-RINGD | 1 | ||
| 98 | R902002439 | SEAL KIT | 1 |
