Baugruppe
REGULATORR909601338

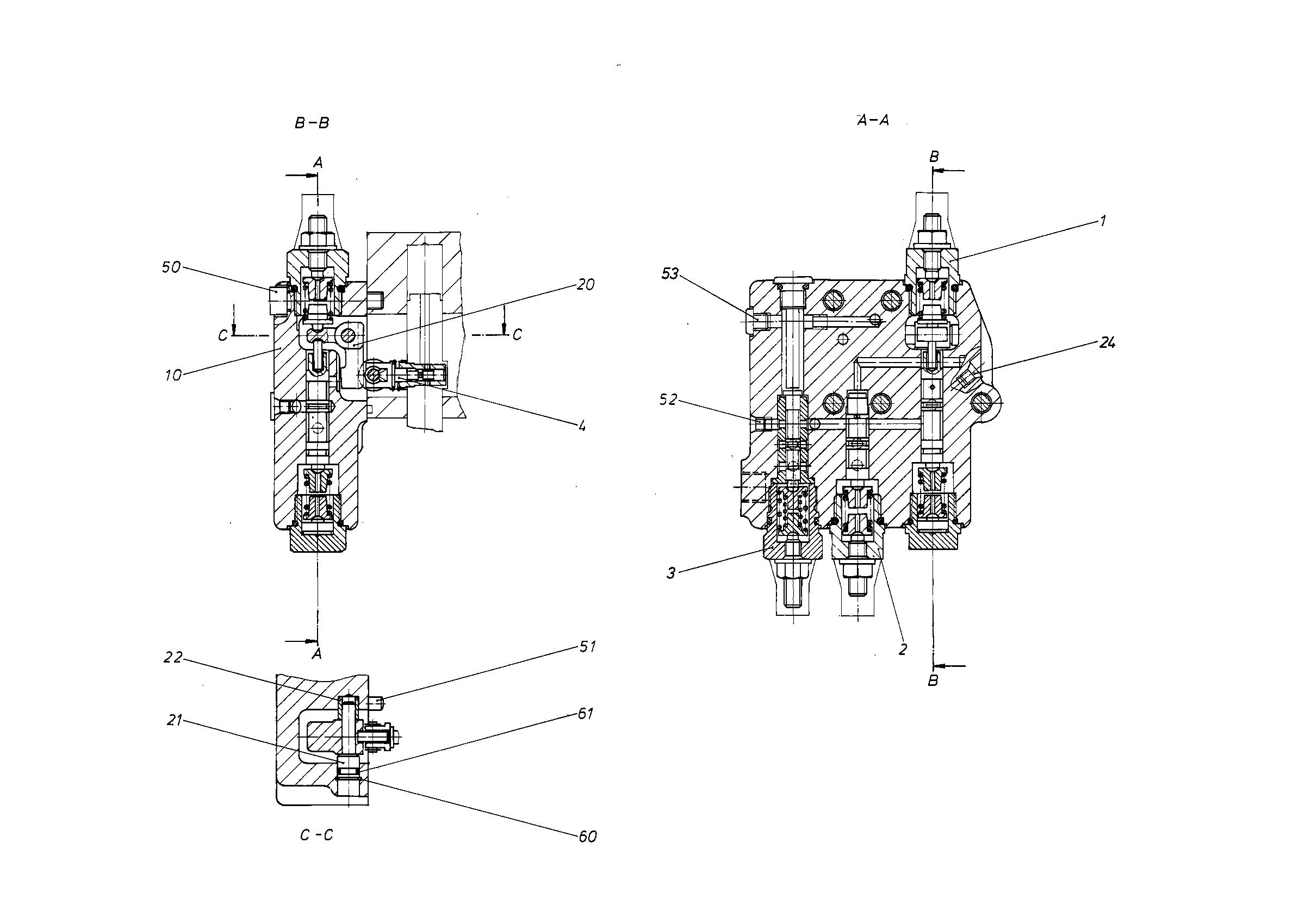

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909442848 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | |
| R909609420 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R909608980 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | ||
| R909650901 | MEASURING PISTON Stückliste der Baugruppe →L | 1 | ||
| 10 | R902032247 | CONTROL HOUSING | 1 | |
| 20 | R902122300 | ANGLE LEVER | 1 | |
| 21 | R909440788 | BEARING BOLT | 1 | |
| R909431286 | BUSHING | 1 | ||
| 24 | R909445306 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909083044 | SOCKET HEAD CAP SCREW | 5 | ||
| 51 | R909830912 | SLOTTED SPRING PIN | 2 | |
| 51 | R913009676 | STRAIGHT PIN | 2 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 7 | ||
| 53 | R909154024 | SCREW PLUGD | 1 | |
| R909087248 | RETAINING RING | 1 | ||
| 61 | R913045130 | O-RING | 1 | |
| 98 | R902002475 | SEAL KITD | 1 |
