Baugruppe

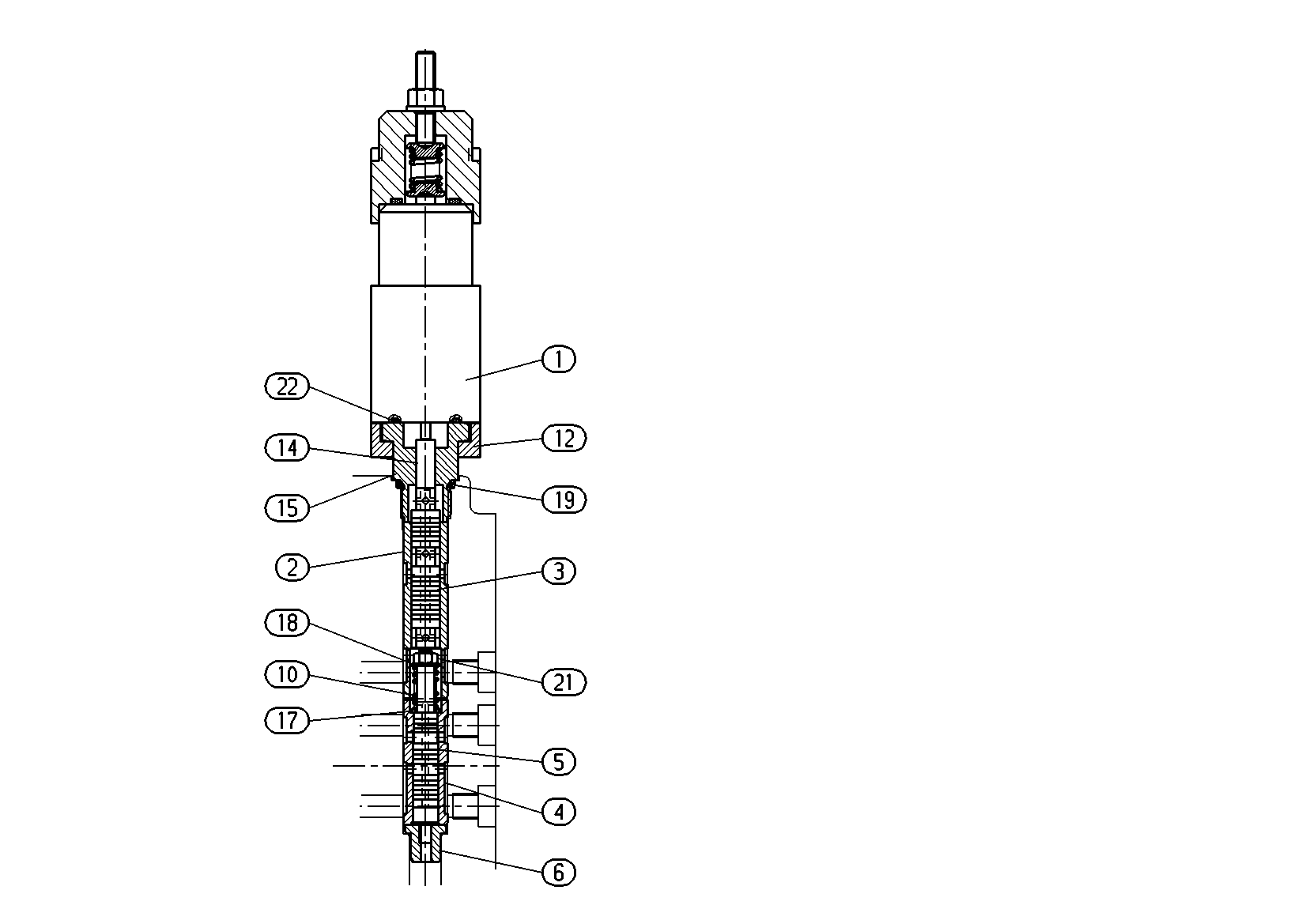

UNLOADING VALVER909601375
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909601374 | PROPORTIONAL SOLENOID Stückliste der Baugruppe →L | 1 | |
| R909921252 | CONTROL SLEEVE | 1 | ||
| R909921253 | CONTROL PISTON | 1 | ||
| R909444660 | MEASURING BUSHING | 1 | ||
| 5 | R909444661 | MEASURING PISTON | 1 | |
| R909443926 | PLUG | 1 | ||
| R909443277 | COMPRESSION SPRING | 1 | ||
| R909443761 | MOUNTING FLANGE | 1 | ||
| R909921254 | PIN | 1 | ||
| R909921256 | SCREW PLUG | 1 | ||
| R909078272 | ADJUSTMENT SHIM | 1 | ||
| 2916010109 | WASHER | 1 | ||
| 19 | R909083753 | O-RINGD | 1 | |
| R909083609 | HEXAGON NUT | 1 | ||
| R909083737 | O-RINGD | 1 |
