Baugruppe

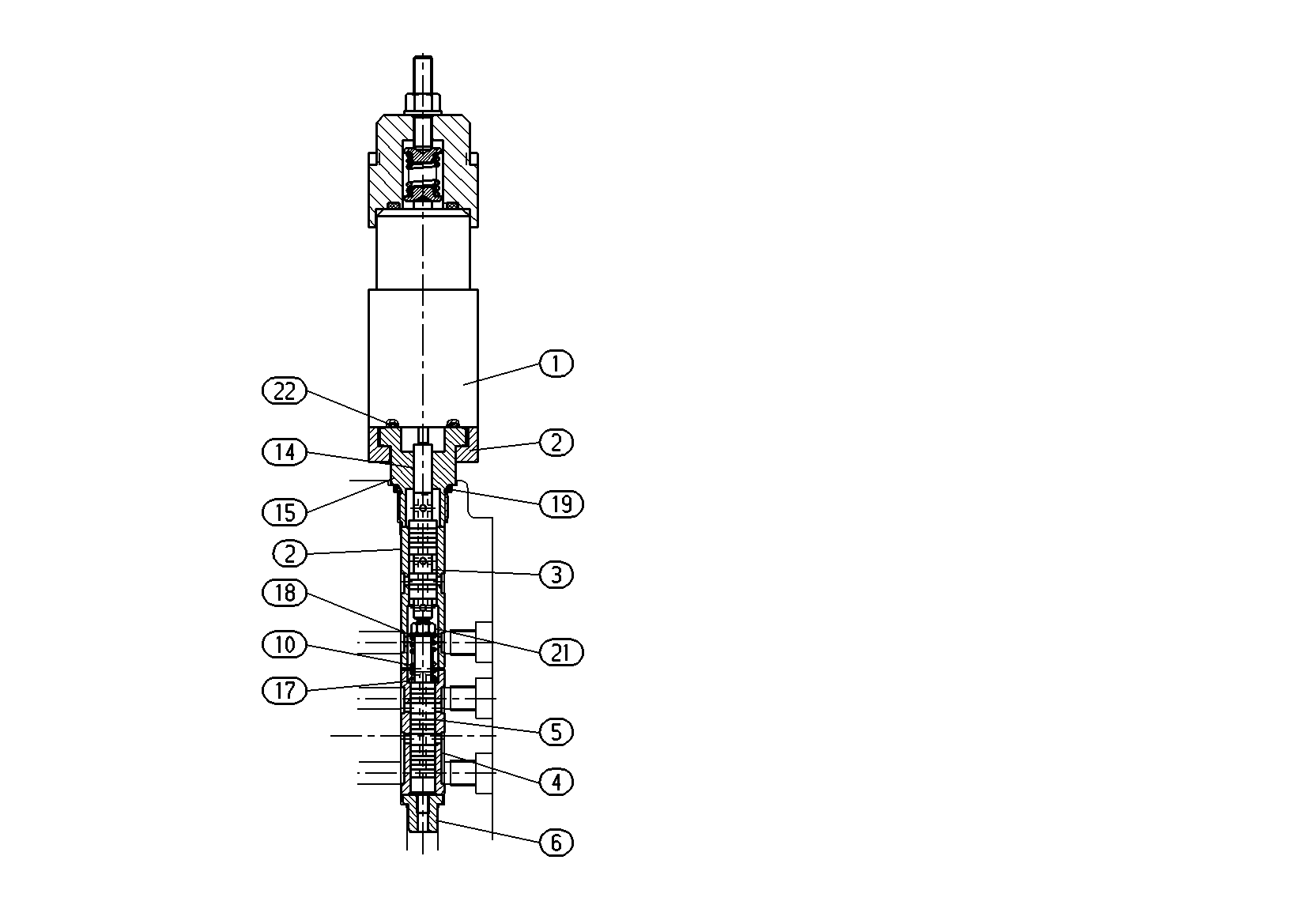

UNLOADING VALVER909601394
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909601374 | PROPORTIONAL SOLENOID Stückliste der Baugruppe →L | 1 | |
| R909921313 | CONTROL SLEEVE | 1 | ||
| R909921314 | CONTROL PISTON | 1 | ||
| 4 | R909444660 | MEASURING BUSHING | 1 | |
| R909444661 | MEASURING PISTON | 1 | ||
| R909443926 | PLUG | 1 | ||
| R909443277 | COMPRESSION SPRING | 1 | ||
| 12 | R909443761 | MOUNTING FLANGE | 1 | |
| R909921254 | PIN | 1 | ||
| R909921256 | SCREW PLUG | 1 | ||
| 17 | R909078272 | ADJUSTMENT SHIM | 1 | |
| 2916010109 | WASHER | 1 | ||
| R909083753 | O-RINGD | 1 | ||
| R909083609 | HEXAGON NUT | 1 | ||
| R909083737 | O-RINGD | 1 |
