Baugruppe

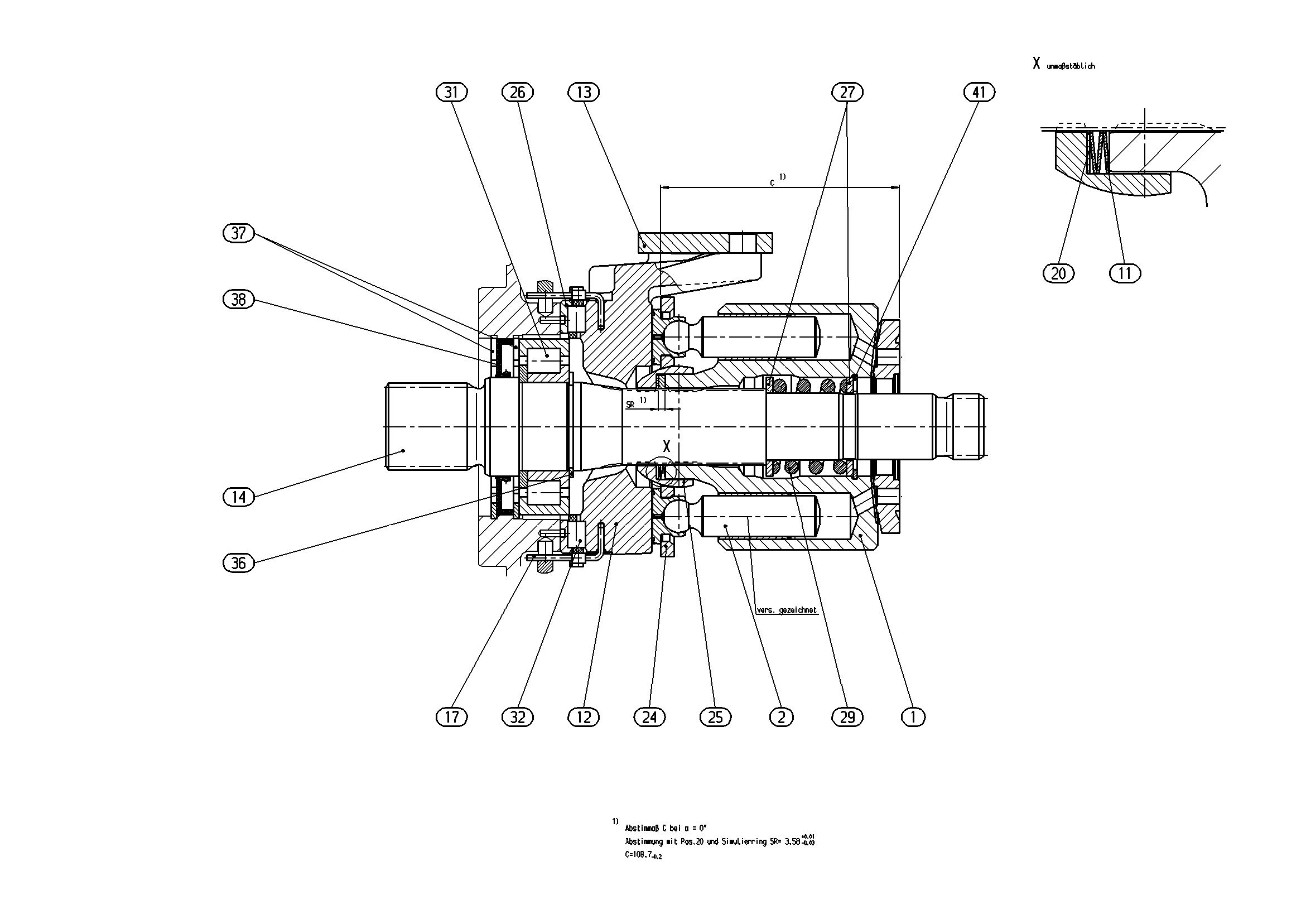

ROTARY GROUPR909602002
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909443974 | CYLINDER Stückliste der Baugruppe →L | 1 | ||
| R909416736 | PISTON PAD | 9 | ||
| 11 | R902192957 | CUP-SPRING STACK | 1 | |
| R909443361 | CRADLE | 1 | ||
| R909449810 | SLIDER | 1 | ||
| R909921936 | DRIVE SHAFT | 1 | ||
| R909076233 | WIRE | 2 | ||
| R909432987 | SHIM RING | 1 | ||
| R909432988 | SHIM RING | 1 | ||
| R909432989 | SHIM RING | 1 | ||
| R909432990 | SHIM RING | 1 | ||
| R902205454 | RETAINING PLATE | 1 | ||
| R909921905 | RETAINING BALL | 1 | ||
| R902066586 | BEARING SHELL PAIR | 1 | ||
| R909921903 | WASHER | 2 | ||
| R909435254 | COMPRESSION SPRING | 1 | ||
| 31 | R909153104 | CYL. ROLLER BEARING | 1 | |
| R909830152 | CAGE PAIR | 1 | ||
| R909083362 | RETAINING RING | 1 | ||
| R902600001 | RETAINING RING | 2 | ||
| R902601794 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909083403 | RETAINING RING | 1 | ||
| 98 | R902002389 | SEAL KIT | 1 |
