Baugruppe

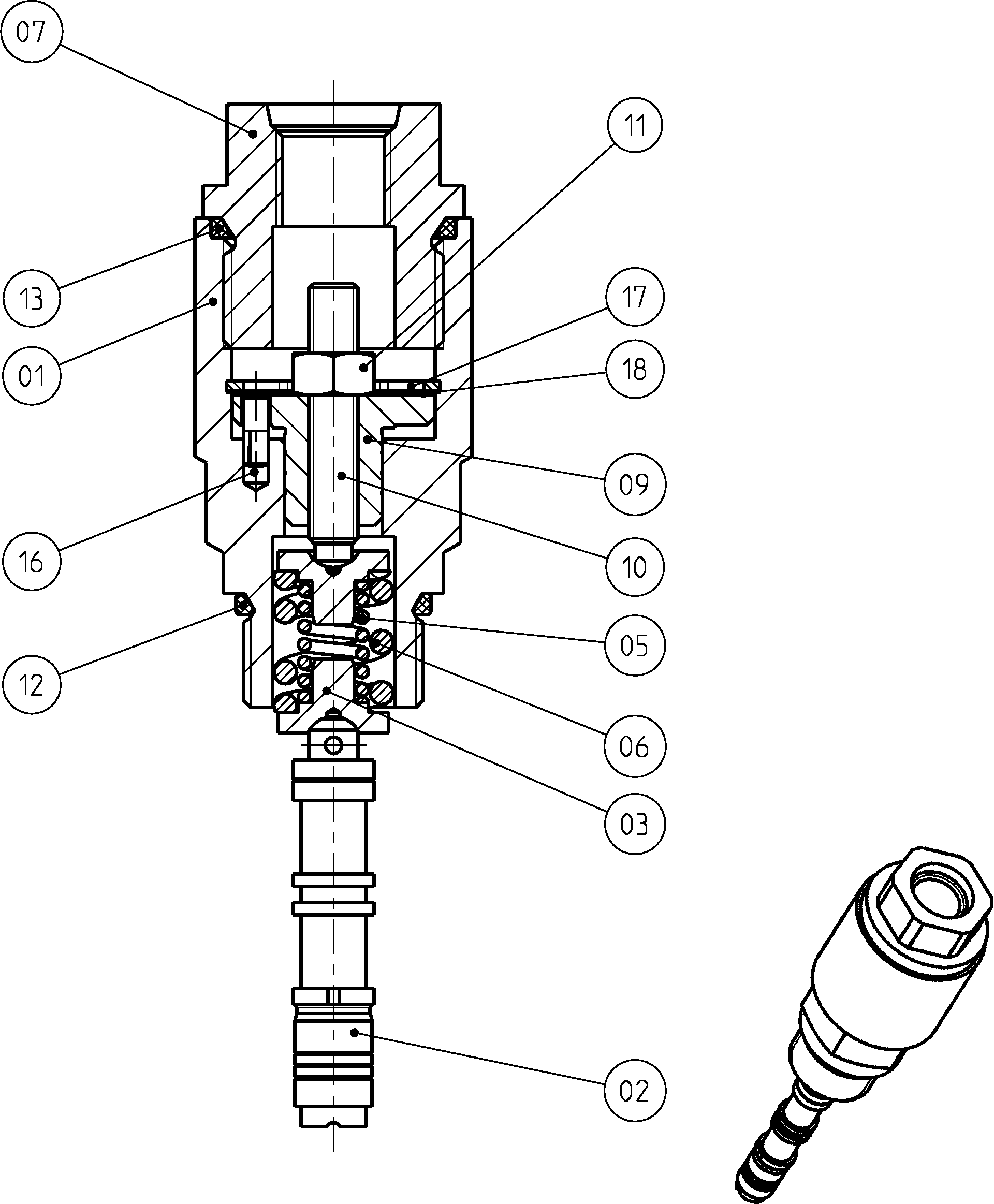

CONTROL ELEMENTR909602572
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902012888 | THREADED FASTENER | 1 | |
| 2 | R902004621 | CONTROL PISTON | 1 | |
| 3 | R909444160 | SPRING BOLT | 2 | |
| 5 | R909436395 | COMPRESSION SPRING | 1 | |
| 6 | R909436795 | COMPRESSION SPRING | 1 | |
| R909425628 | CONNECTING PIECE | 1 | ||
| 9 | R909435642 | POSITIONING PISTON | 1 | |
| R909443525 | SETSCREW | 1 | ||
| R909083611 | HEXAGON NUT | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909085625 | HALF LENGTH TPR GRVD DOWEL PIN | 1 | ||
| R909083387 | RETAINING RING | 1 | ||
| R909154322 | SHIM RING | 1 | ||
| R909154323 | SHIM RING | 1 | ||
| R909156050 | SHIM RING | 1 |
