Baugruppe

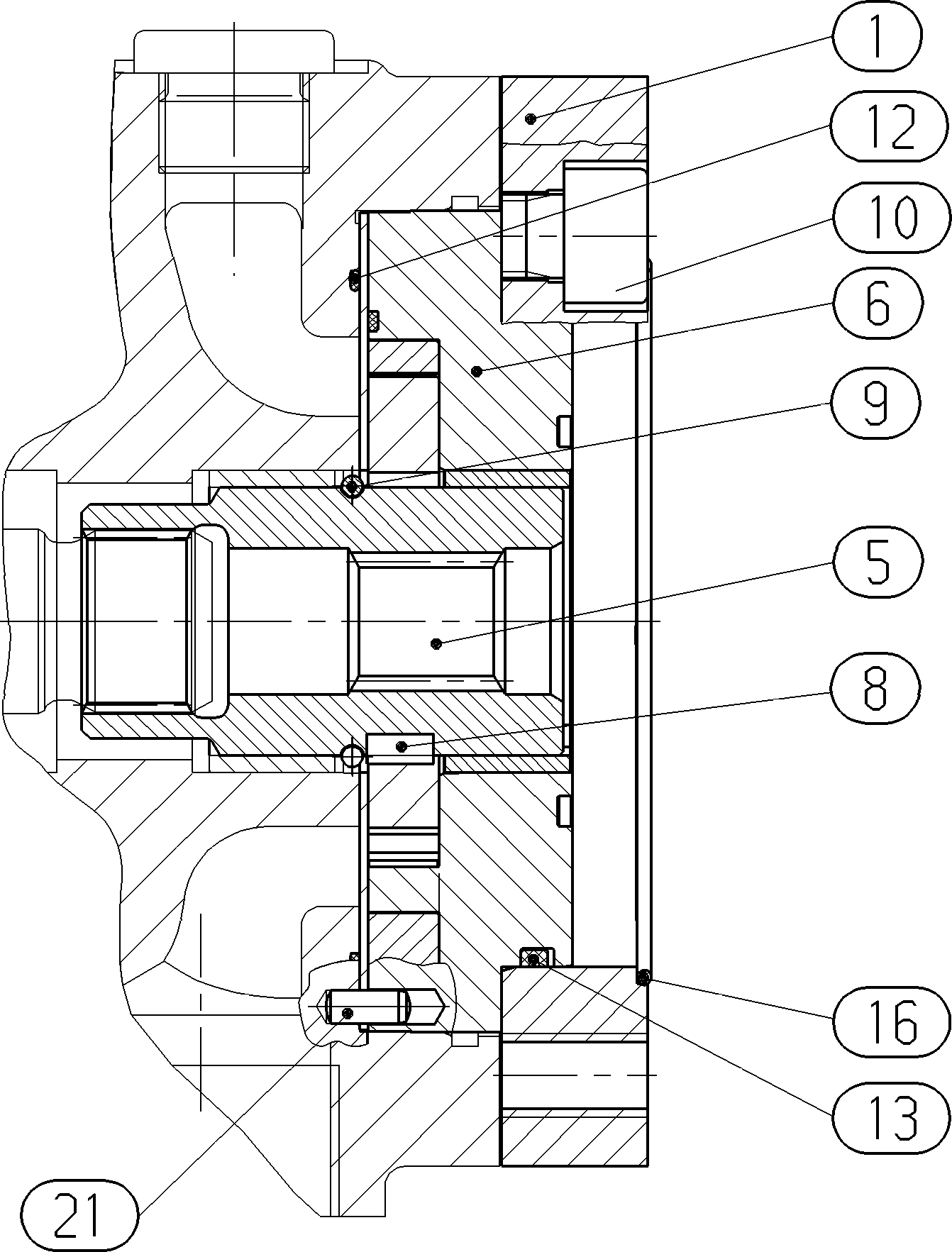

INTERNAL GEAR PUMPR909602827
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902252430 | INTERMEDIATE FLANGE | 1 | ||
| R902013438 | THROUGH DRIVE SHAFT | 1 | ||
| R902103350 | HOUSING Stückliste der Baugruppe →L | 1 | ||
| R902252407 | PARALLEL KEY | 1 | ||
| — | SNAP RING | 1 | ||
| R909083058 | SOCKET HEAD CAP SCREW | 4 | ||
| — | KANTSEALD | 1 | ||
| R909084504 | O-RINGD | 1 | ||
| — | O-RINGD | 1 | ||
| R913009663 | STRAIGHT PIN | 1 | ||
| 98 | R902002448 | SEAL KIT | 1 |
