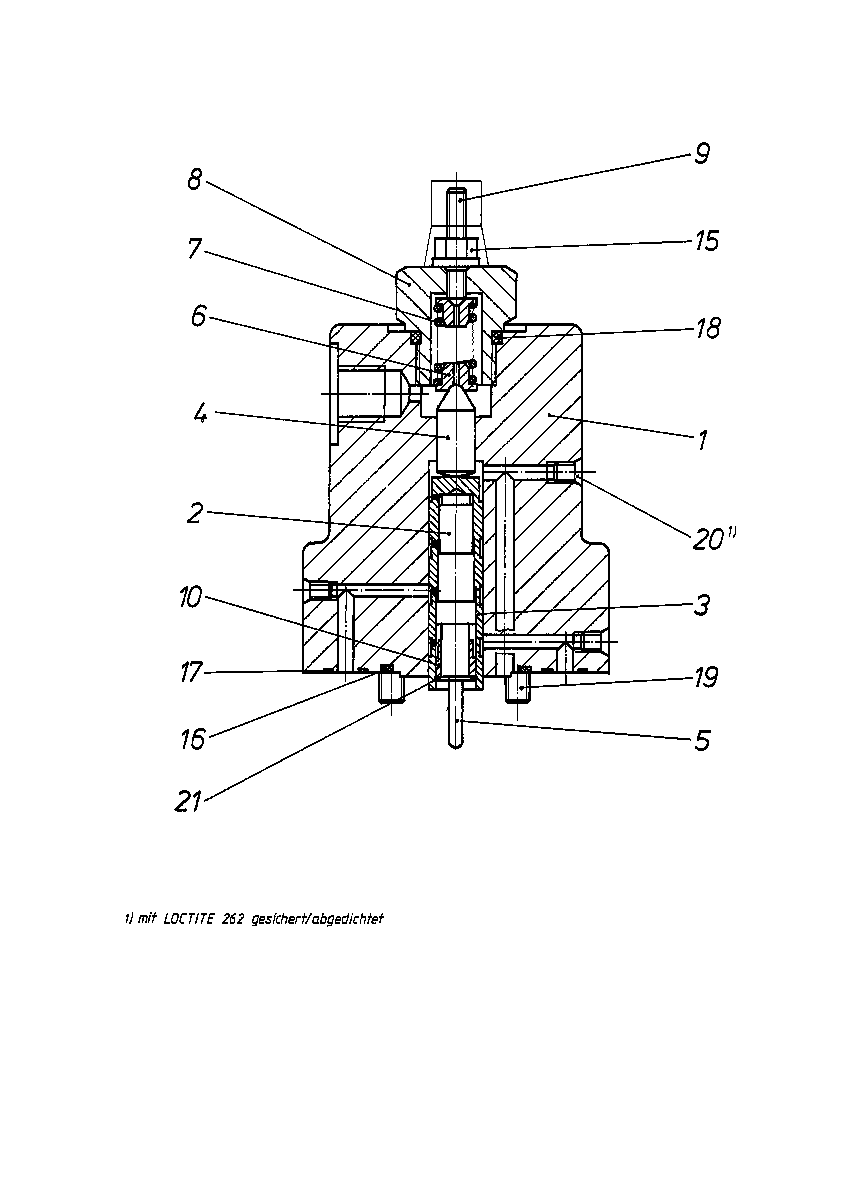

Baugruppe
CONTROL UNITR909603037
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909449536 | CONTROL HOUSING | 1 | |
| 2 | R909449576 | CONTROL PISTON | 1 | |
| 3 | R909449575 | CONTROL SLEEVE | 1 | |
| 4 | R909436378 | POSITIONING PISTON | 1 | |
| 5 | R909444096 | PIN | 1 | |
| 6 | R909430649 | SPRING DISK | 2 | |
| 7 | R909430587 | COMPRESSION SPRING | 1 | |
| 8 | R909436380 | SCREW PLUG | 1 | |
| 9 | R909420991 | SETSCREW | 1 | |
| R909449584 | BUSHING | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909086730 | O-RINGD | 1 | ||
| R909086498 | O-RINGD | 2 | ||
| R909083757 | O-RINGD | 1 | ||
| R909086080 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 2 | ||
| 21 | R909156476 | SNAP RING | 1 |
