Baugruppe
CONTROLR909603101

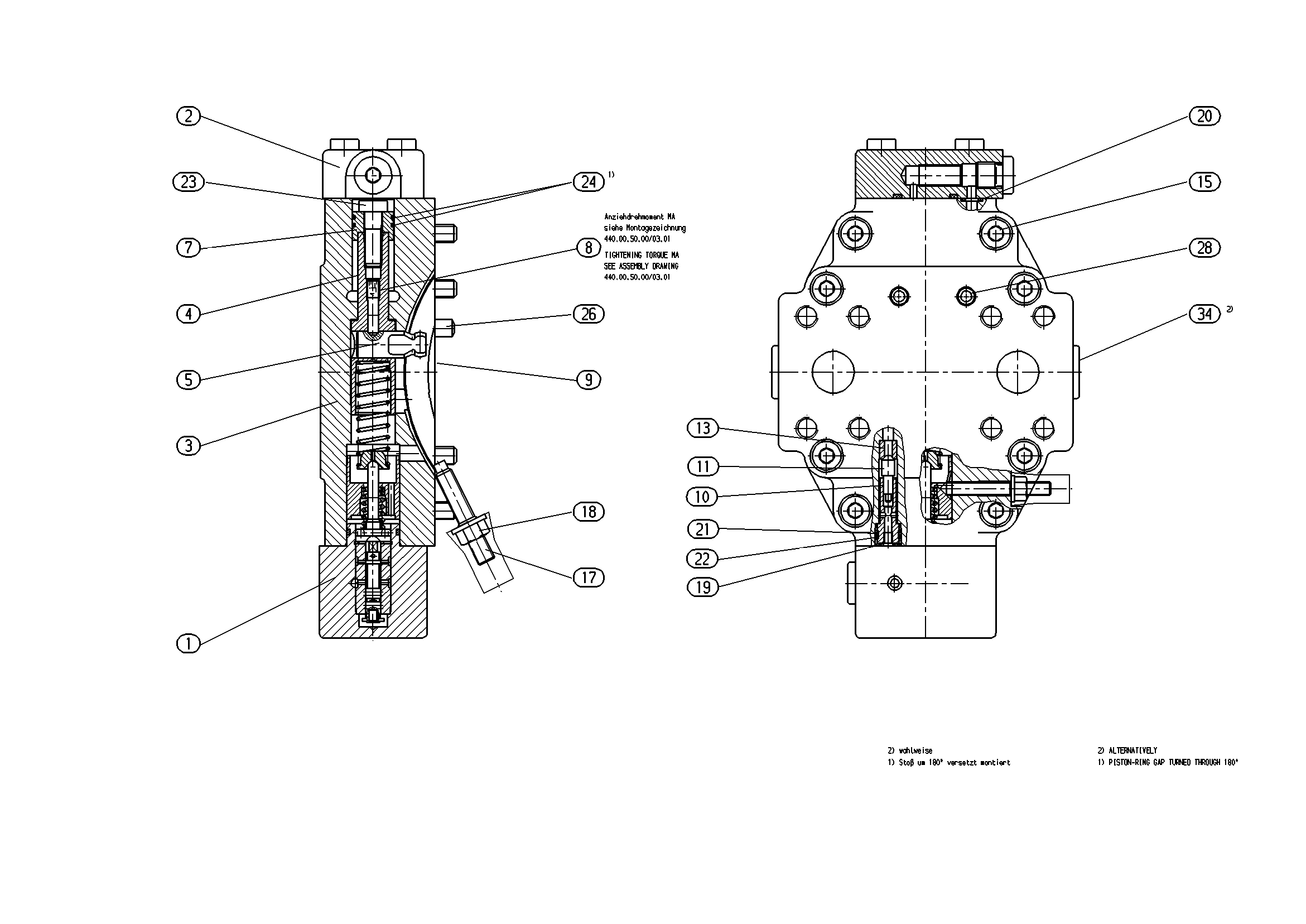

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909603102 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909447695 | COVER Stückliste der Baugruppe →L M2 | 1 | ||
| R909449523 | COVER PLATE | 1 | ||
| R909449741 | POSITIONING PISTON | 1 | ||
| R909422909 | POSITIONING STUD | 1 | ||
| R909444826 | PISTON | 1 | ||
| R909444828 | SETSCREW | 1 | ||
| R909449789 | SEALD | 1 | ||
| R909422896 | VALVE GUIDE | 2 | ||
| R909426662 | BOLT | 2 | ||
| R902209845 | BUSHING | 2 | ||
| R909083045 | SOCKET HEAD CAP SCREW | 8 | ||
| R909446875 | SETSCREW Stückliste der Baugruppe →L | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909083723 | O-RINGD | 2 | ||
| R909086380 | O-RINGD | 3 | ||
| R909086380 | O-RINGD | 2 | ||
| R909083191 | SOCKET HEAD CAP SCREW | 1 | ||
| R909087997 | R-RINGD | 2 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
