Baugruppe

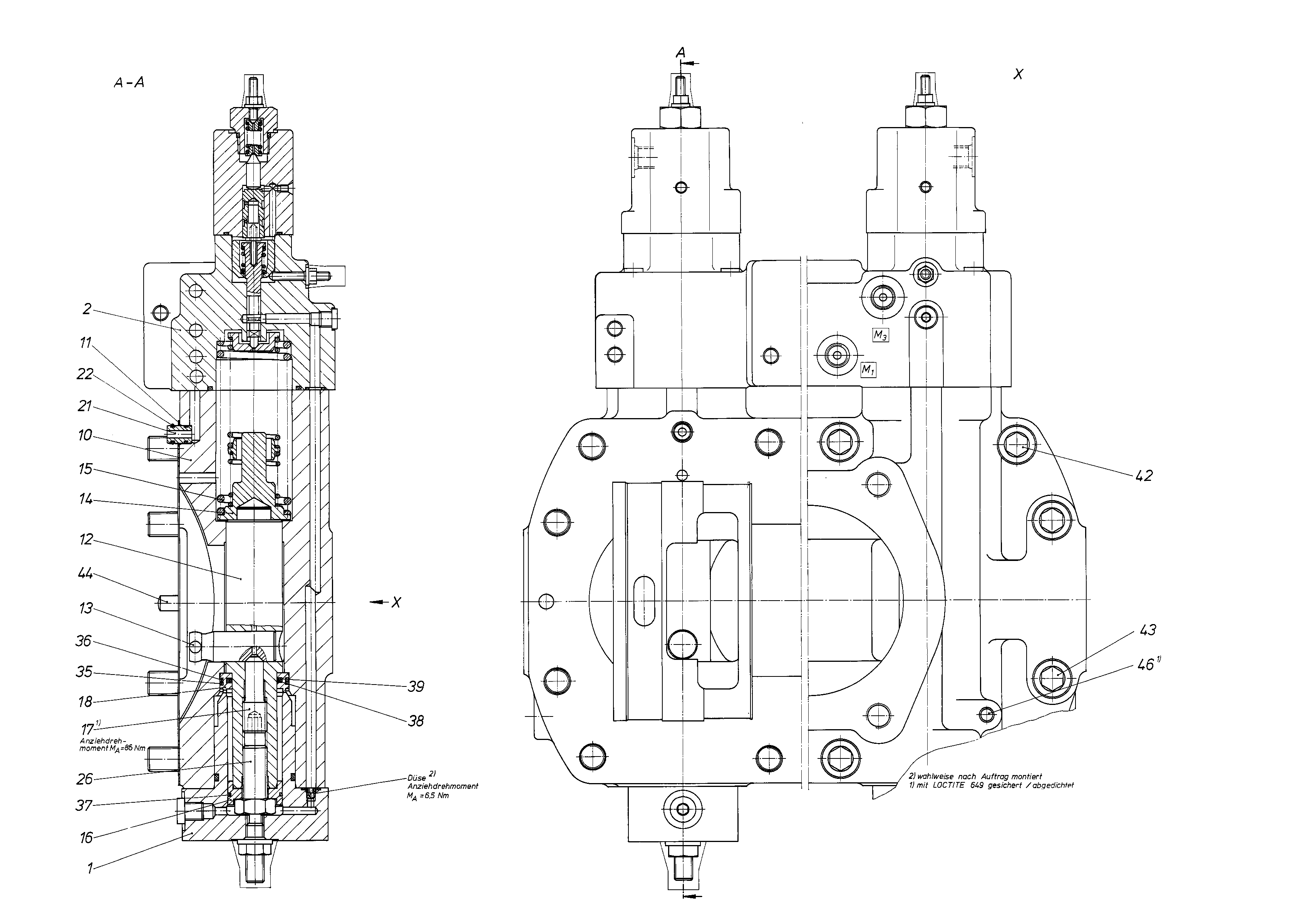

CONTROLR909603328
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909603324 | COVER Stückliste der Baugruppe →L | 2 | ||
| R909603329 | CONTROL UNIT Stückliste der Baugruppe →L | 1 | ||
| R909921023 | CONTROL HOUSING | 1 | ||
| R909651475 | SEALD | 1 | ||
| R909921021 | POSITIONING PISTON | 2 | ||
| R909425458 | POSITIONING STUD | 2 | ||
| R909432512 | SPRING DISK | 2 | ||
| R909432558 | COMPRESSION SPRING | 2 | ||
| R909430148 | PISTON | 2 | ||
| R909445016 | SETSCREW | 2 | ||
| R909430147 | SEAL RING | 2 | ||
| R909086150 | HEXAGON SCREW | 2 | ||
| R909086334 | O-RINGD | 2 | ||
| R909157785 | BACKUP RINGD | 2 | ||
| R909156647 | R-RINGD | 2 | ||
| R909157786 | ROD SEALD | 2 | ||
| R909152146 | O-RINGD | 2 | ||
| R909083136 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083142 | SOCKET HEAD CAP SCREW | 4 | ||
| R913007909 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 |
