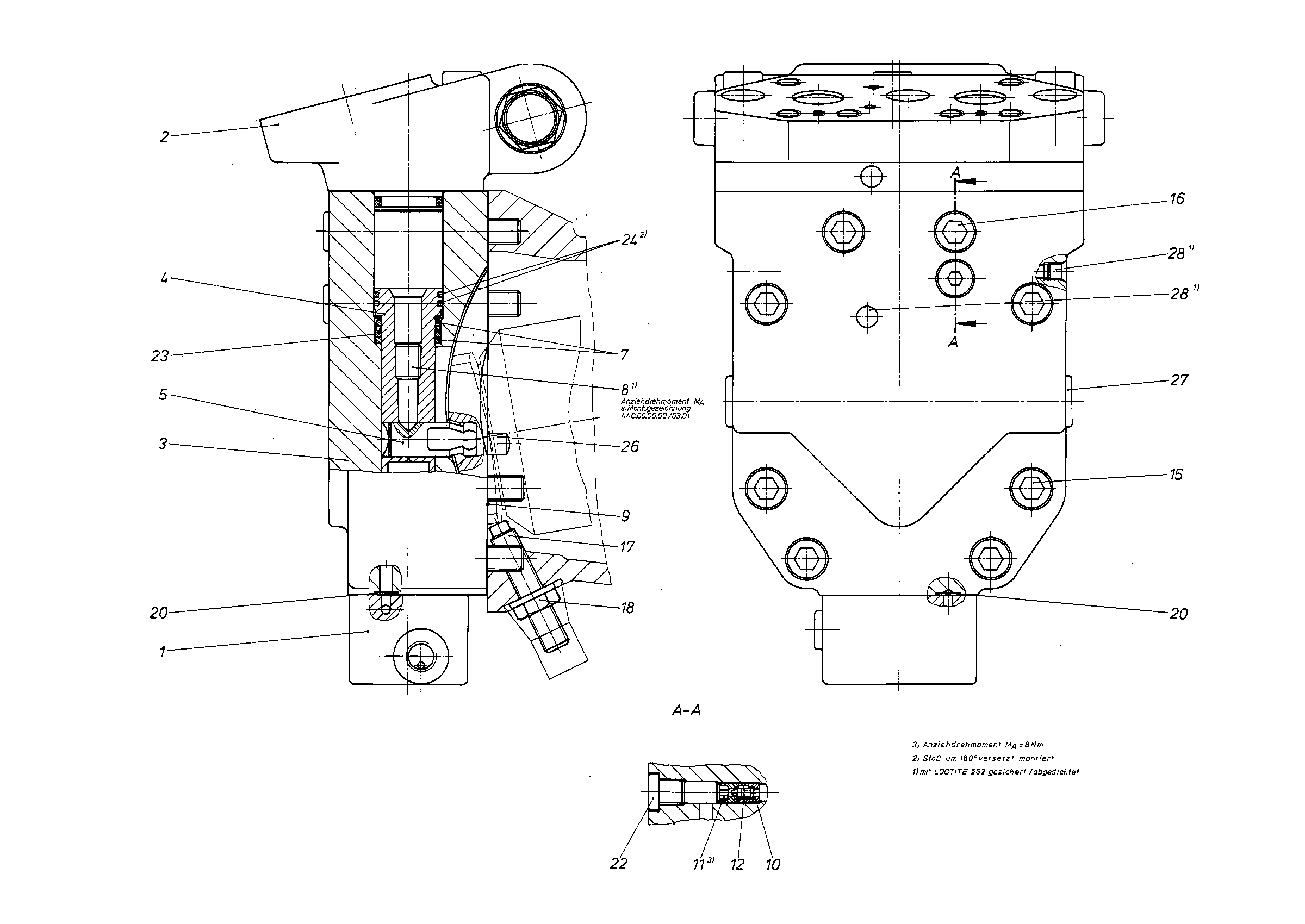

Baugruppe
CONTROLR909603589
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909603590 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| 2 | R909437875 | CONNECTION COVER Stückliste der Baugruppe →L | 1 | |
| 3 | R909439145 | COVER PLATE | 1 | |
| 4 | R909424089 | POSITIONING PISTON | 1 | |
| R909422021 | POSITIONING STUD | 1 | ||
| 7 | R909424090 | BACKUP RING | 2 | |
| R909445922 | SETSCREW | 1 | ||
| 9 | R909449480 | SEALD | 1 | |
| 10 | R909400263 | THROTTLE SCREW | 1 | |
| 11 | R909400264 | THROTTLE SCREW | 1 | |
| 12 | R909410814 | THROTTLE PIN | 1 | |
| 15 | R909083131 | SOCKET HEAD CAP SCREW | 4 | |
| 16 | R909083144 | SOCKET HEAD CAP SCREW | 4 | |
| R909446862 | SETSCREW Stückliste der Baugruppe →L | 1 | ||
| 18 | R909152459 | SEALING NUTD | 1 | |
| R909086498 | O-RINGD | 4 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| 23 | R909156542 | ROD SEALD | 1 | |
| 24 | R909156479 | R-RINGD | 2 | |
| R913009666 | STRAIGHT PIN | 2 | ||
| 27 | R909153815 | SCREW PLUGD | 2 | |
| 28 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 |
