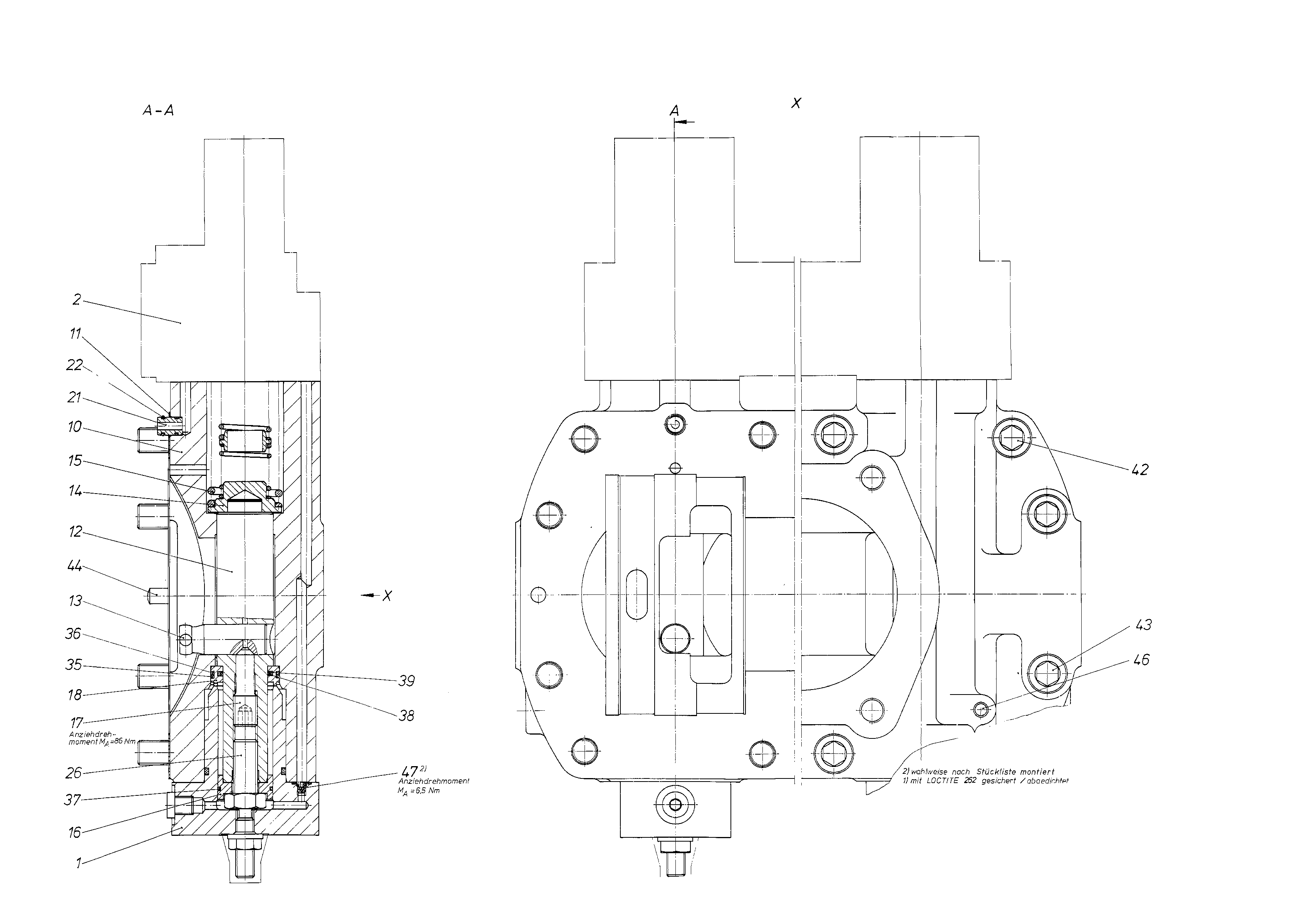

Baugruppe
CONTROLR909603614
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909446602 | COVER Stückliste der Baugruppe →L | 2 | ||
| R909603616 | CONTROL UNIT Stückliste der Baugruppe →L | 1 | ||
| 10 | R909436270 | CONTROL HOUSING | 1 | |
| 11 | R909651475 | SEALD | 1 | |
| 12 | R909430144 | POSITIONING PISTON | 2 | |
| 13 | R909425458 | POSITIONING STUD | 2 | |
| 14 | R909444578 | SPRING DISK | 2 | |
| 15 | R909432558 | COMPRESSION SPRING | 2 | |
| R909430148 | PISTON | 2 | ||
| 17 | R909408958 | SETSCREW | 2 | |
| R909430147 | SEAL RING | 2 | ||
| 21 | R909436679 | SEAL BUSHING | 1 | |
| 22 | R909085709 | O-RINGD | 2 | |
| 26 | R909086150 | HEXAGON SCREW | 2 | |
| R909086334 | O-RINGD | 2 | ||
| 36 | R909157785 | BACKUP RINGD | 2 | |
| R909156647 | R-RINGD | 2 | ||
| 38 | R909157786 | ROD SEALD | 2 | |
| R909152146 | O-RINGD | 2 | ||
| 42 | R909083136 | SOCKET HEAD CAP SCREW | 8 | |
| R909083142 | SOCKET HEAD CAP SCREW | 4 | ||
| 44 | R913007909 | STRAIGHT PIN | 2 | |
| 46 | R909831319 | DOUBLE BREAK-OFF PLUG | 3 |
