Baugruppe

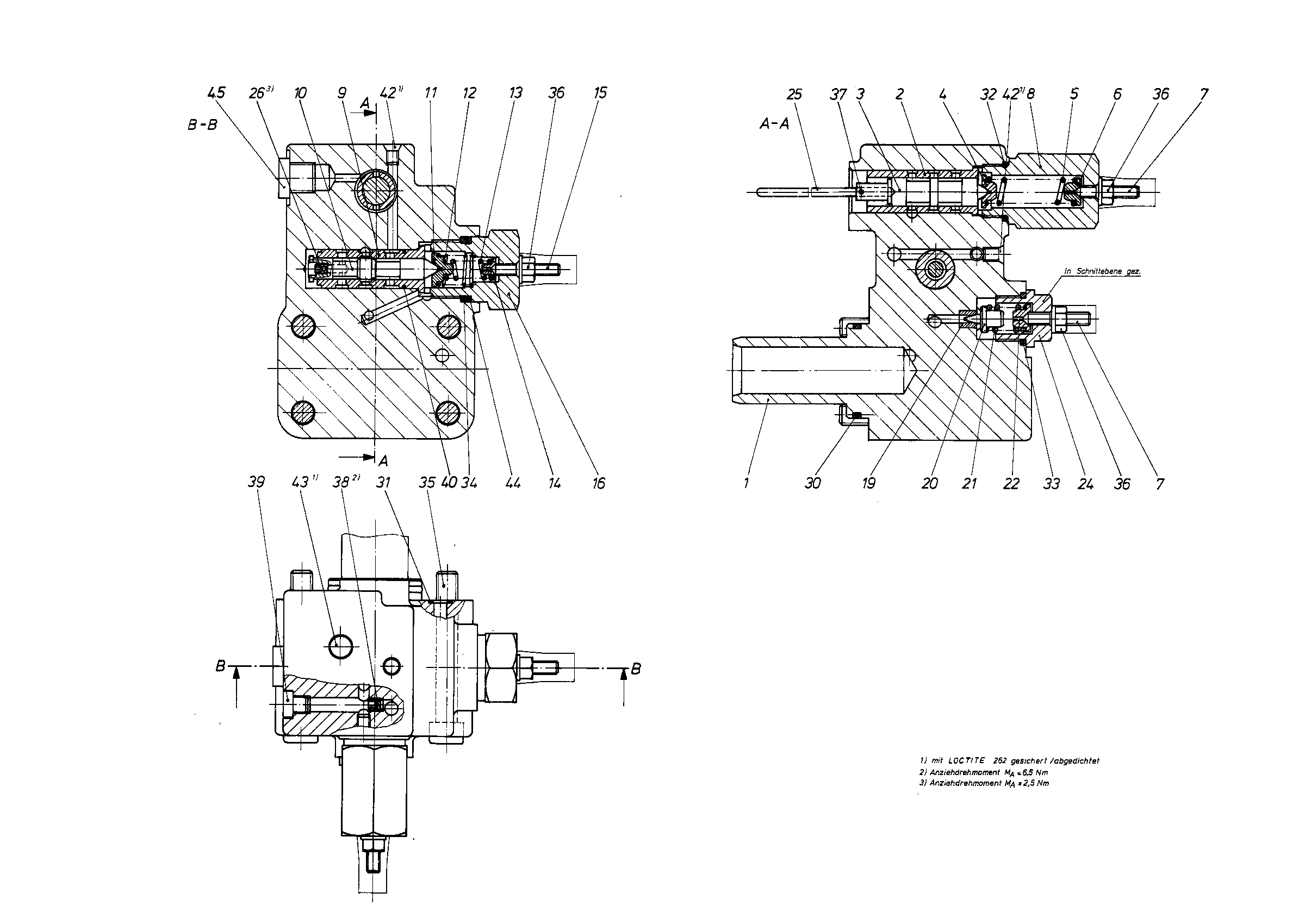

CONTROL UNITR909603629
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909449519 | CONTROL HOUSING | 1 | ||
| R909436593 | CONTROL SLEEVE | 1 | ||
| 3 | R909444000 | CONTROL PISTON | 1 | |
| R909431526 | SPRING DISK | 1 | ||
| R909435520 | COMPRESSION SPRING | 1 | ||
| 6 | R909449205 | SPRING DISK | 1 | |
| R909420991 | SETSCREW | 2 | ||
| 8 | R909435522 | SCREW PLUG | 1 | |
| R909444564 | CONTROL SLEEVE | 1 | ||
| 10 | R909443934 | CONTROL PISTON | 1 | |
| R909418698 | SPRING DISK | 1 | ||
| R909410091 | COMPRESSION SPRING | 1 | ||
| R909432906 | COMPRESSION SPRING | 1 | ||
| R909422325 | SPRING DISK | 1 | ||
| 15 | R909421402 | SETSCREW | 1 | |
| R909435552 | SCREW PLUG | 1 | ||
| R909415904 | BUSHING | 1 | ||
| 20 | R902011673 | VALVE CONE | 1 | |
| 21 | R909431771 | COMPRESSION SPRING | 1 | |
| 22 | R909449205 | SPRING DISK | 1 | |
| 24 | R909443089 | SCREW PLUG | 1 | |
| 25 | R909439670 | PIN | 1 | |
| 25 | R909444560 | PIN | 1 | |
| 25 | R909444561 | PIN | 1 | |
| 25 | R902038646 | PIN | 1 | |
| 26 | R902276325 | THROTTLE SCREW | 1 | |
| 30 | R909083769 | O-RINGD | 1 | |
| 31 | R909086498 | O-RINGD | 3 | |
| 32 | R909086517 | O-RINGD | 1 | |
| 33 | R909083758 | O-RINGD | 1 | |
| 34 | R909083797 | O-RINGD | 1 | |
| 35 | R909083071 | SOCKET HEAD CAP SCREW | 4 | |
| R909152425 | SEALING NUTD | 3 | ||
| 37 | R902600212 | SLOTTED SPRING PIN | 1 | |
| 38 | R909156492 | NOZZLE | 1 | |
| R909154024 | SCREW PLUGD | 1 | ||
| 40 | R909156358 | R-RINGD | 1 | |
| 42 | R909831318 | DOUBLE BREAK-OFF PLUG | 3 | |
| 43 | R909831319 | DOUBLE BREAK-OFF PLUG | 4 | |
| R909087626 | BACKUP RINGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 |
