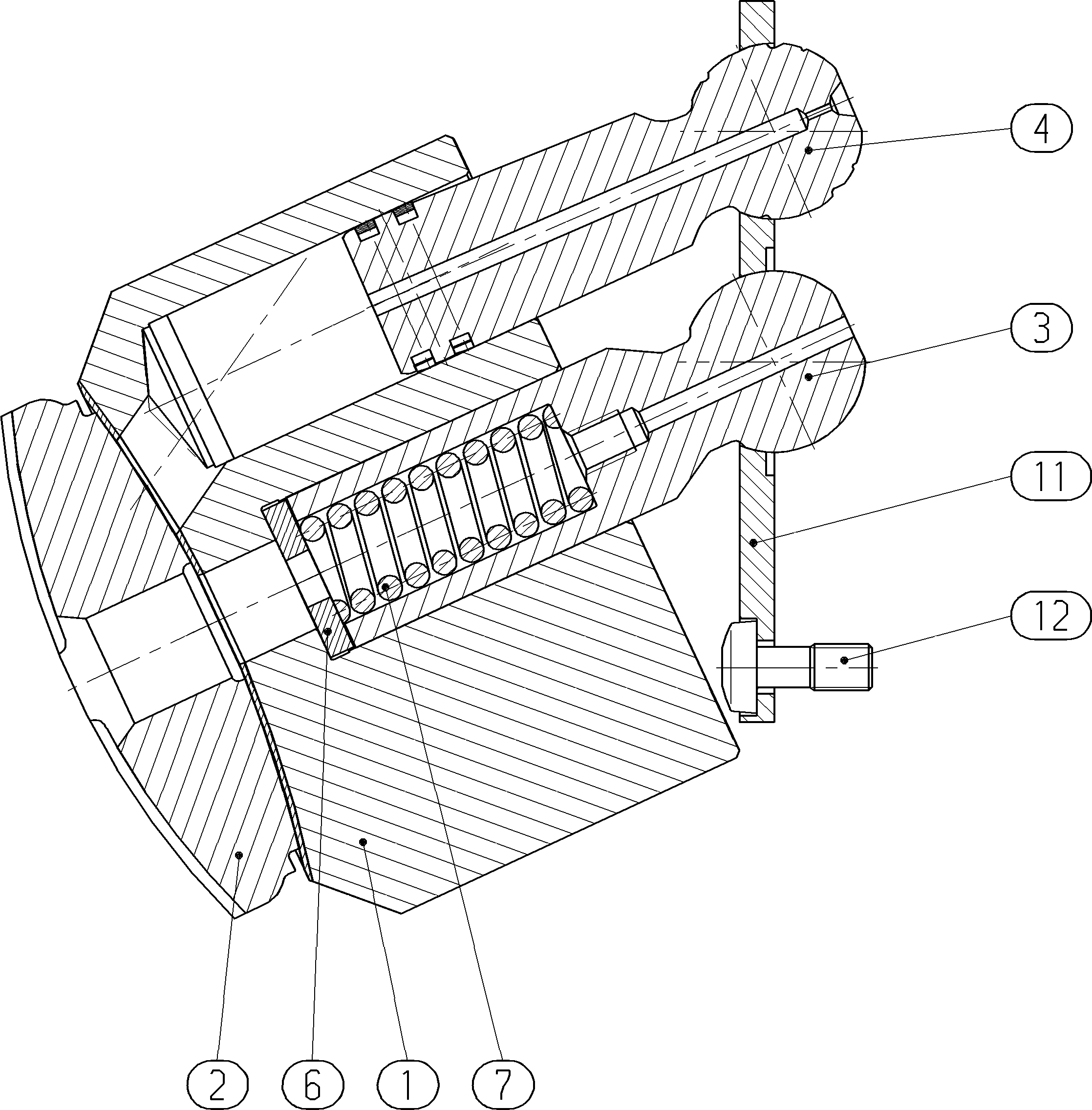

Baugruppe
ROTARY GROUPR909603885
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909650689 | CYLINDER | 1 | ||
| R909921789 | CONTROL LENS | 1 | ||
| R909921604 | CENTER PIN | 1 | ||
| R902036677 | PISTON | 7 | ||
| R909921577 | ADJUSTMENT SHIM | 1 | ||
| R909921578 | ADJUSTMENT SHIM | 1 | ||
| R909921579 | ADJUSTMENT SHIM | 1 | ||
| R909921580 | ADJUSTMENT SHIM | 1 | ||
| R909921581 | ADJUSTMENT SHIM | 1 | ||
| R909921582 | ADJUSTMENT SHIM | 1 | ||
| R909921583 | COMPRESSION SPRING | 1 | ||
| R902036644 | RETAINING PLATE | 1 | ||
| R902602715 | PAN-HEAD SCREW | 7 |
