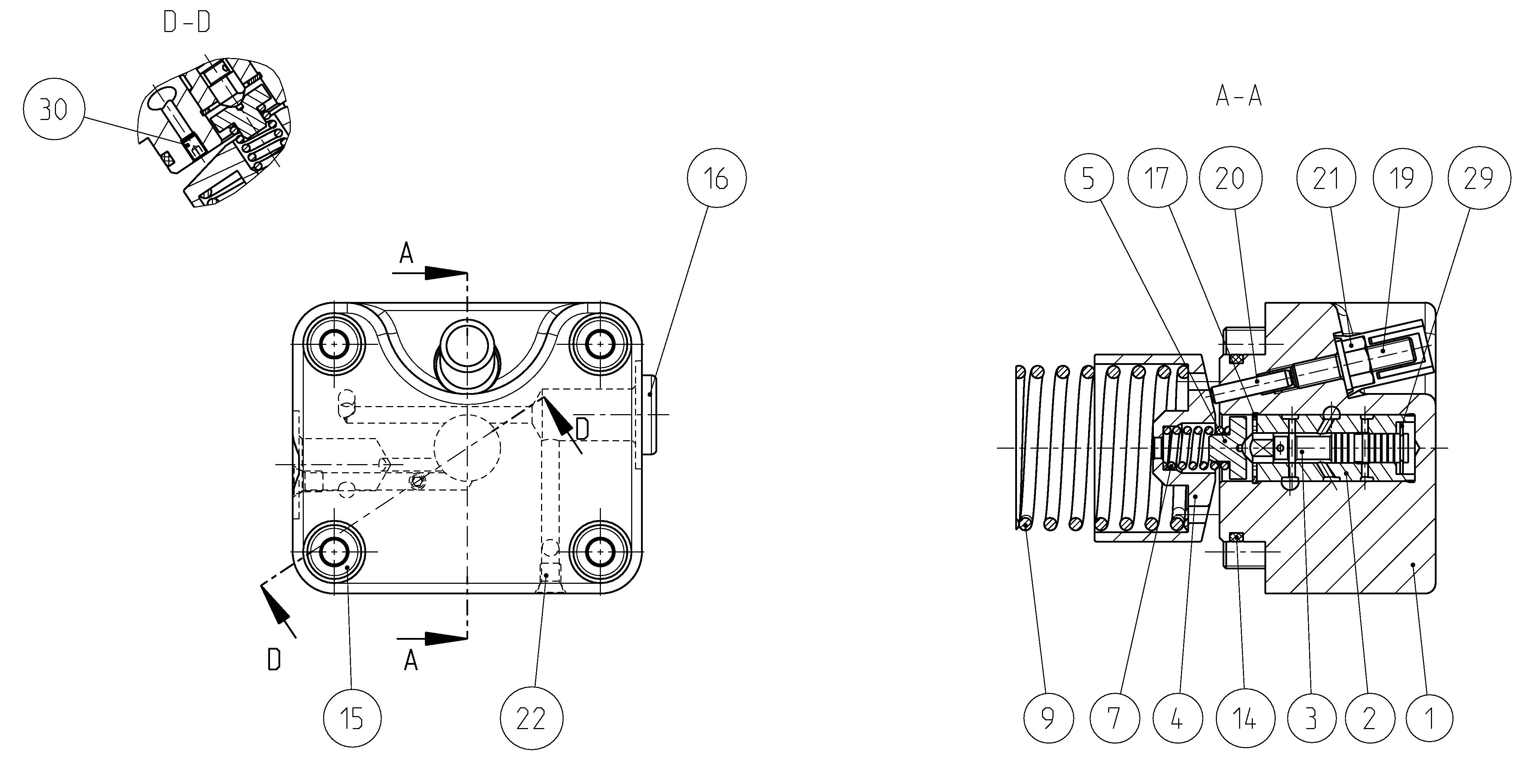

Baugruppe
CONTROL PARTR909604334
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902206793 | CONTROL HOUSING | 1 | ||
| R909419418 | CONTROL SLEEVE | 1 | ||
| R902073972 | CONTROL PISTON | 1 | ||
| R909651119 | ADJUSTING BUSHING | 1 | ||
| R909921351 | SPRING DISK | 1 | ||
| R909413198 | SPRING DISK | 1 | ||
| R909921419 | COMPRESSION SPRING | 1 | ||
| 8 | R909432199 | COMPRESSION SPRING | 1 | |
| R909651117 | COMPRESSION SPRING | 1 | ||
| R909085560 | O-RINGD | 1 | ||
| R909083042 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087165 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909085812 | LOCKING WASHER | 1 | ||
| R909440268 | THROTTLE SCREW | 1 |
