Baugruppe

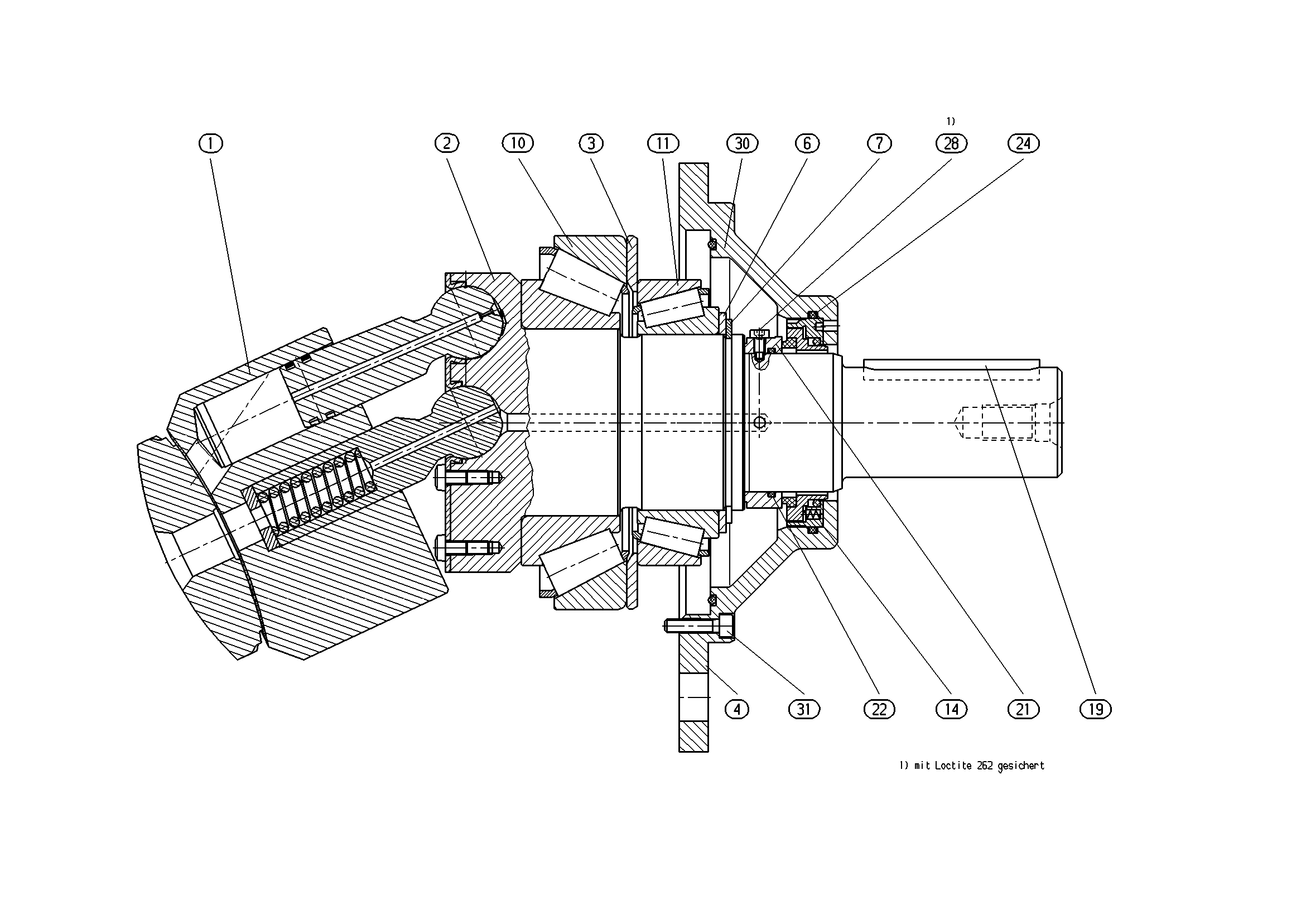

ROTARY GROUPR909605087
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909603992 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R909650195 | DRIVE SHAFT | 1 | ||
| R909651659 | SHIM RING | 1 | ||
| R909650173 | HOUSING COVER | 1 | ||
| R909921766 | SUPPORTING DISC | 1 | ||
| R909921767 | SUPPORTING DISC | 1 | ||
| R909921768 | SUPPORTING DISC | 1 | ||
| R909921769 | SUPPORTING DISC | 1 | ||
| R909921770 | SUPPORTING DISC | 1 | ||
| R909921771 | SUPPORTING DISC | 1 | ||
| R909921772 | SUPPORTING DISC | 1 | ||
| R909921773 | SUPPORTING DISC | 1 | ||
| R909086744 | RETAINING RING | 1 | ||
| R909157196 | TAPERED-ROLLER BEARING | 1 | ||
| R909157197 | TAPERED-ROLLER BEARING | 1 | ||
| R909153684 | SLIDE RING SEALD | 1 | ||
| R909083996 | PARALLEL KEY | 1 | ||
| R909650194 | COUNTER RINGD | 1 | ||
| R909154655 | O-RINGD | 1 | ||
| R909157980 | O-RINGD | 1 | ||
| R909650099 | HEXAGON SCREWD | 1 | ||
| R909156675 | O-RINGD | 1 | ||
| R909156524 | SOCKET HEAD CAP SCREW | 4 |
