Baugruppe

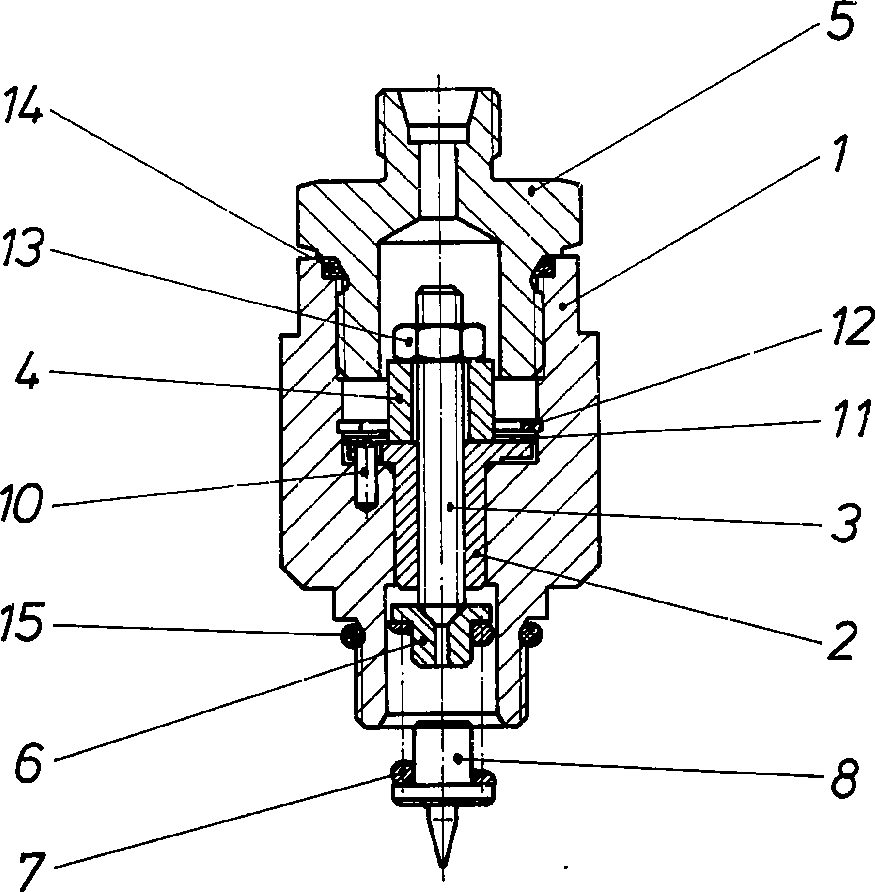

SEQUENCE VALVER909605595
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909650646 | THREADED FASTENER | 1 | ||
| R909430297 | POSITIONING PISTON | 1 | ||
| R909426324 | SETSCREW | 1 | ||
| R909402605 | WASHER | 1 | ||
| R909650645 | CONNECTING PIECE | 1 | ||
| R909449205 | SPRING DISK | 1 | ||
| R909431771 | COMPRESSION SPRING | 1 | ||
| R902011673 | VALVE CONE | 1 | ||
| R909085625 | HALF LENGTH TPR GRVD DOWEL PIN | 1 | ||
| R909156049 | SHIM RING | 1 | ||
| R909083387 | RETAINING RING | 1 | ||
| R909083611 | HEXAGON NUT | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909083758 | O-RINGD | 1 |
