Baugruppe

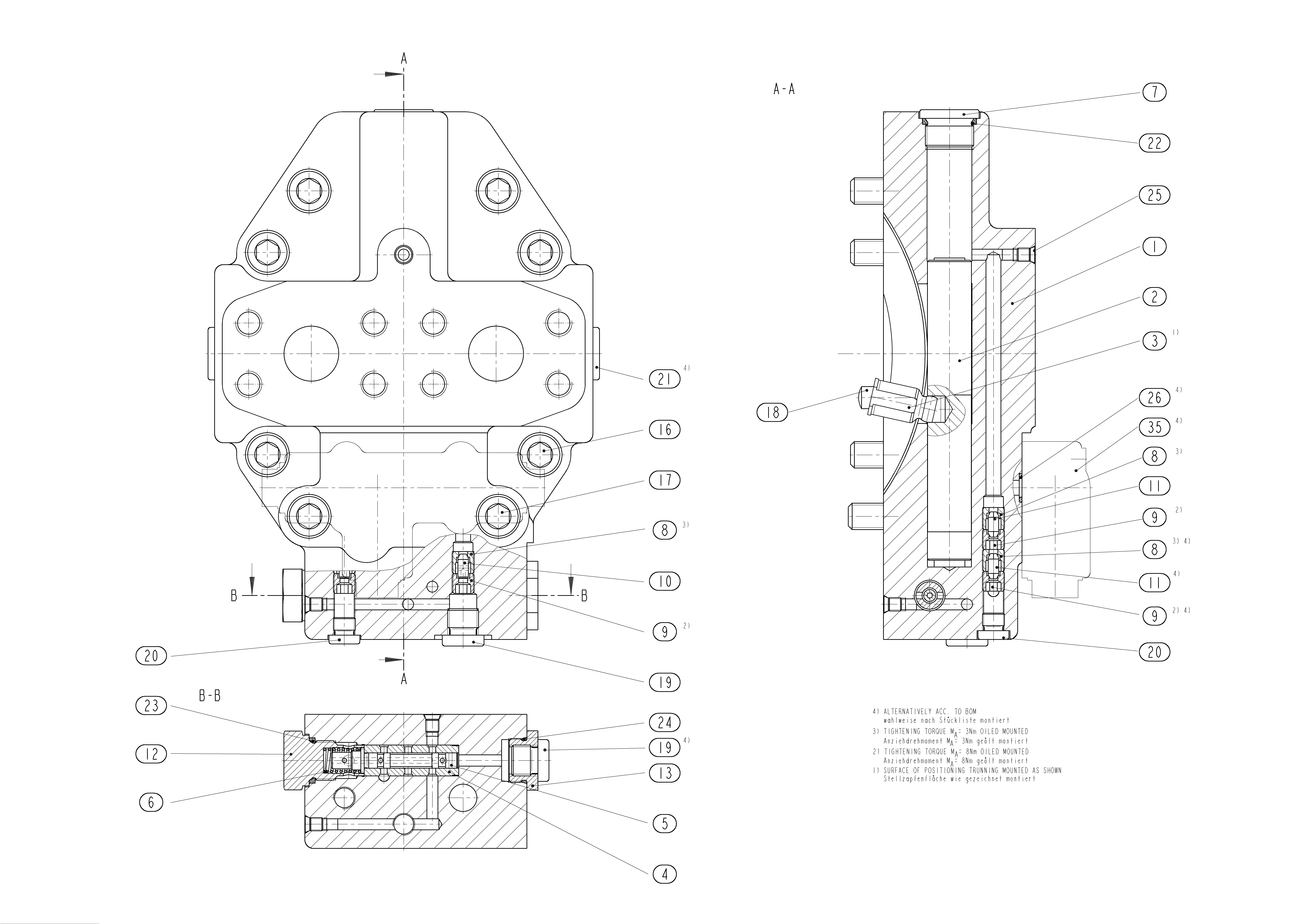

CONTROLR909605805
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909651409 | COVER PLATE | 1 | ||
| R909921970 | POSITIONING PISTON | 1 | ||
| R909650145 | POSITIONING STUD | 1 | ||
| R909921975 | CONTROL SLEEVE | 1 | ||
| R909921999 | CONTROL PISTON | 1 | ||
| R909445946 | COMPRESSION SPRING | 1 | ||
| R909443855 | SCREW PLUG | 1 | ||
| R909400263 | THROTTLE SCREW | 3 | ||
| R909400264 | THROTTLE SCREW | 3 | ||
| R909439287 | VALVE PIN | 2 | ||
| R909446625 | THROTTLE PIN Stückliste der Baugruppe →L | 1 | ||
| R902009712 | SCREW PLUG | 1 | ||
| R909922008 | THREADED REDUCING STUD | 1 | ||
| R909083092 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083097 | SOCKET HEAD CAP SCREW | 2 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| R909156649 | SCREW PLUGD | 2 | ||
| R909154235 | O-RINGD | 1 | ||
| R909087891 | O-RINGD | 1 | ||
| — | O-RINGD | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909086487 | O-RINGD | 3 | ||
| 36 | R902002929 | FLUSH/BOOST PRESSURE VALVE Stückliste der Baugruppe →L | 1 |
