Baugruppe

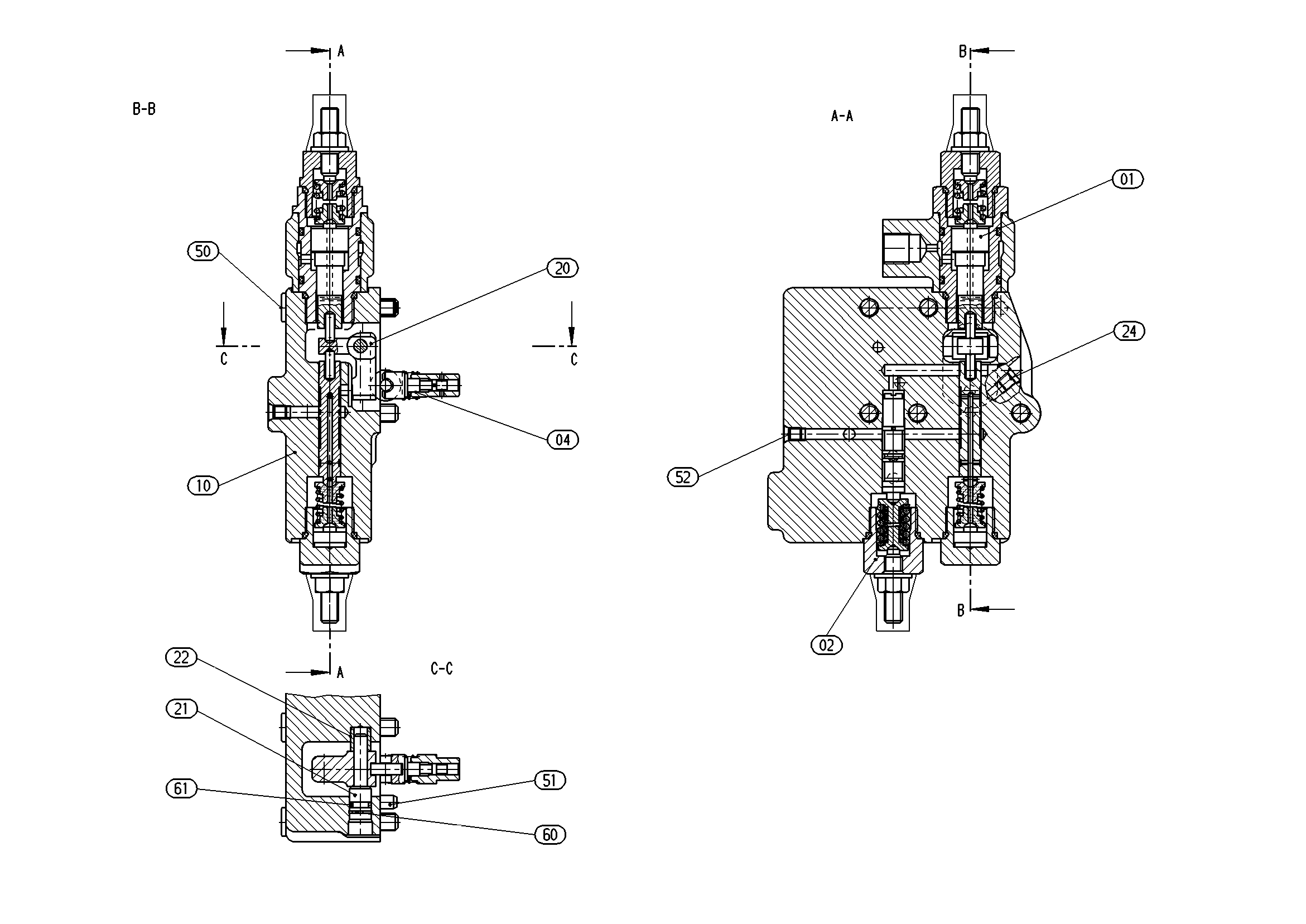

REGULATORR909606020
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909606019 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | |
| 2 | R909609420 | CONTROL ELEMENT Stückliste der Baugruppe →L | 1 | |
| 4 | R902012650 | MEASURING PISTON Stückliste der Baugruppe →L | 1 | |
| R902028219 | CONTROL HOUSING | 1 | ||
| R902122301 | ANGLE LEVER | 1 | ||
| R909440788 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R909445306 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083043 | SOCKET HEAD CAP SCREW | 5 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909087248 | RETAINING RING | 1 | ||
| R913045130 | O-RING | 1 | ||
| 98 | R902002462 | SEAL KITD | 1 |
