Baugruppe

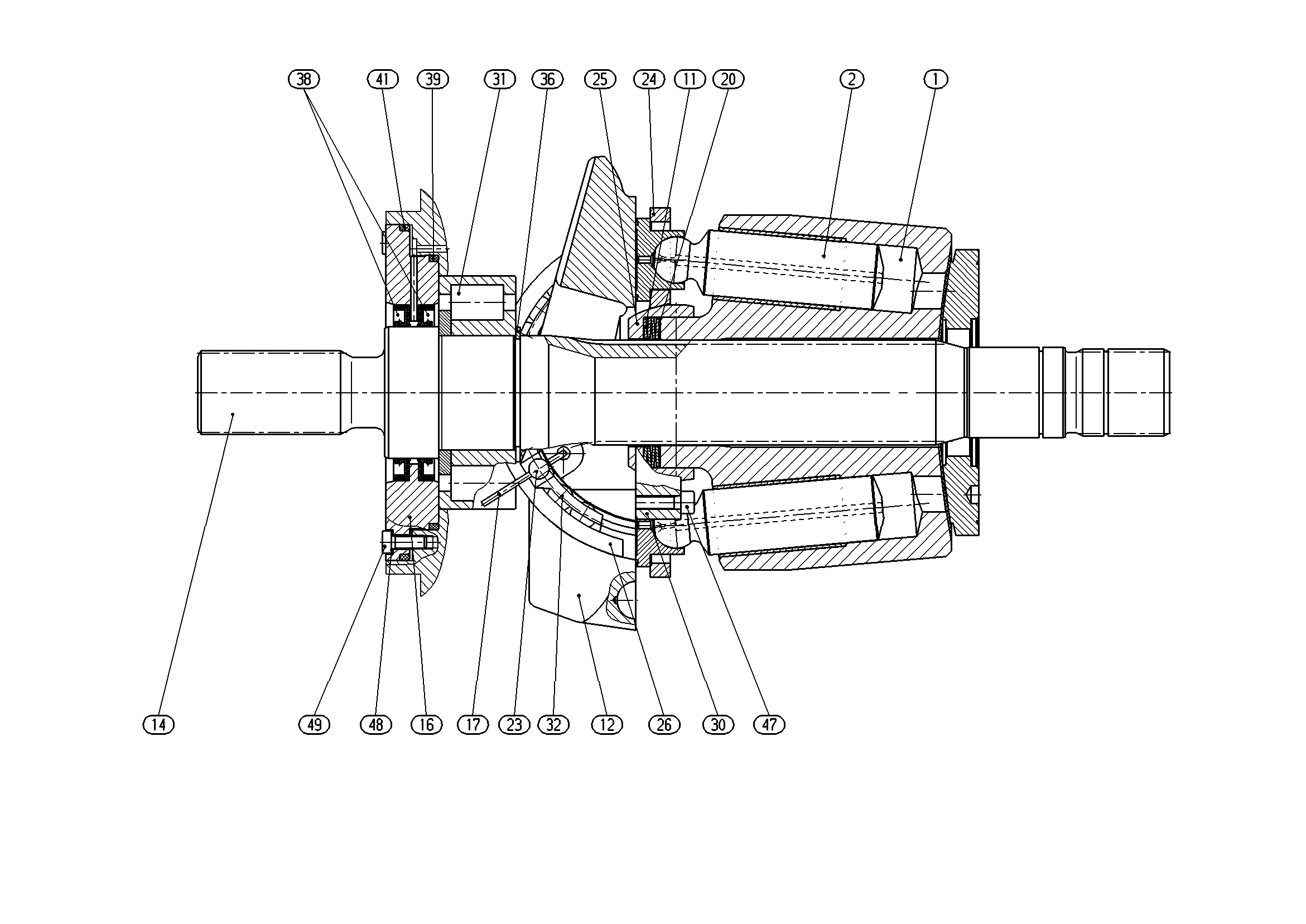

ROTARY GROUPR909607600
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902005858 | CYLINDER Stückliste der Baugruppe →L | 1 | |
| R909444896 | PISTON PAD | 9 | ||
| 11 | R909431528 | CUP-SPRING STACK | 1 | |
| 12 | R909921186 | CRADLE | 1 | |
| R909650666 | DRIVE SHAFT | 1 | ||
| R909432909 | LOCKING RING | 1 | ||
| 17 | R909403549 | WIRE | 4 | |
| R909431548 | SHIM RING | 1 | ||
| R909431549 | SHIM RING | 1 | ||
| R909431550 | SHIM RING | 1 | ||
| R909431551 | SHIM RING | 1 | ||
| R909443548 | IDLE ROLLER | 4 | ||
| R902205487 | RETAINING PLATE | 1 | ||
| R909431243 | RETAINING BALL | 1 | ||
| R902066600 | BEARING SHELL PAIR | 1 | ||
| R909431293 | RETAINING SEGMENT | 2 | ||
| R909157194 | CYL. ROLLER BEARING | 1 | ||
| R909831303 | CAGE PAIR | 1 | ||
| R909150122 | RETAINING RING | 1 | ||
| R909831662 | ROTARY SHAFT LIP SEALD | 2 | ||
| R909152647 | O-RINGD | 1 | ||
| 41 | R909087850 | O-RINGD | 1 | |
| R909831331 | SOCKET HEAD CAP SCREW | 4 | ||
| R909152271 | SEAL RINGD | 4 | ||
| 49 | R909083187 | SOCKET HEAD CAP SCREW | 4 | |
| 98 | R902002459 | SEAL KIT | 1 |
