Baugruppe

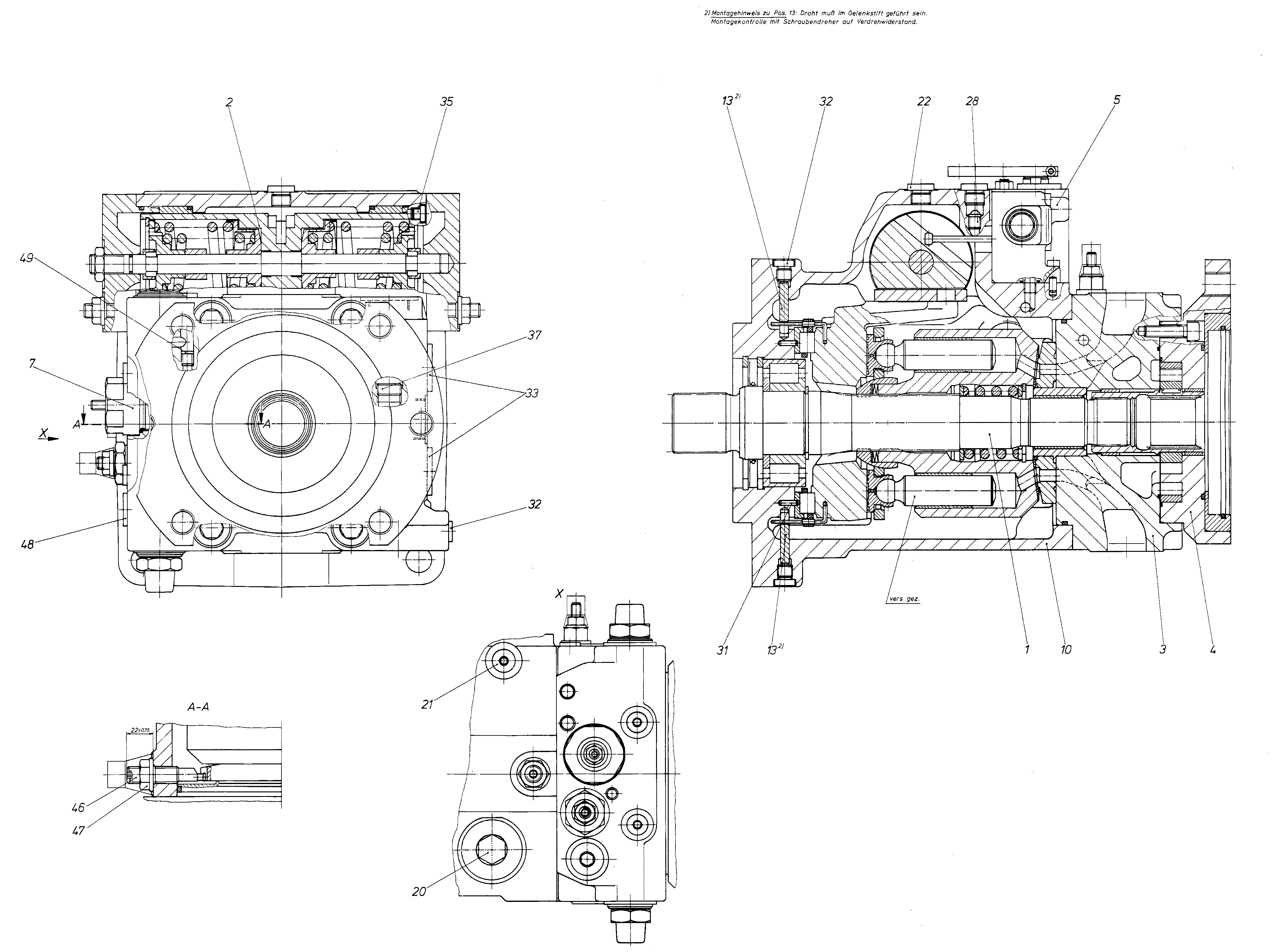

AXIAL-PISTON PUMPR909608298
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909607946 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R909447653 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R909608997 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R909606246 | INTERNAL GEAR PUMP Stückliste der Baugruppe →L | 1 | ||
| R902033626 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R909446560 | CONTROL CARTRIDGE Stückliste der Baugruppe →L | 1 | ||
| R902252373 | HOUSING | 1 | ||
| R902118898 | PIVOT PIN | 2 | ||
| R909153862 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 3 | ||
| R909426703 | NOZZLE | 2 | ||
| R913016375 | SLOTTED SPRING PIN | 2 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909153861 | SCREW PLUGD | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909156570 | SCREW PLUG | 1 | ||
| R909435693 | ECCENTRIC SCREW | 1 | ||
| R909152975 | SEALING NUTD | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909426708 | NOZZLE | 1 | ||
| 98 | R902095539 | SEAL KIT | 1 |
