Baugruppe

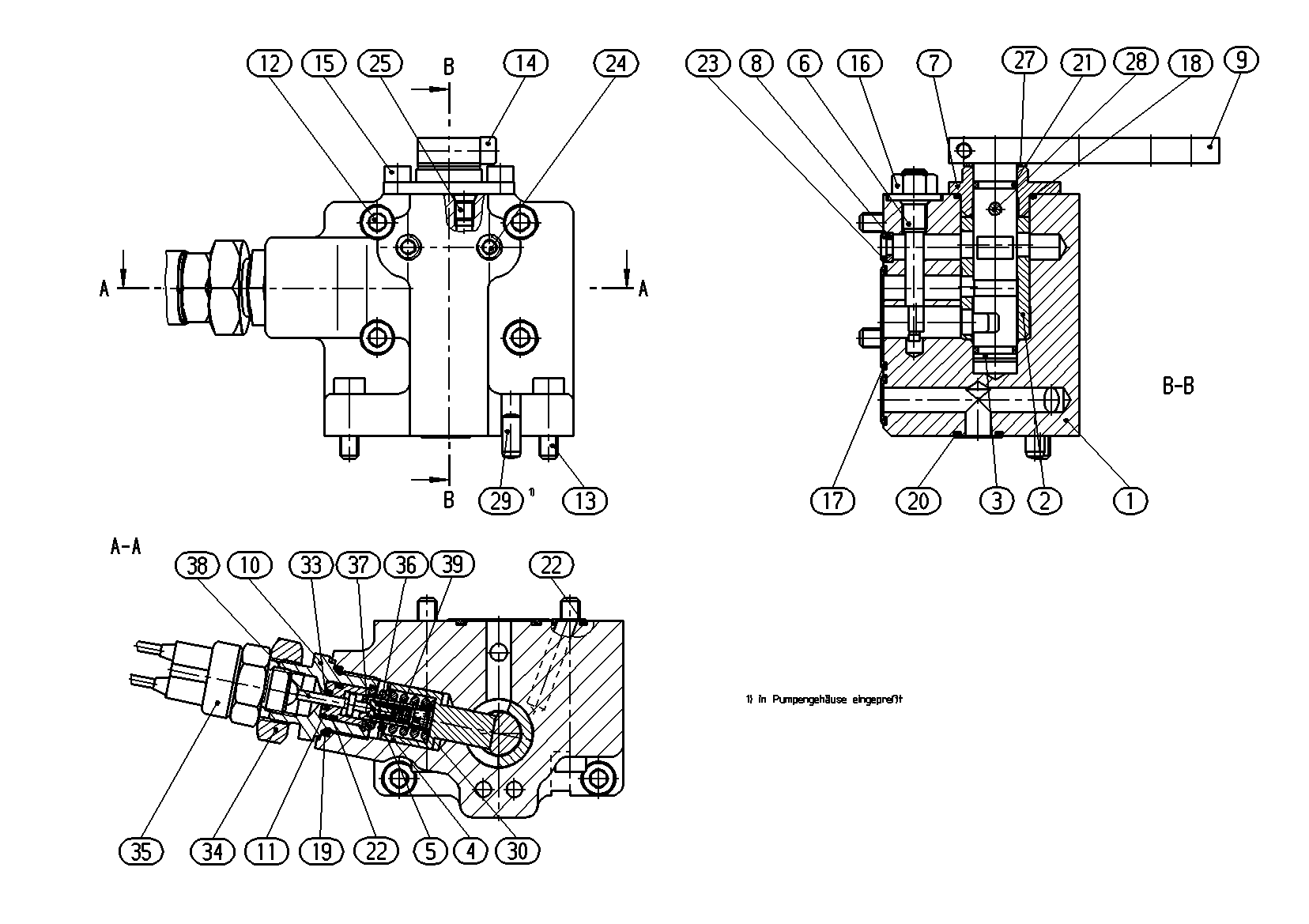

CONTROL MODULER909608451
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902041466 | HOUSING | 1 | ||
| R902027812 | CONTROL SLEEVE | 1 | ||
| R909651216 | CONTROL SHAFT | 1 | ||
| R909650254 | SPRING BUSH | 1 | ||
| R909421991 | COMPRESSION SPRING | 1 | ||
| R909426570 | ECCENTRIC PIN | 1 | ||
| R902076996 | COVER | 1 | ||
| R902033811 | RING | 1 | ||
| R909400523 | LEVER | 1 | ||
| R909444527 | NECK | 1 | ||
| R902013833 | SEAL BUSHING | 1 | ||
| R909083028 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083021 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083012 | SOCKET HEAD CAP SCREW | 1 | ||
| R909083183 | SOCKET HEAD CAP SCREW | 2 | ||
| R909152707 | SEALING NUT | 1 | ||
| R902600641 | O-RING | 1 | ||
| R909086250 | O-RING | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| R909086333 | O-RING | 2 | ||
| R909086178 | O-RING | 2 | ||
| R909085709 | O-RING | 3 | ||
| R909086380 | O-RING | 1 | ||
| R902601236 | PLUG | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153380 | SHIM RING | 1 | ||
| R909830413 | NEEDLE-ROLLER | 1 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| R902600705 | PLUG | 1 | ||
| R909086301 | O-RING | 1 | ||
| R909830212 | HEXAGON NUT | 1 | ||
| R909830731 | SWITCH | 1 | ||
| R902021496 | SPRING DISK | 1 | ||
| R902013929 | SPRING SLEEV | 1 | ||
| R902013832 | STOP PIN | 1 | ||
| R909412852 | COMPRESSION SPRING | 1 |
