Baugruppe

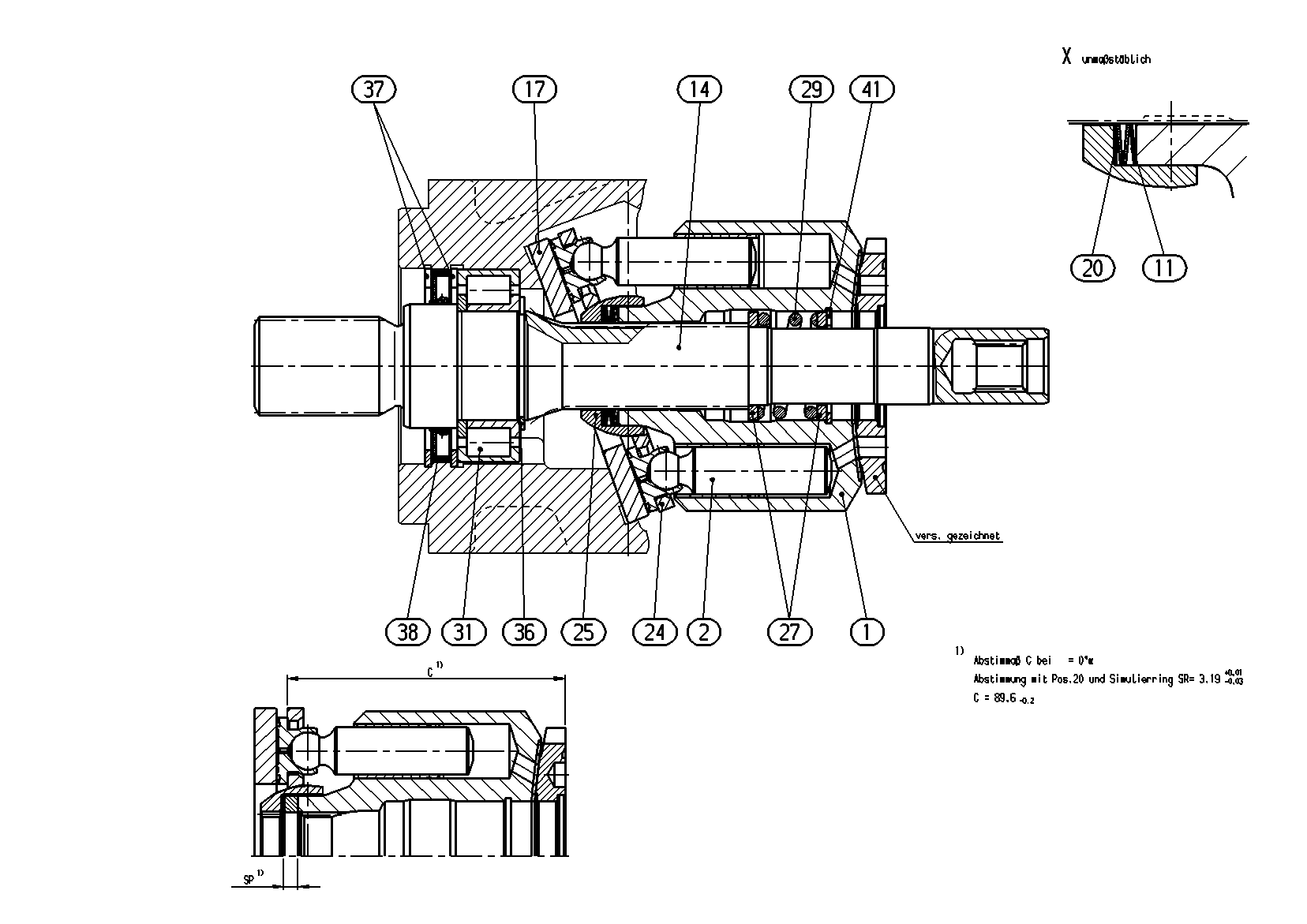

ROTARY GROUPR909608623
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909650902 | CYLINDER Stückliste der Baugruppe →L | 1 | |
| R909435304 | PISTON PAD | 9 | ||
| 11 | R902121235 | CUP-SPRING STACK | 1 | |
| R909651291 | DRIVE SHAFT | 1 | ||
| R902157450 | SLIDING DISC | 1 | ||
| R909432098 | SHIM RING | 1 | ||
| R909432099 | SHIM RING | 1 | ||
| R909432100 | SHIM RING | 1 | ||
| R909432101 | SHIM RING | 1 | ||
| R902205450 | RETAINING PLATE | 1 | ||
| R909432260 | RETAINING BALL | 1 | ||
| R909449756 | WASHER | 2 | ||
| R909449750 | COMPRESSION SPRING | 1 | ||
| R909153685 | CYL. ROLLER BEARING | 1 | ||
| R909083360 | RETAINING RING | 1 | ||
| R909832149 | RETAINING RING | 2 | ||
| R902601819 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909083397 | RETAINING RING | 1 |
