Baugruppe

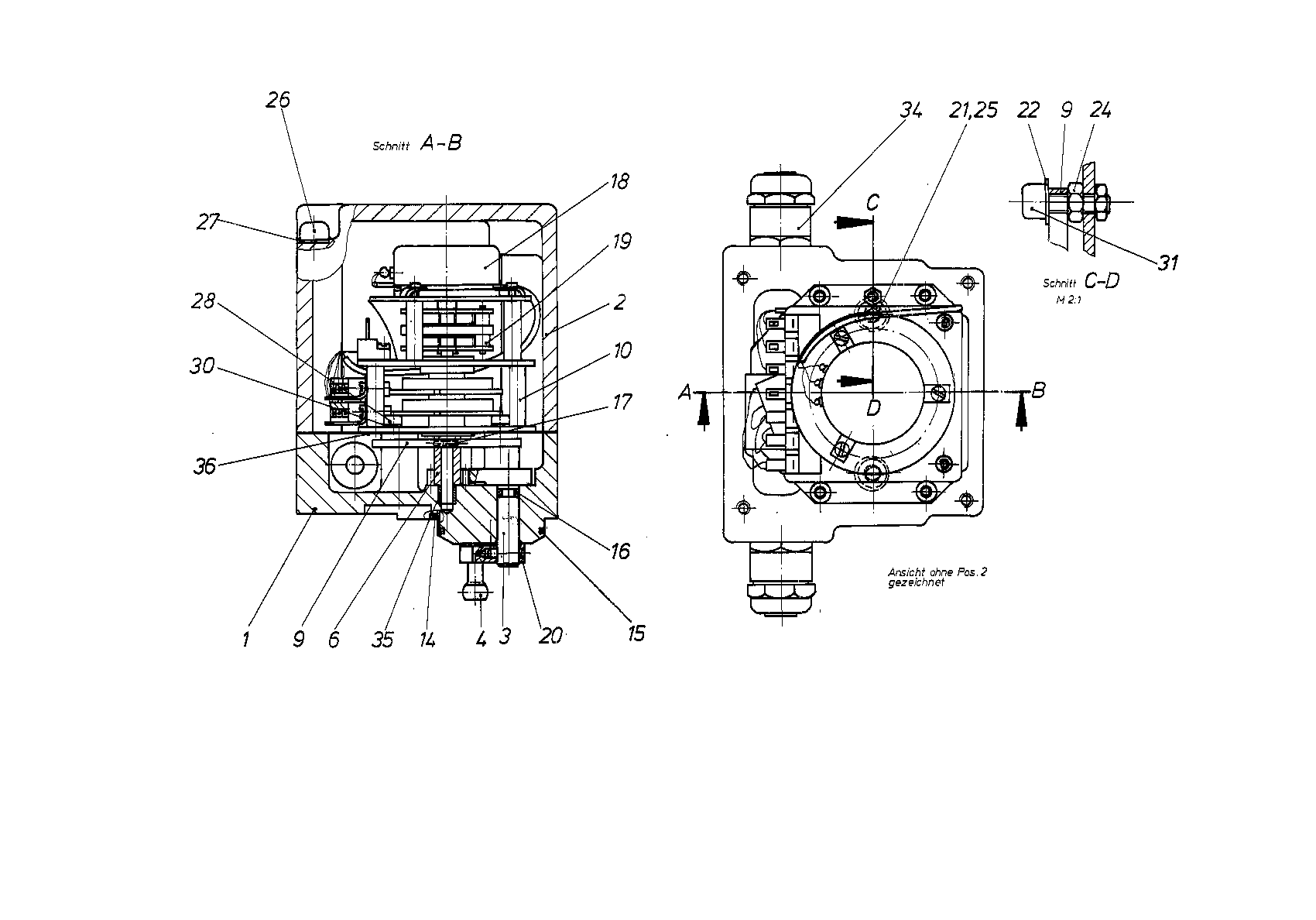

SWITCH ASSEMBLYR909608827
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909425528 | HOUSING | 1 | |
| 2 | R902254642 | HOUSING COVER | 1 | |
| 3 | R909425351 | ADJUSTING SHAFT | 1 | |
| R909449324 | LEVER | 1 | ||
| 6 | R909401698 | TOOTHED WHEEL | 1 | |
| 9 | R909078217 | SPIRAL SPRING | 1 | |
| R902601900 | ROTARY ANGLE INDICATOR | 1 | ||
| 14 | R909086498 | O-RINGD | 2 | |
| 15 | R902600641 | O-RINGD | 1 | |
| R909154017 | O-RINGD | 1 | ||
| R913017234 | SLOTTED SPRING PIN | 1 | ||
| R909156515 | POTENTIOMETER | 1 | ||
| R902602724 | COUPLING | 1 | ||
| 20 | R909154427 | SLOTTED SPRING PIN | 1 | |
| 21 | R909084302 | SEAL RINGD | 2 | |
| 22 | R902190925 | WASHER | 1 | |
| 24 | R909083607 | HEXAGON NUT | 1 | |
| 25 | R909083018 | SOCKET HEAD CAP SCREW | 2 | |
| R909153439 | SOCKET HEAD CAP SCREW | 4 | ||
| 27 | R909083248 | SPRING LOCK WASHER | 4 | |
| R909083001 | SOCKET HEAD CAP SCREW | 4 | ||
| 30 | R909083247 | SPRING LOCK WASHER | 4 | |
| 31 | R909086065 | SOCKET HEAD CAP SCREW | 1 | |
| 34 | R909086508 | THREADED FASTENER | 2 | |
| 35 | R909156565 | DU-BUSHING | 1 | |
| 36 | R909417669 | SEALD | 1 |
