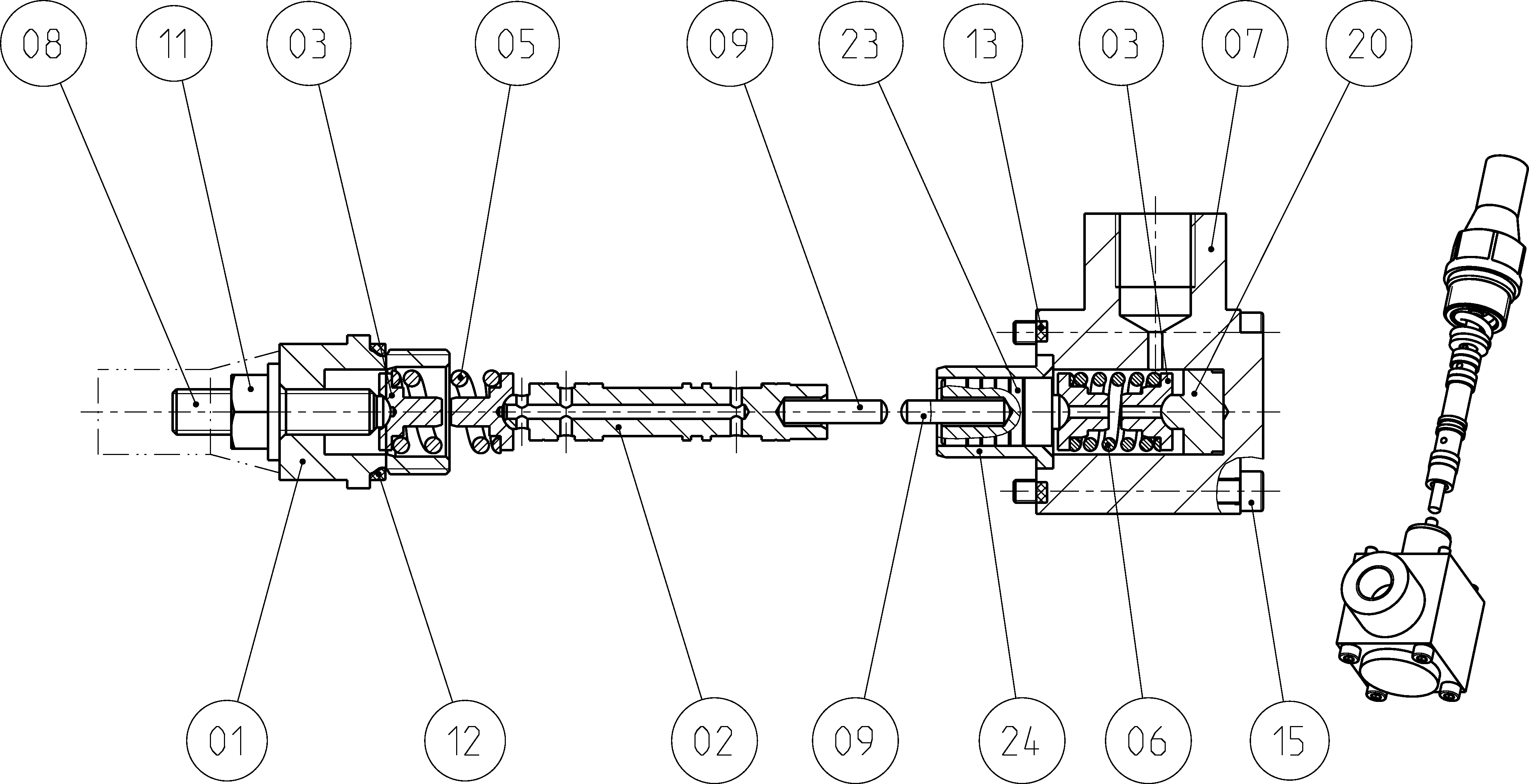

Baugruppe
CONTROL ELEMENTR909609541
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909440779 | SCREW PLUG | 1 | ||
| R902022771 | CONTROL PISTON | 1 | ||
| R909436991 | SPRING BOLT | 2 | ||
| 4 | R909436839 | SPRING BOLT | 2 | |
| 5 | R909436795 | COMPRESSION SPRING | 1 | |
| R902012047 | COMPRESSION SPRING | 1 | ||
| 7 | R909921295 | CONNECTING PIECE | 1 | |
| 8 | R909440424 | SETSCREW | 1 | |
| 9 | R902237857 | BOLT | 2 | |
| R909152707 | SEALING NUTD | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909083764 | O-RINGD | 1 | ||
| R909151498 | SOCKET HEAD CAP SCREW | 4 | ||
| R909449633 | CENTERING BOLT | 1 | ||
| R909921947 | CONTROL PISTON | 1 | ||
| R909921294 | BUSHING | 1 |
