Baugruppe

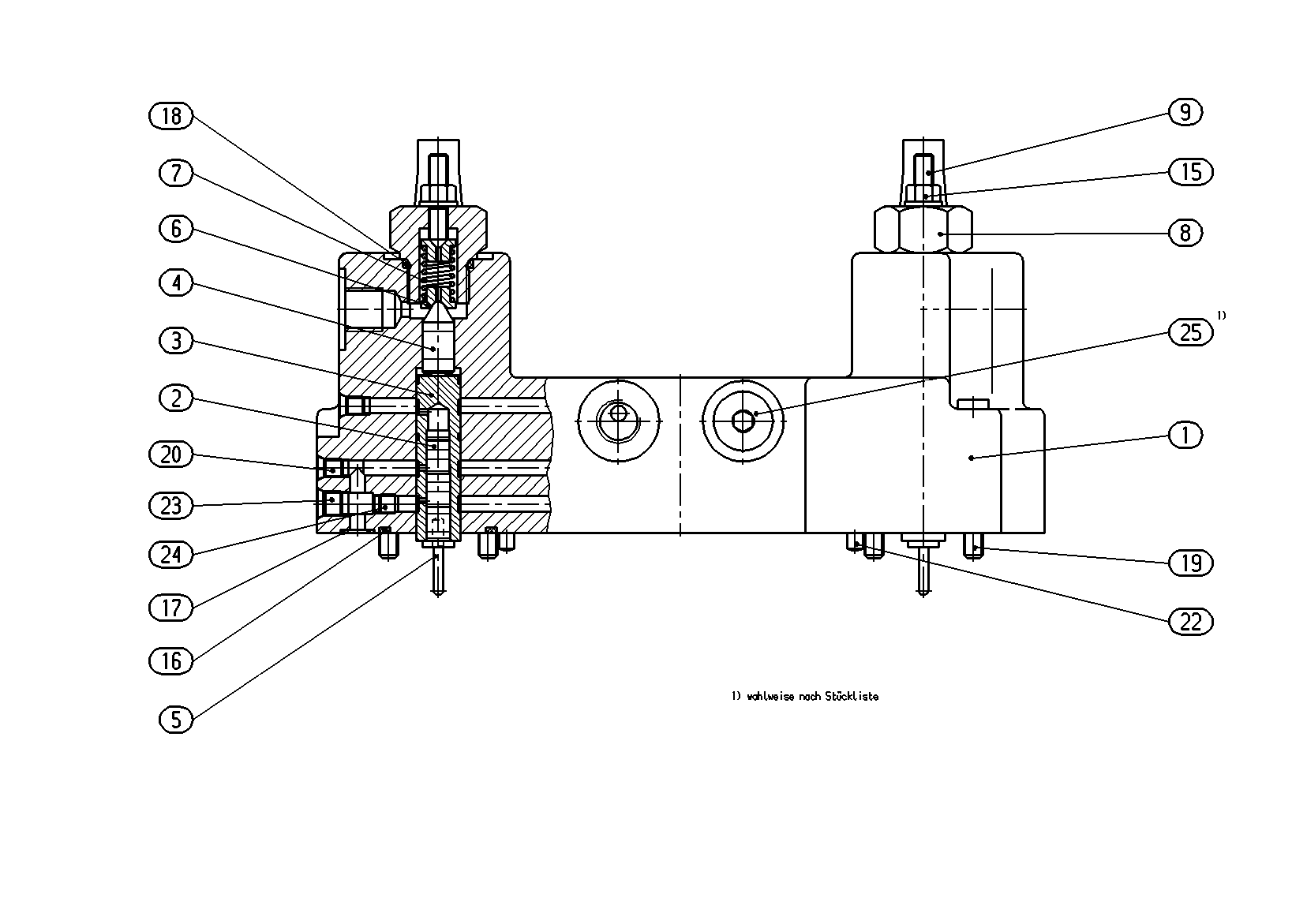

CONTROL UNITR909610431
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909650812 | CONTROL HOUSING | 1 | |
| R909651052 | CONTROL PISTON | 2 | ||
| R909651051 | CONTROL SLEEVE | 2 | ||
| R909651053 | POSITIONING PISTON | 2 | ||
| R902045222 | PIN | 2 | ||
| R909430649 | SPRING DISK | 4 | ||
| R909650259 | COMPRESSION SPRING | 2 | ||
| R909436380 | SCREW PLUG | 2 | ||
| R909420991 | SETSCREW | 2 | ||
| R909152425 | SEALING NUTD | 2 | ||
| R909086730 | O-RINGD | 2 | ||
| R909086498 | O-RINGD | 4 | ||
| R909083757 | O-RINGD | 2 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 6 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909084149 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902600705 | PLUG | 1 |
