Baugruppe

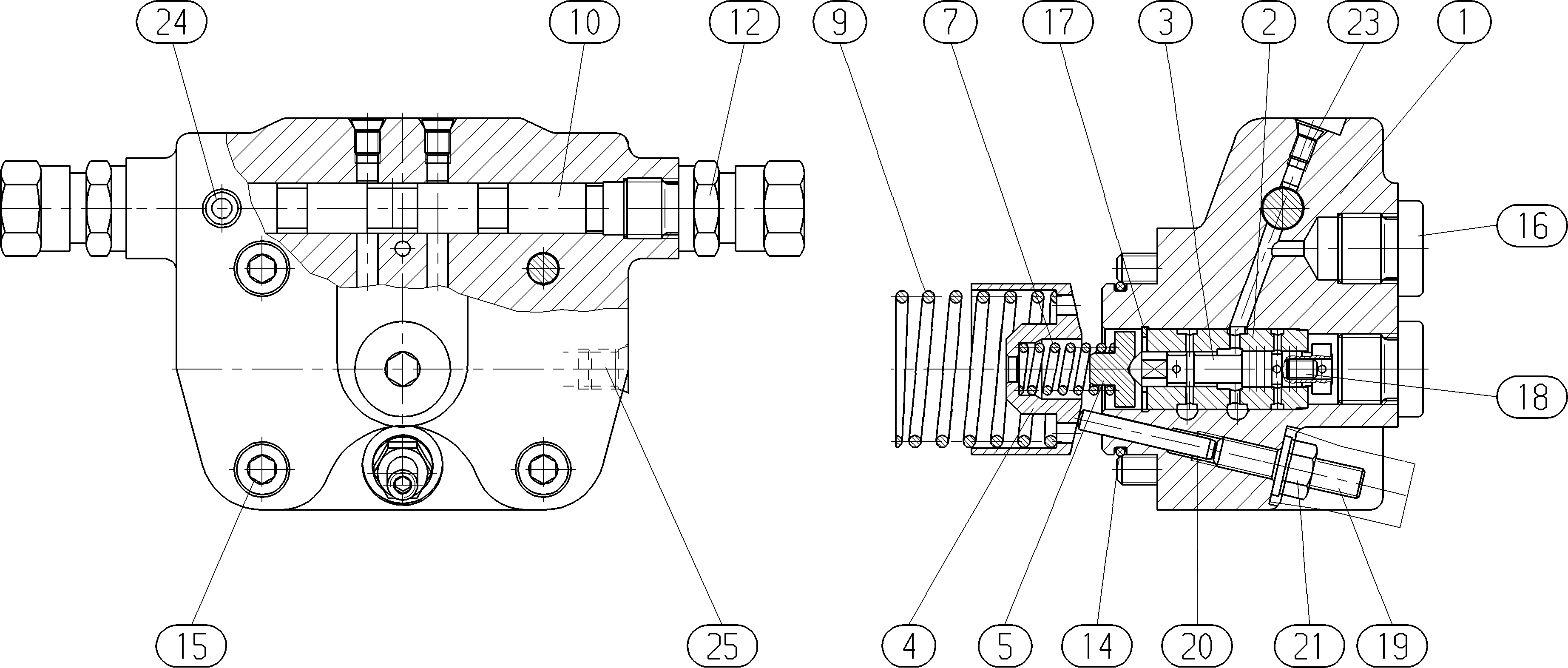

CONTROL PARTR909610937
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909921572 | CONTROL HOUSING | 1 | ||
| R909420570 | CONTROL SLEEVE | 1 | ||
| R902006646 | CONTROL PISTON | 1 | ||
| R909651118 | ADJUSTING BUSHING | 1 | ||
| R909921339 | SPRING DISK | 1 | ||
| 7 | R909921419 | COMPRESSION SPRING | 1 | |
| 9 | R909651116 | COMPRESSION SPRING | 1 | |
| R909435792 | SLIDE | 1 | ||
| R909409598 | THREADED FASTENER | 2 | ||
| R909157562 | O-RINGD | 1 | ||
| 15 | R910420794 | SOCKET HEAD CAP SCREW | 4 | |
| R909153930 | SCREW PLUGD | 2 | ||
| R909083381 | RETAINING RING | 1 | ||
| R902216406 | PLUG | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087756 | STRAIGHT PIN | 1 | ||
| 21 | R909152425 | SEALING NUTD | 1 | |
| R900078091 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 |
