Baugruppe

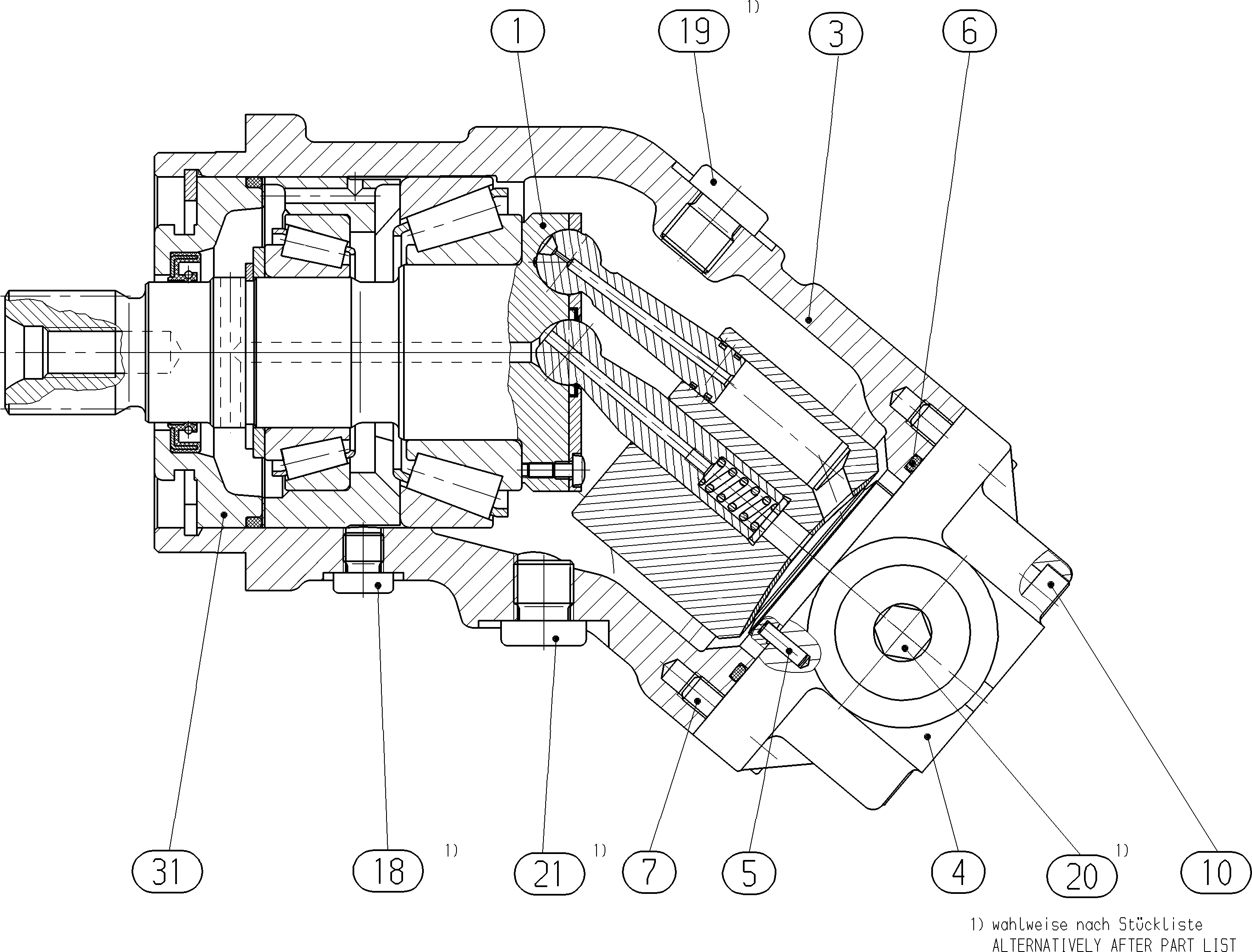

AXIAL-PISTON PUMPR909611182
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902031959 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902042345 | HOUSING | 1 | ||
| R909650819 | CONNECTION PLATE | 1 | ||
| R909084134 | STRAIGHT PIN | 1 | ||
| R902600656 | O-RINGD | 1 | ||
| R909083019 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083026 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154938 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R902138347 | LOCKING RING Stückliste der Baugruppe →L | 1 | ||
| 98 | R902002214 | SEAL KIT | 1 |
